Inflatable Restraint Side Impact Module

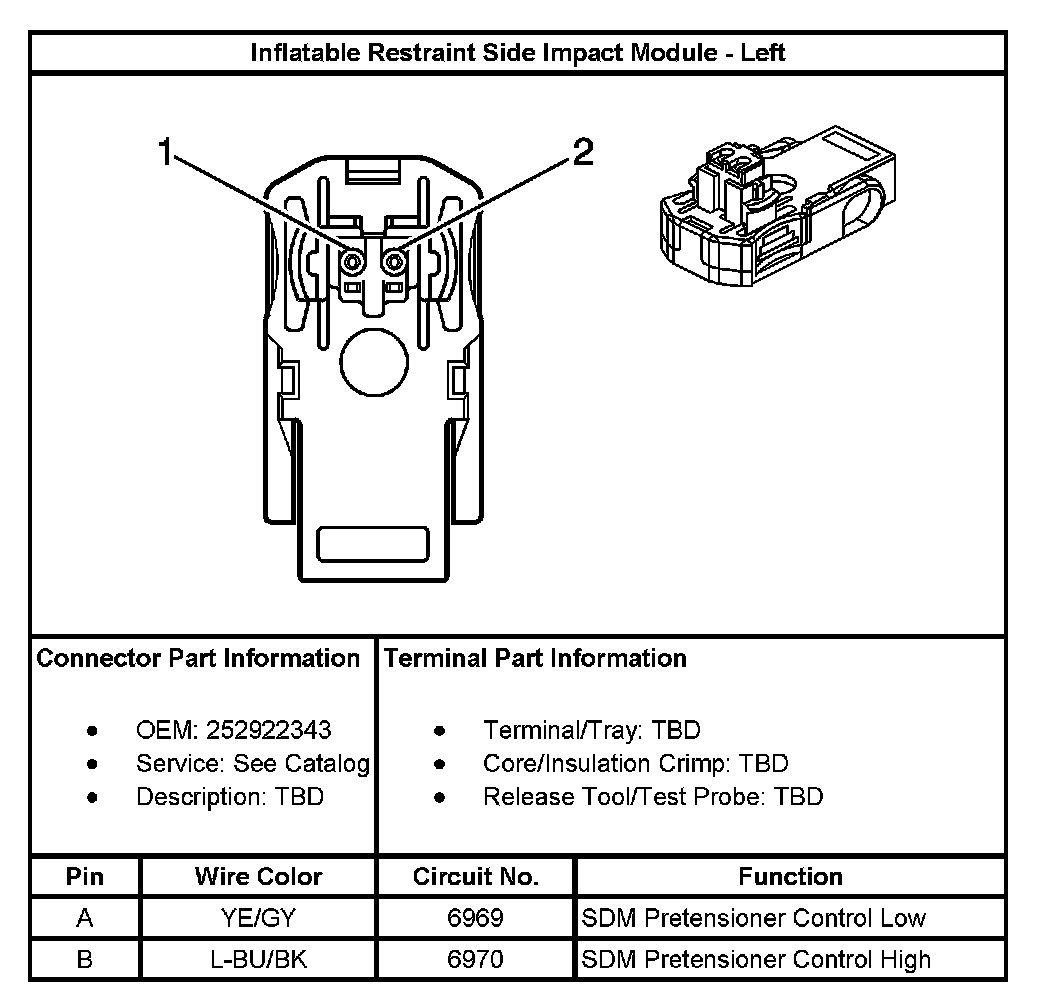

Inflatable Restraints Side Impact Module - Left:

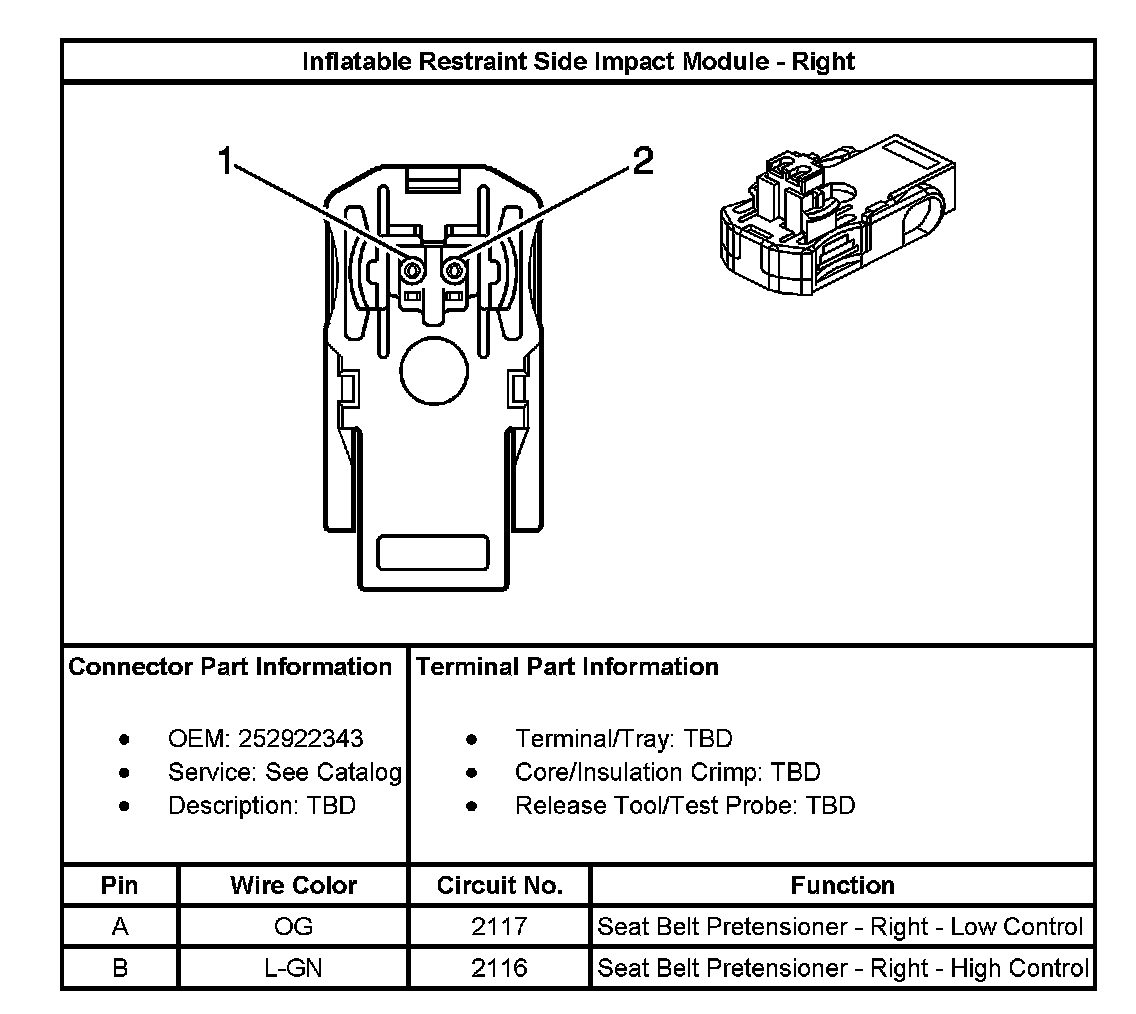

Inflatable Restraints Side Impact Module - Right:
