Parking Lamp
Parking Lamp
Park Lamp - Left Middle (With RPO Code V4U):

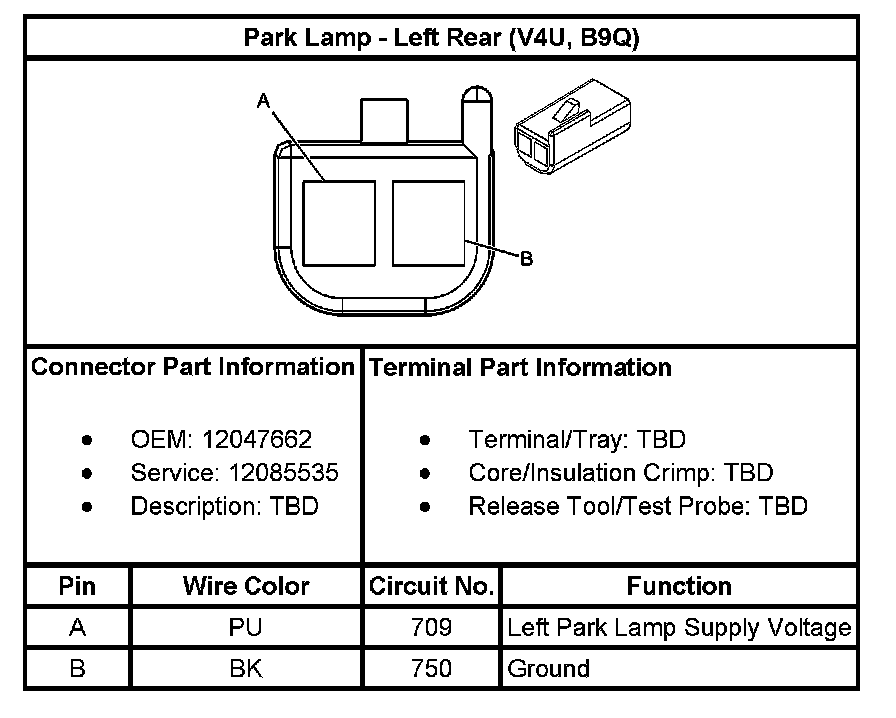

Park Lamp - Left Rear (With RPO Code V4U, B9Q):

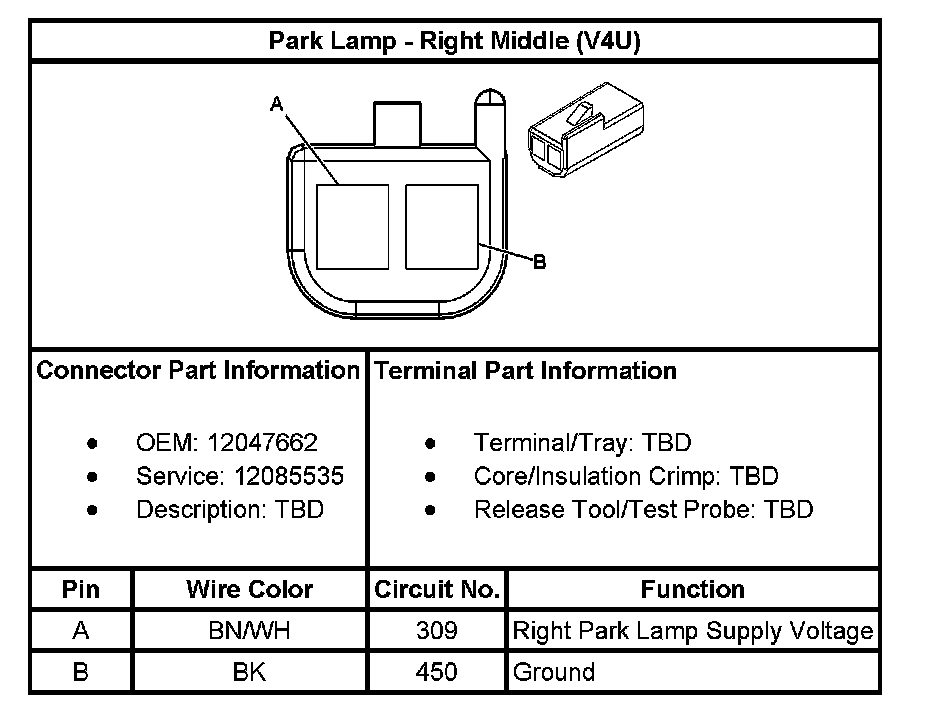

Park Lamp - Right Middle (With RPO Code V4U):

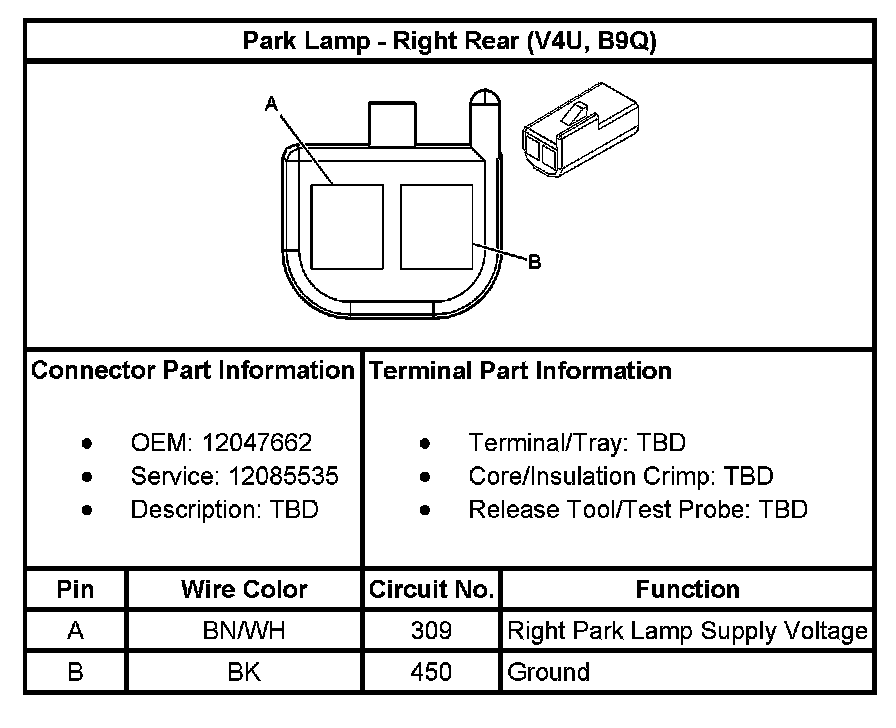

Park Lamp - Right Rear (With RPO Code V4U, B9Q):
