Radiator Cooling Fan
Radiator Cooling Fan
Cooling System
Connector End Views
Cooling Fan

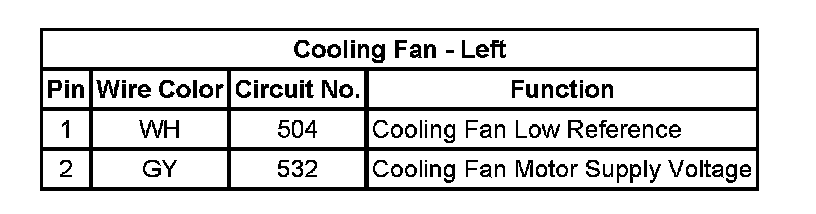

Cooling Fan - Left:

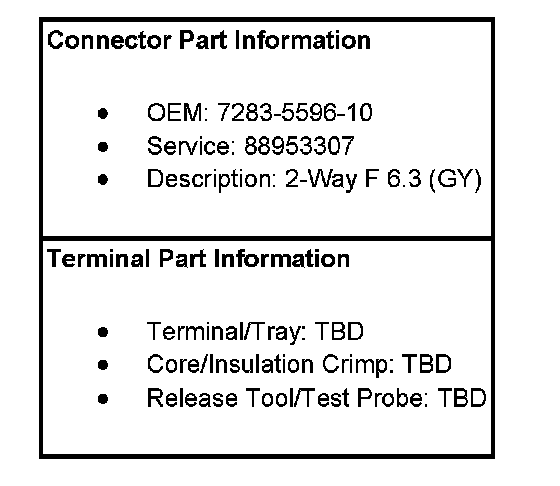

Cooling Fan - Left:

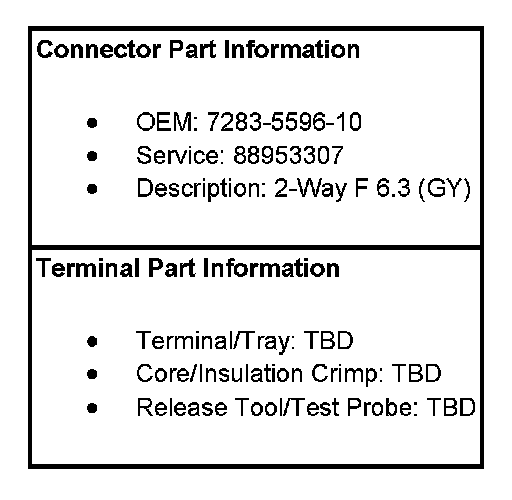

Cooling Fan - Right:
Cooling Fan - Right:
