Trunk Lamp
Trunk Lamp

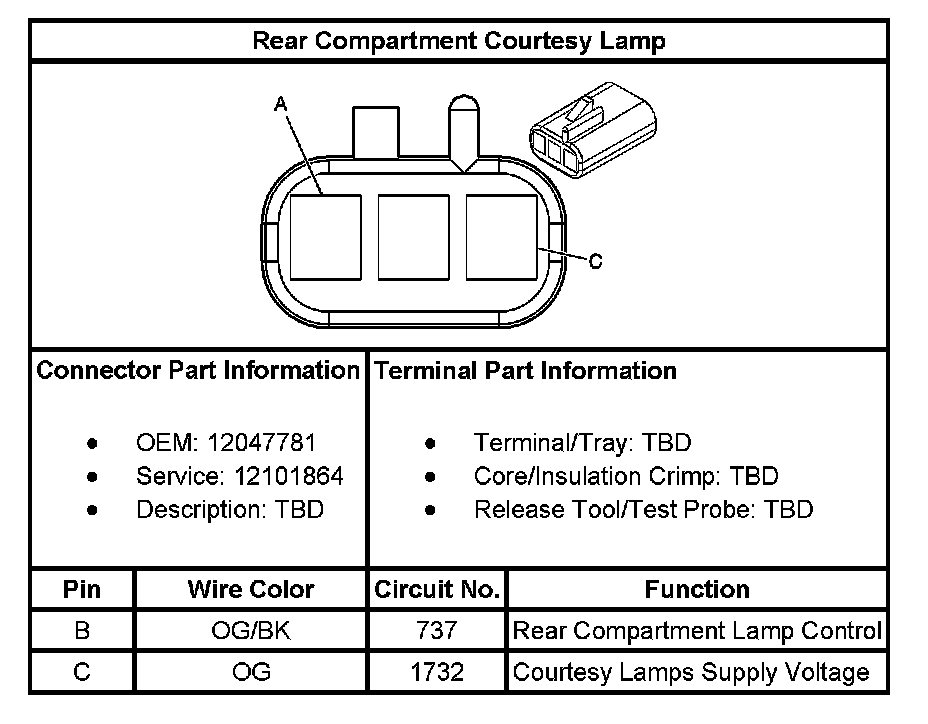

Rear Compartment Courtesy Lamp:

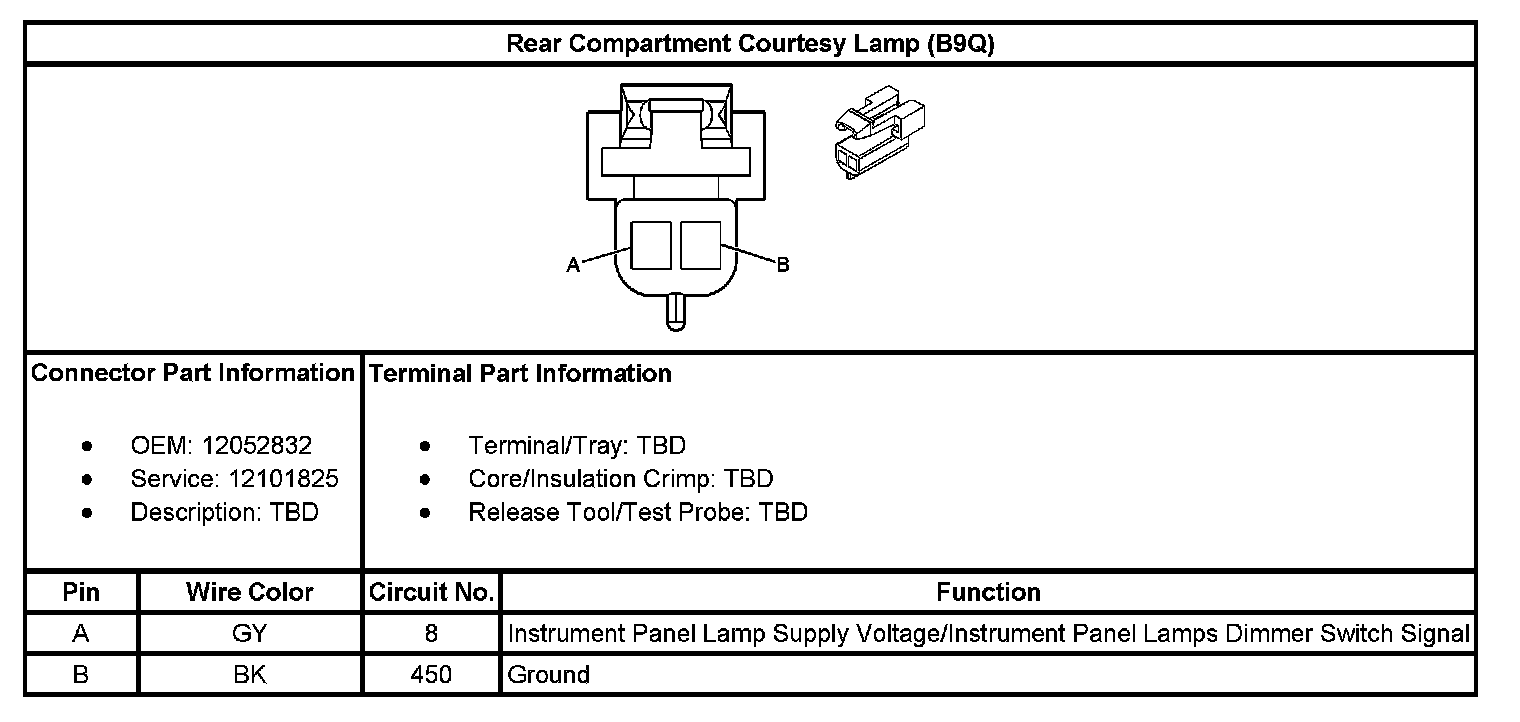

Rear Compartment Courtesy Lamp (With RPO Code B9Q):
