Vanity Lamp
Vanity Lamp

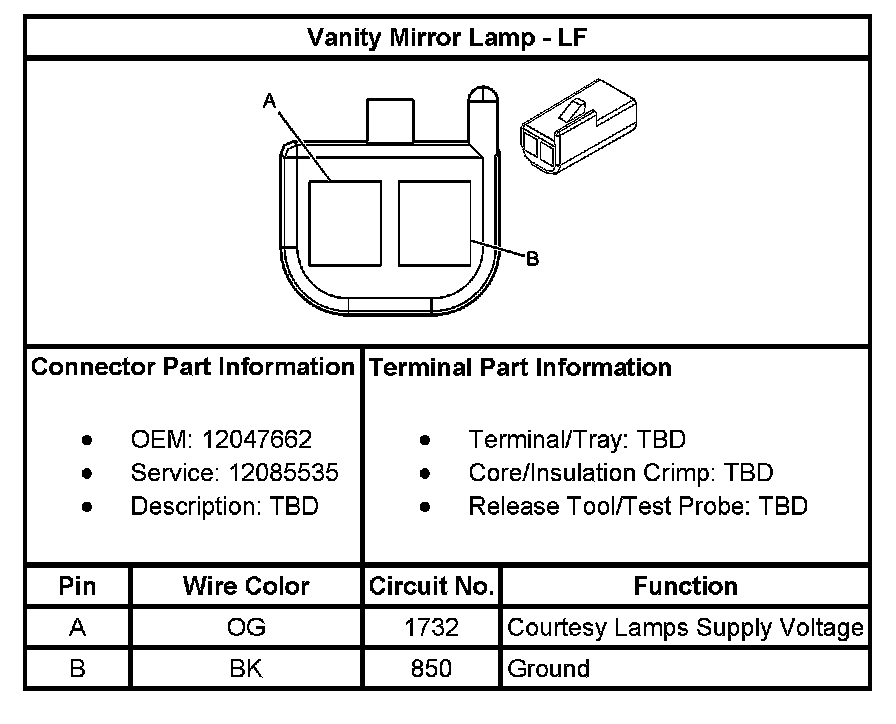

Vanity Mirror Lamp - LF:

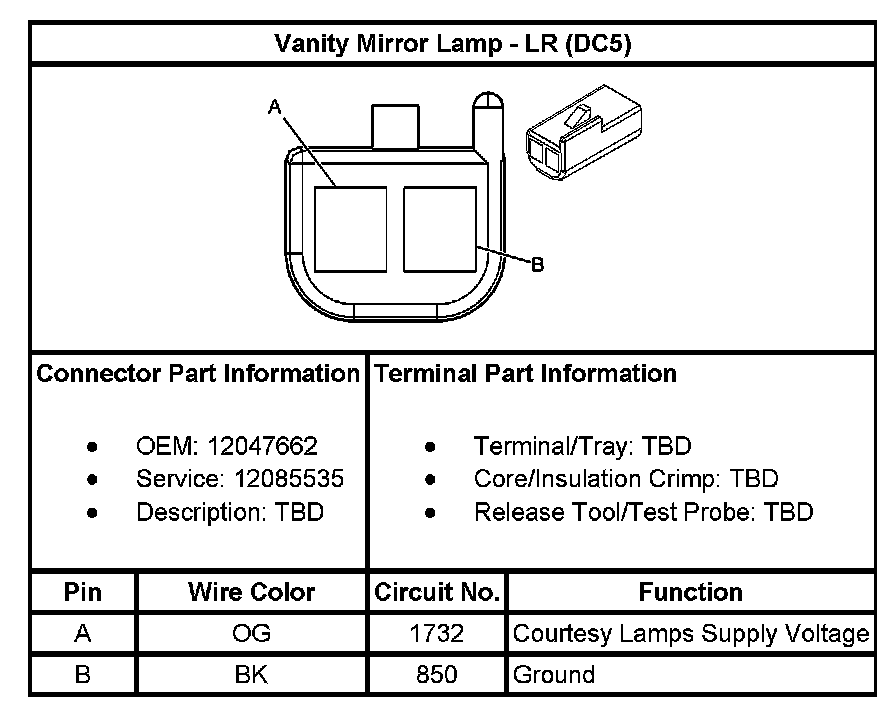

Vanity Mirror Lamp - LR (With RPO Code DC5):
Vanity Mirror Lamp - RF:

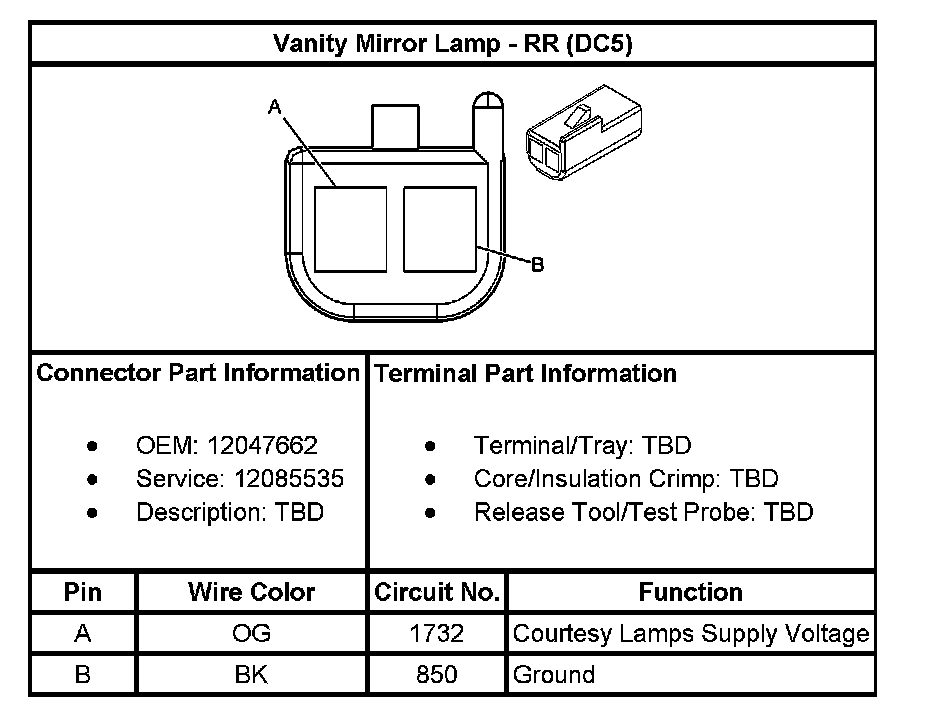

Vanity Mirror Lamp - RR (With RPO Code DC5):
