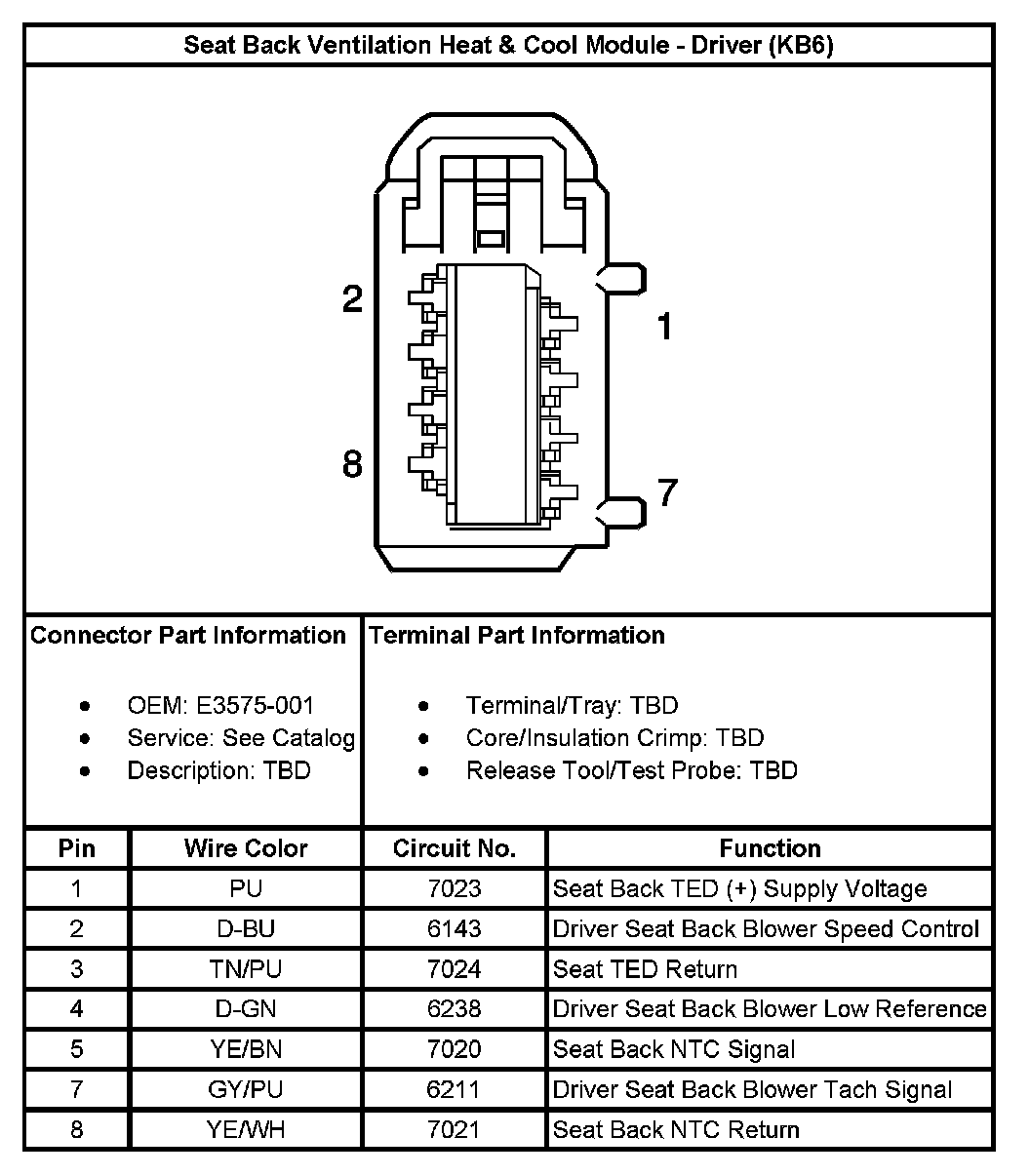

Seat Back Ventilation Heat & Cool Module - Driver (With RPO Code KB6):
Seat Back Ventilation Heat & Cool Module - Front Passenger (With RPO Code KB6):
