Transmission Pressure Test Port: Service and Repair

Oil Pressure Test Plug Replacement

Removal Procedure
1. Remove the throttle body air inlet duct.

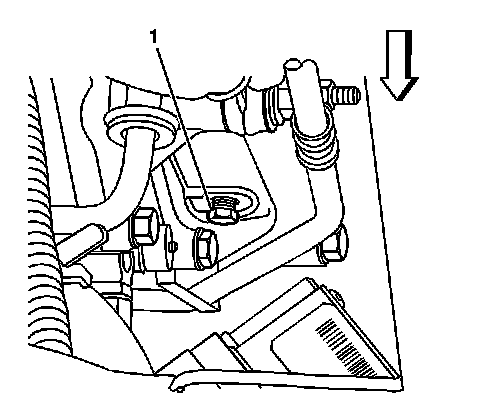

2. Remove the oil pressure test plug (1).

Installation Procedure





1. Notice: Refer to Fastener Notice in Service Precautions.

Install the oil pressure test plug (1).
Tighten the oil pressure test plug to 12 Nm (106 inch lbs.).
2. Install the throttle body air inlet duct.
