15. Camshaft Cover Removal - Right Side

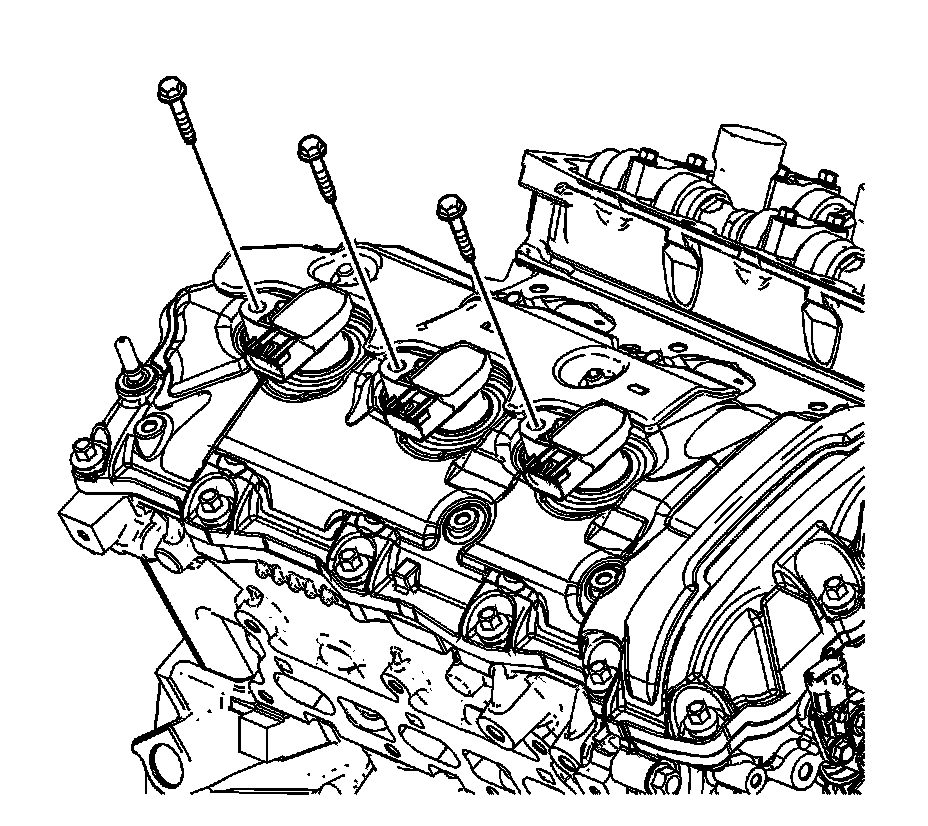

Camshaft Cover Removal - Right Side




1. Remove the ignition coil bolts.




2. Remove the ignition coils.




3. Remove the right camshaft cover bolts.
4. Remove and discard the camshaft cover grommets and camshaft cover bolts if they are serviced with the grommet.




5. Remove the right camshaft cover from the right cylinder head.
