Air Bypass Valve Actuator, Supercharger

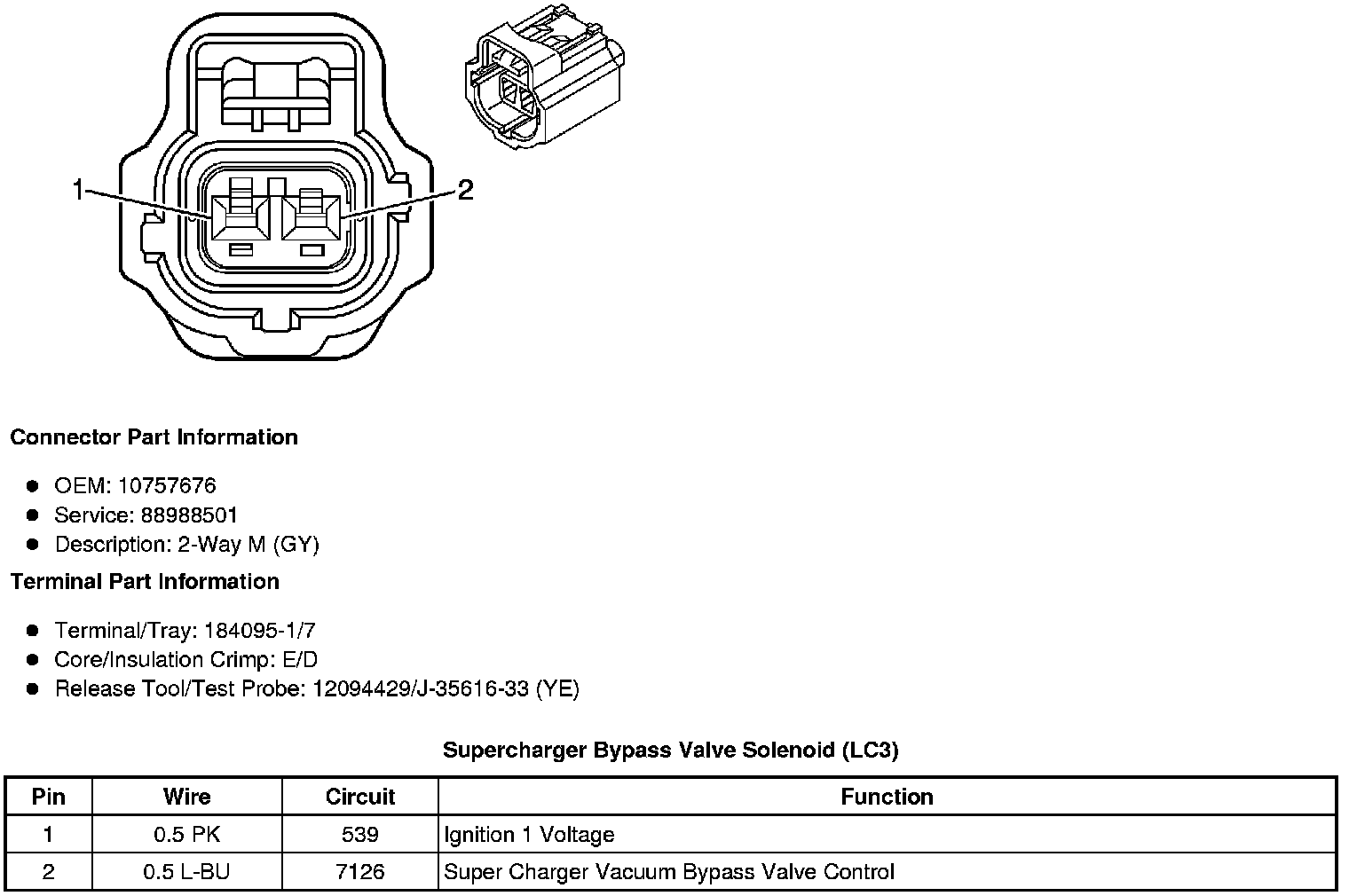

Component Connector End Views

Supercharger Bypass Valve Solenoid (LC3)
