26. Oil Pump Removal




Oil Pump Removal

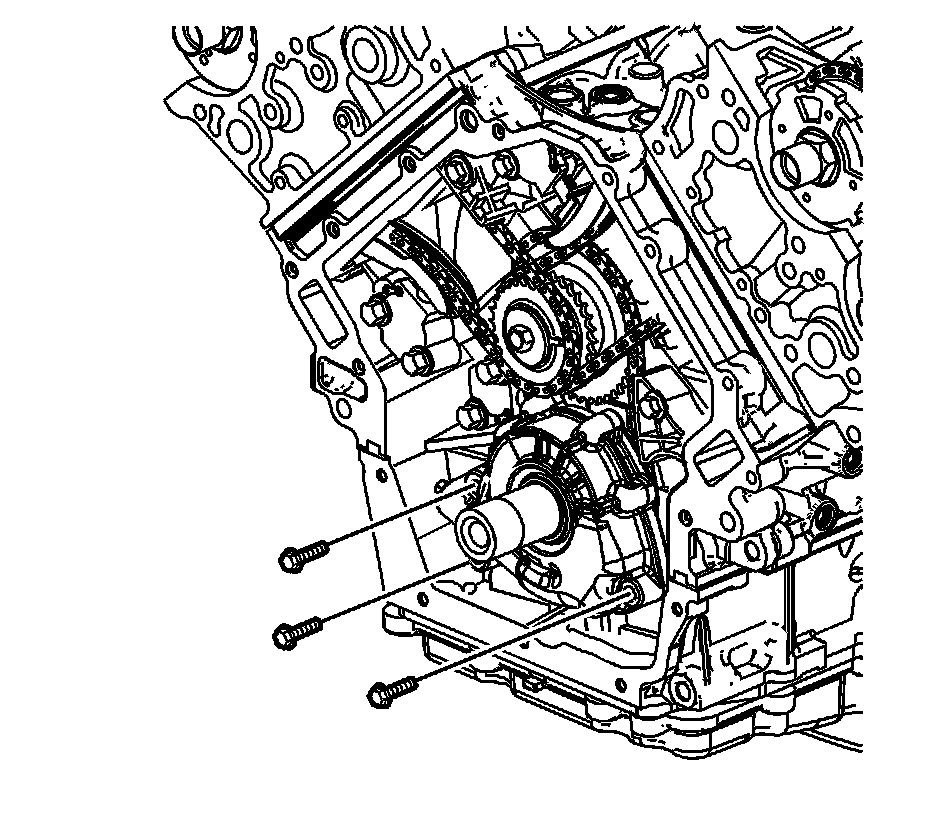

1. Remove the oil pump bolts.

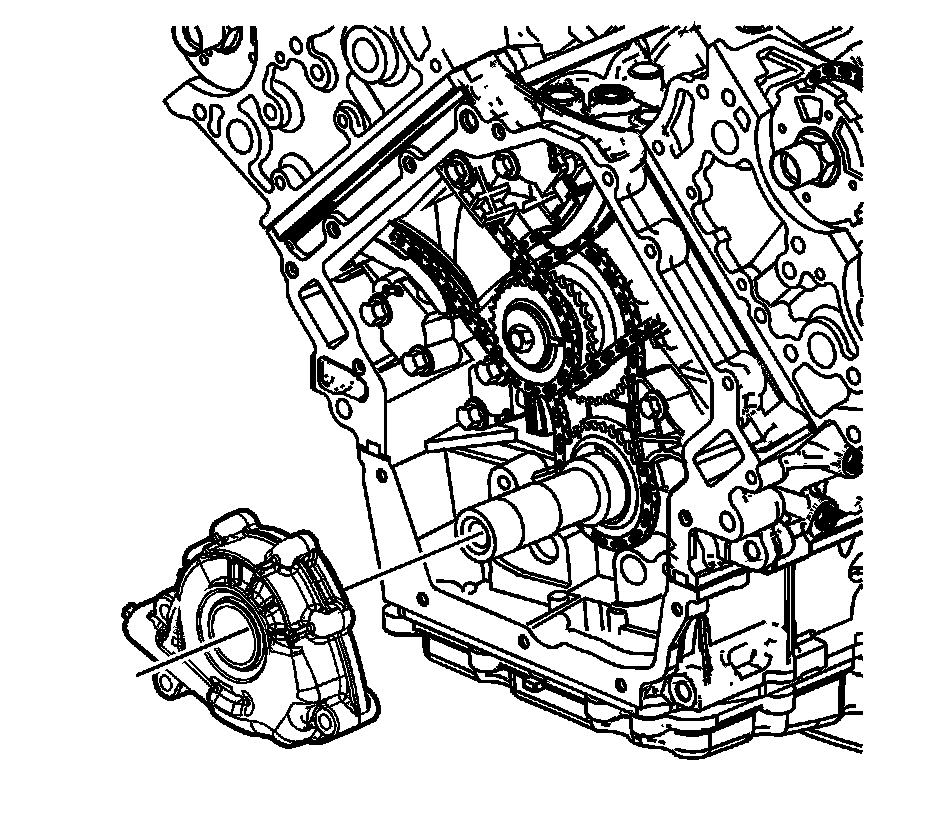

2. Remove the oil pump.

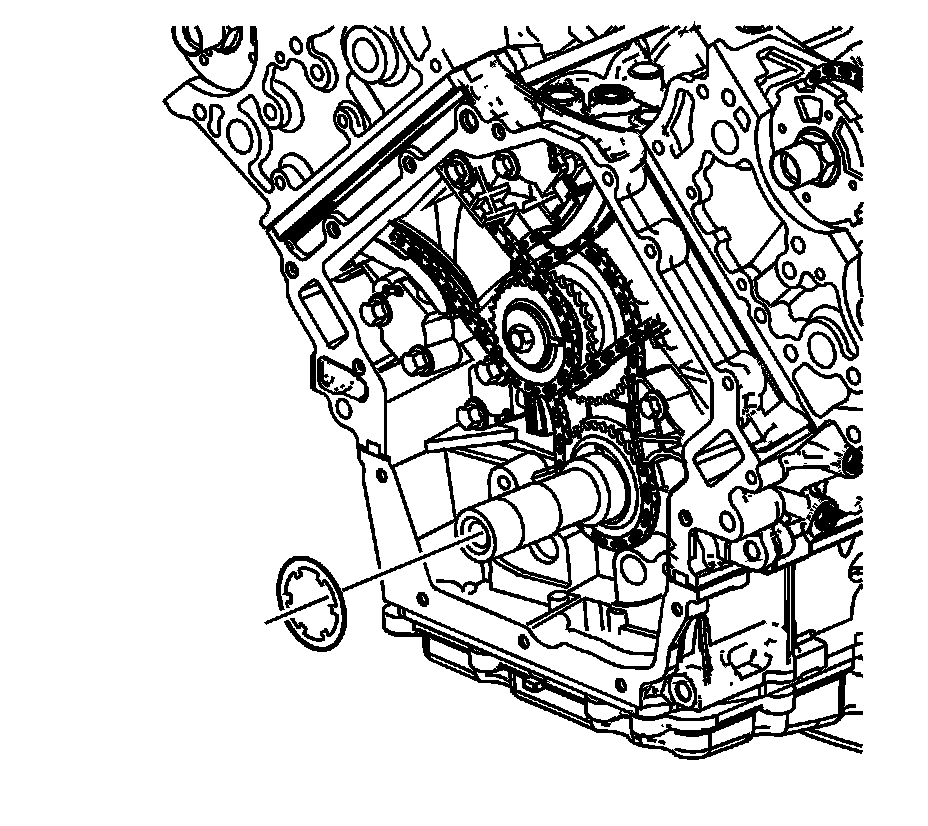

3. Remove the crankshaft sprocket to oil pump drive friction washer.
