Service Option Label - Information
Number: 84-21Section: 0A (XIV)
Date: Nov., 1983
Subject: SERVICE OPTION LABEL INFORMATION
Model and Year: 1984 IMPALA, CAPRICE, CAMARO, MONTE
CARLO, CAPRICE CLASSIC AND CELEBRITY STATION WAGONS, EL CAMINO, CORVETTE, CELEBRITY, CAVALIER, CHEVETTE AND CITATION
TO: ALL CHEVROLET DEALERS
Because of numerous requests from GM dealer organizations, all 1984 models will have a SERVICE OPTION LABEL installed.
The label will provide proper identification of vehicle equipment to assist dealers in servicing and determining replacement parts for GM customers. Included will be regular production options (RPO's) as well as standard and mandatory options. The label will be affixed to the inside of each passenger car vehicle at the assembly plant. Installation locations and user instructions have been provided to your parts department.
A booklet listing each option code and name has been mailed to all GM dealers by WDDGM.
The attached figures will provide you typical locations of these labels as identified by car series.

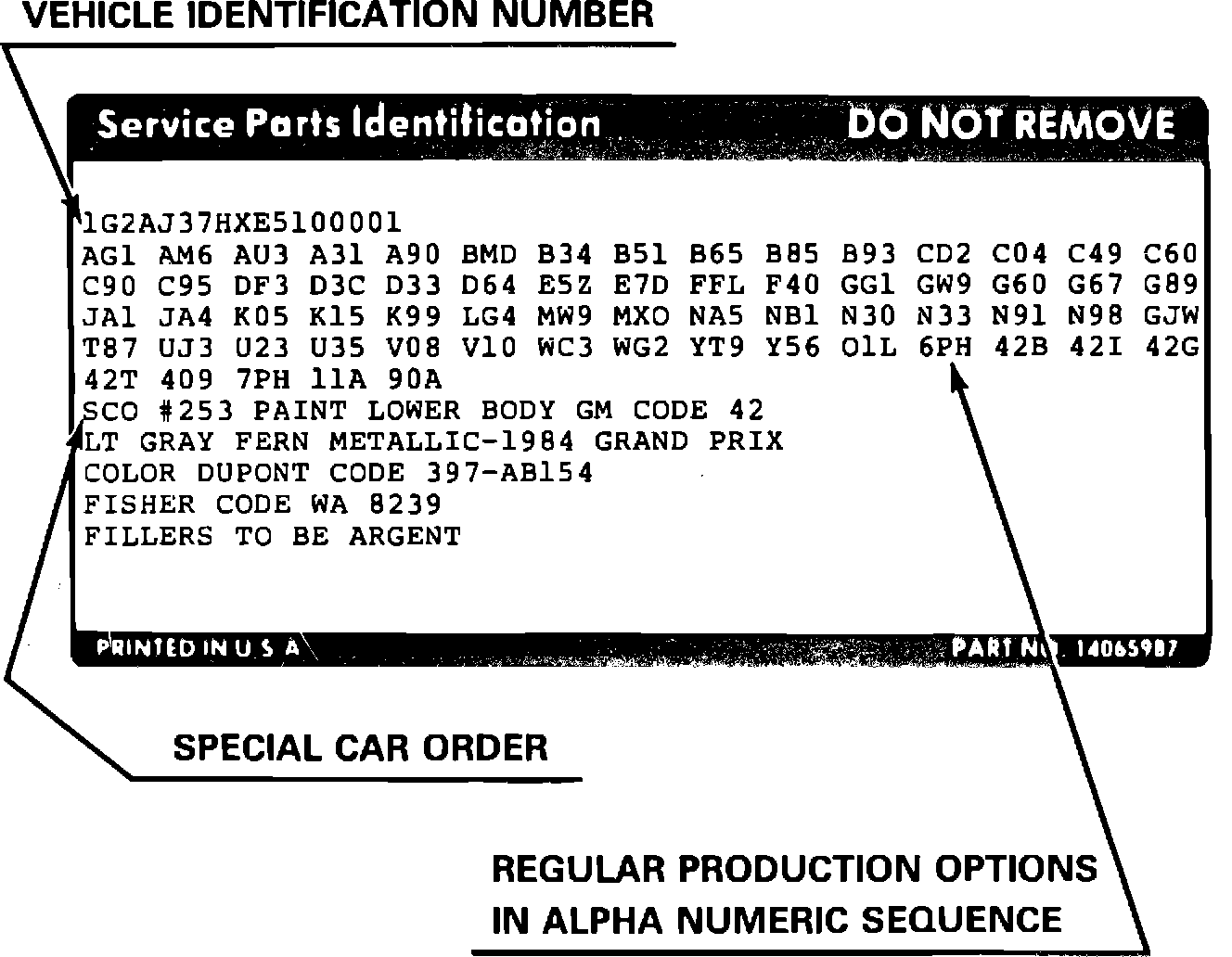

SERVICE PARTS IDENTIFICATION LABEL:
SERVICE PARTS IDENTIFICATION LABEL

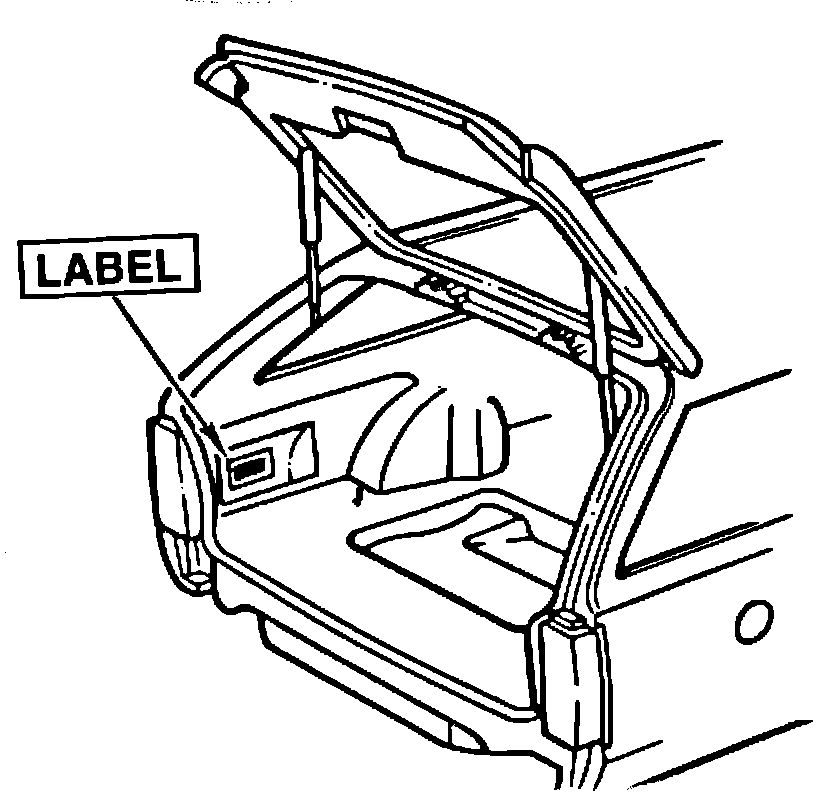

TYPICAL CELEBRITY, CAVALIER, CHEVETTE ANDCITATION:
TYPICAL CELEBRITY, CAVALIER, CHEVETTE AND
CITATION

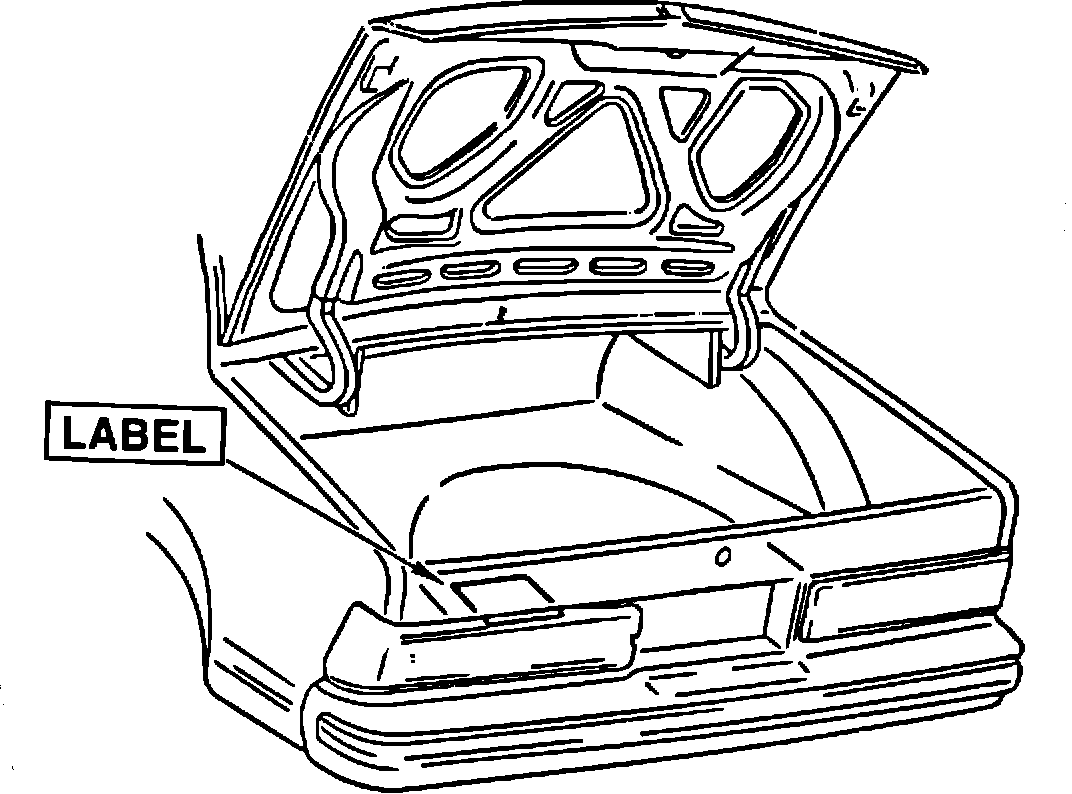

TYPICAL IMPALA, CAPRICE, MALIBU ANDMONTE CARLO SERIES:
TYPICAL IMPALA, CAPRICE, MALIBU AND
MONTE CARLO SERIES

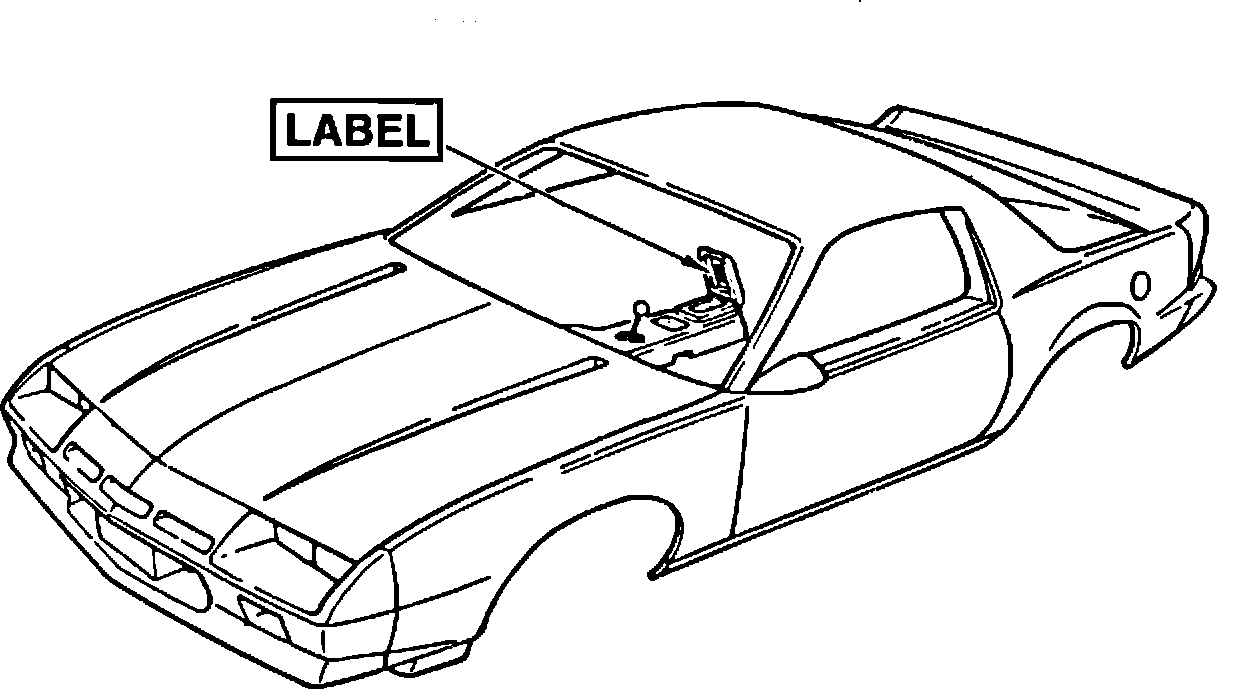

TYPICAL CAMARO SERIES:
TYPICAL CAMARO SERIES

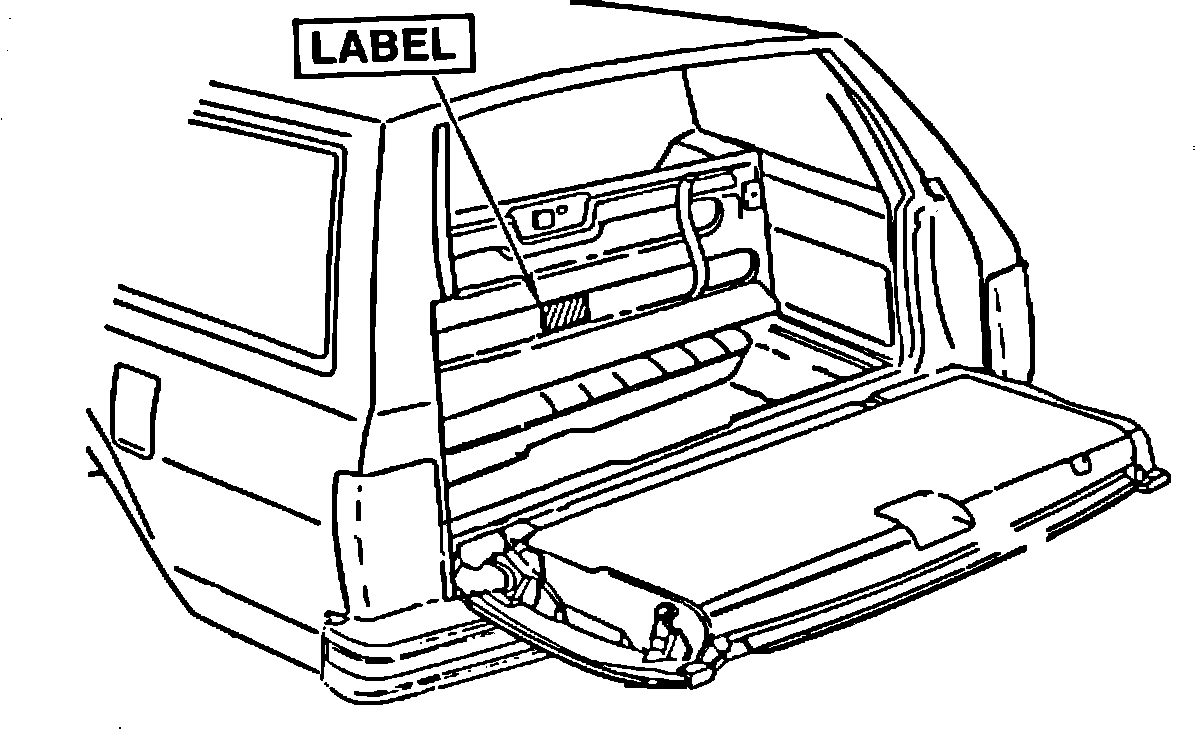

TYPICAL CAPRICE CLASSIC WAGONS:
TYPICAL CAPRICE CLASSIC WAGONS
TYPICAL CELEBRITY WAGONS:
TYPICAL CELEBRITY WAGONS

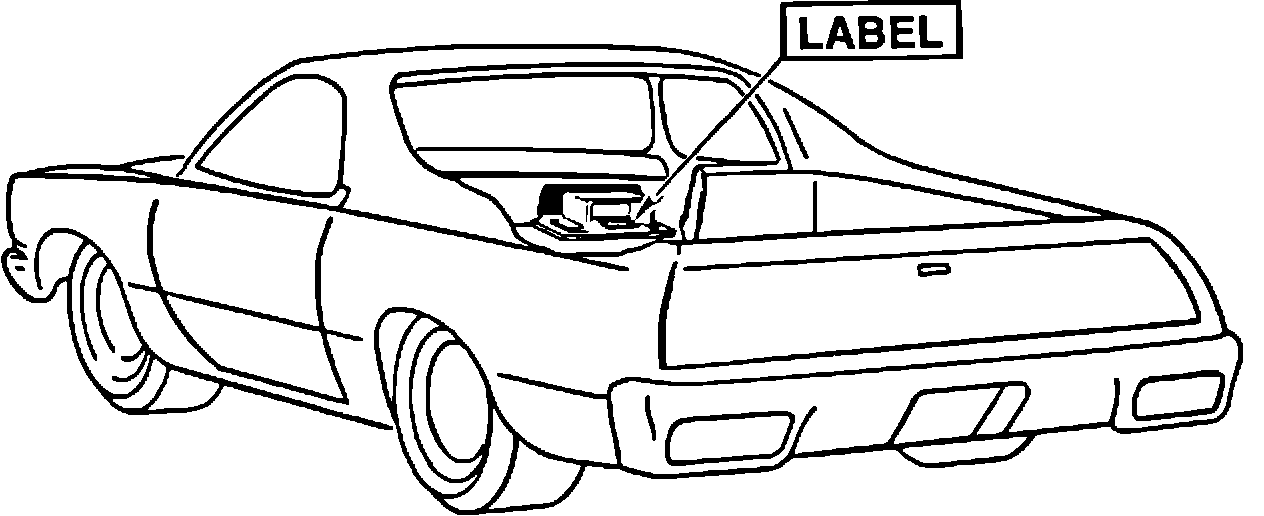

EL CAMINO TRUCKS:
EL CAMINO TRUCKS

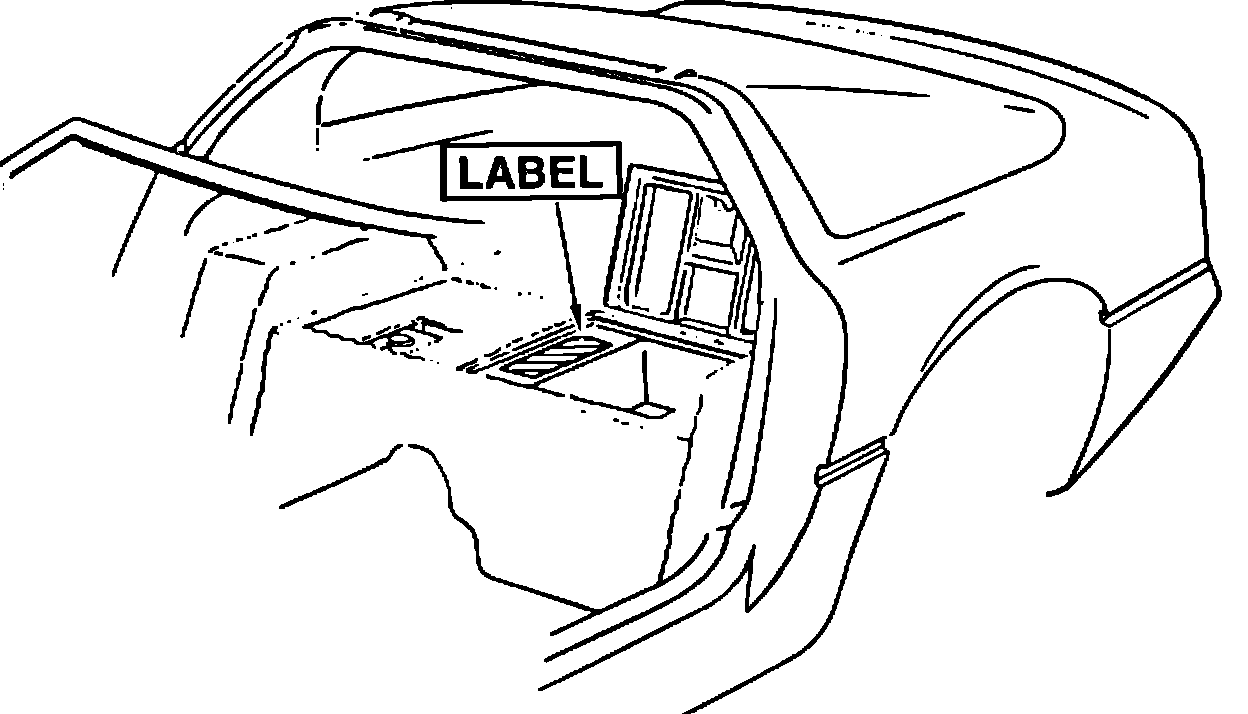

CORVETTE:
CORVETTE
