Electronic Spark Control Module

LH Front Of Dash, Near Brake Master Cylinder

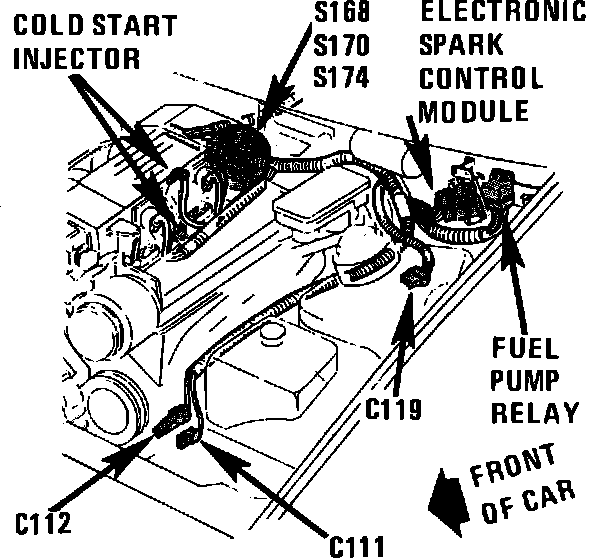

Top Rear Of Fuel Injected V8-305 Engine:




LH Front Of Dash, Near Brake Master Cylinder

Applicable to: 1984-85
