Logic Flow Chart: 1984-86 VIN D (1.8L Diesel)

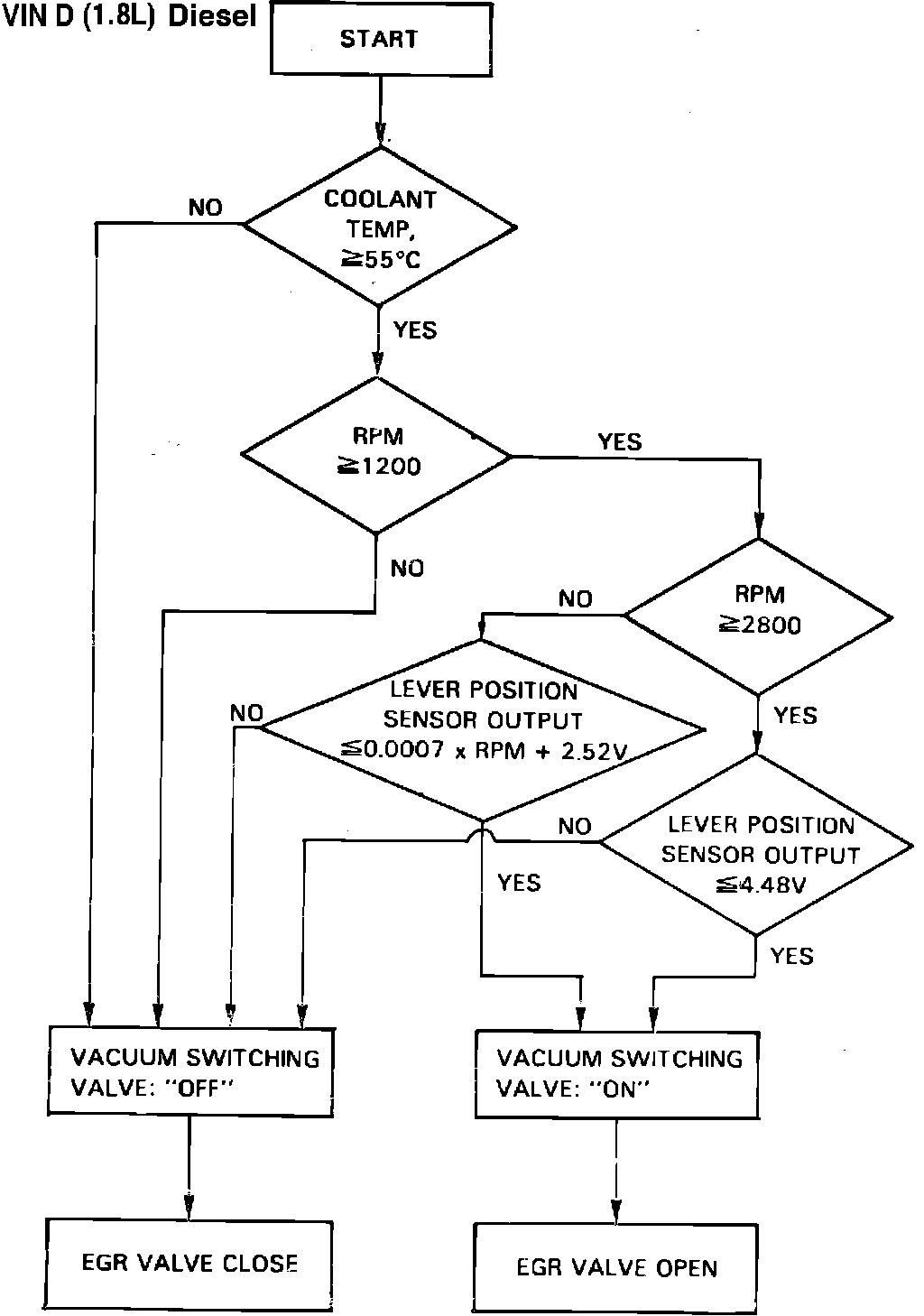

Fig. 018 Logic Flow Chart (Same as Fig. 51, p. 13-21):
