Cruise Control
>>
Cruise Control Switch
>>
Testing and Inspection
>>

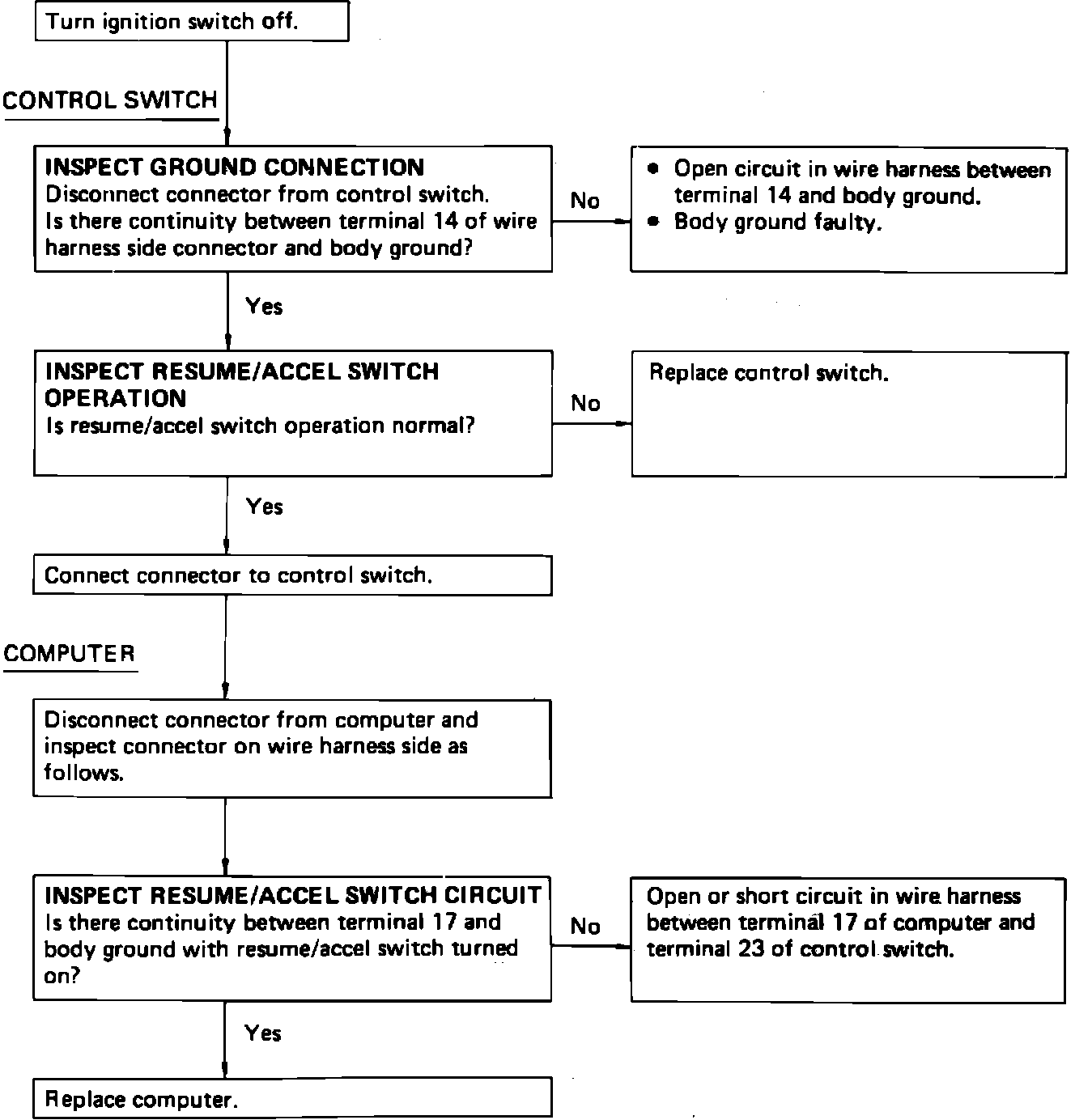

Chart C: Resume/Accel Switch Circuit Inspection
Chart C: Resume/Accel Switch Circuit Inspection
"C" Resume/accel Switch Circuit Inspection:
