Without A/C

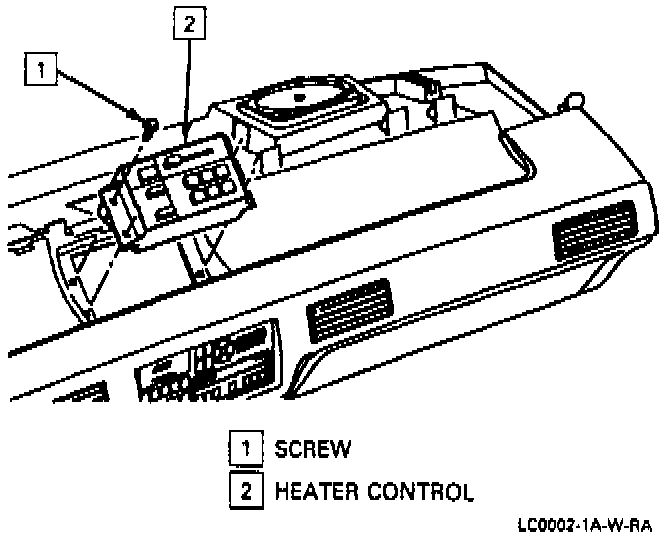

Heater Control Assembly:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Cluster Trim Plate.
3. Screws securing Control Assembly to dash.
4. Control Assembly.
5. Control Assembly Connectors.

INSTALL OR CONNECT
1. Control Assembly Connectors.
2. Control Assembly.
3. Screws securing Control Assembly to dash.
4. Cluster Trim Plate.
5. Negative battery cable.
