Various Body Electrical Systems - Manual Update: Overview
FILE IN SECTION: 8 - Chassis/Body ElectricalBULLETIN NO.: 53-81-06
DATE: January, 1995
SUBJECT:
Section 8A - Various Revisions to Section 8A
MODELS:
1995 Chevrolet Beretta, Corsica
This bulletin provides updated information for Section 8A of the Service Manual. This bulletin is to provide the late changes not incorporated at the time of the original Service Manual printing.
Please refer to the following attachments for various revisions to Section 8A.
INTRODUCTION

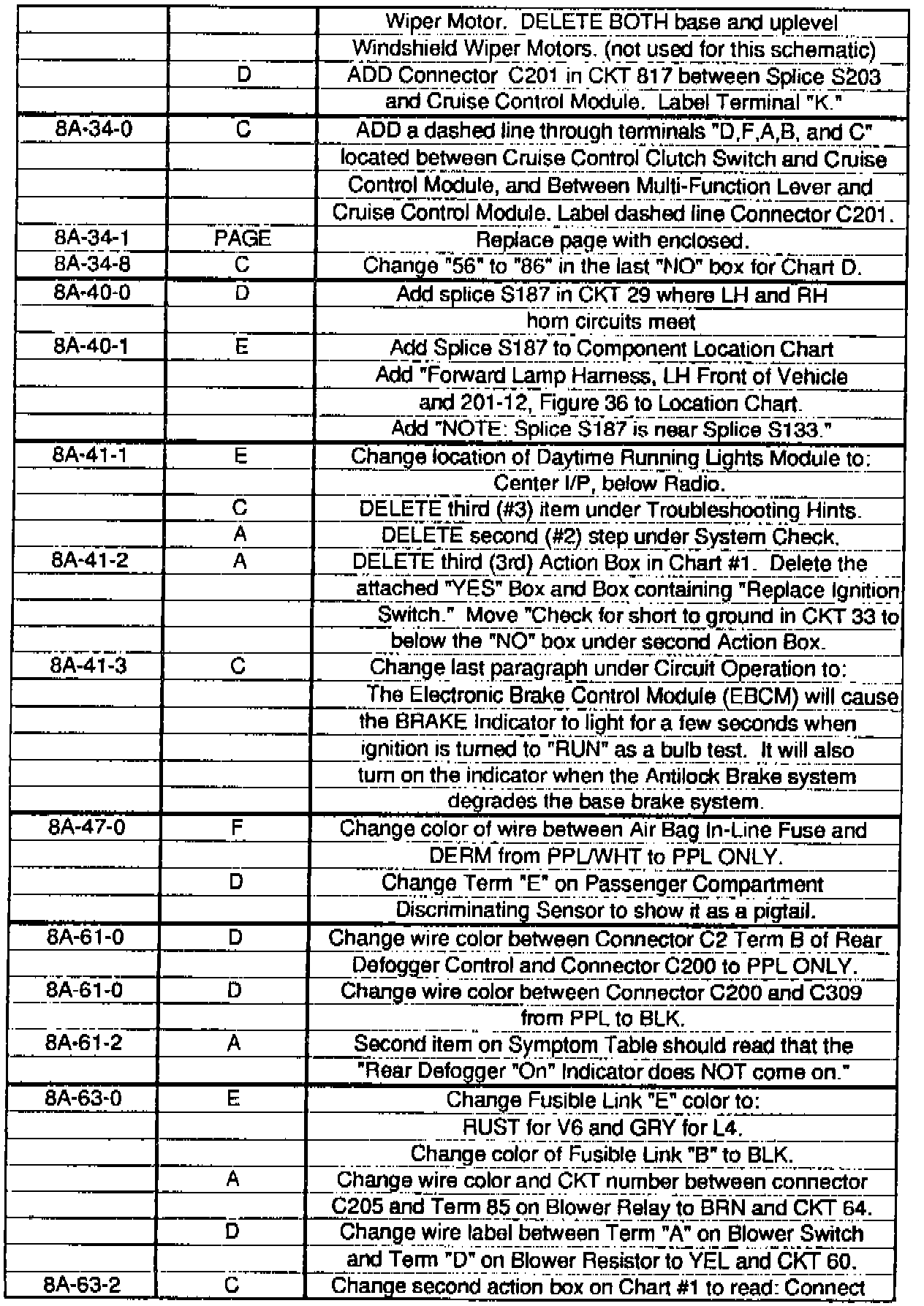

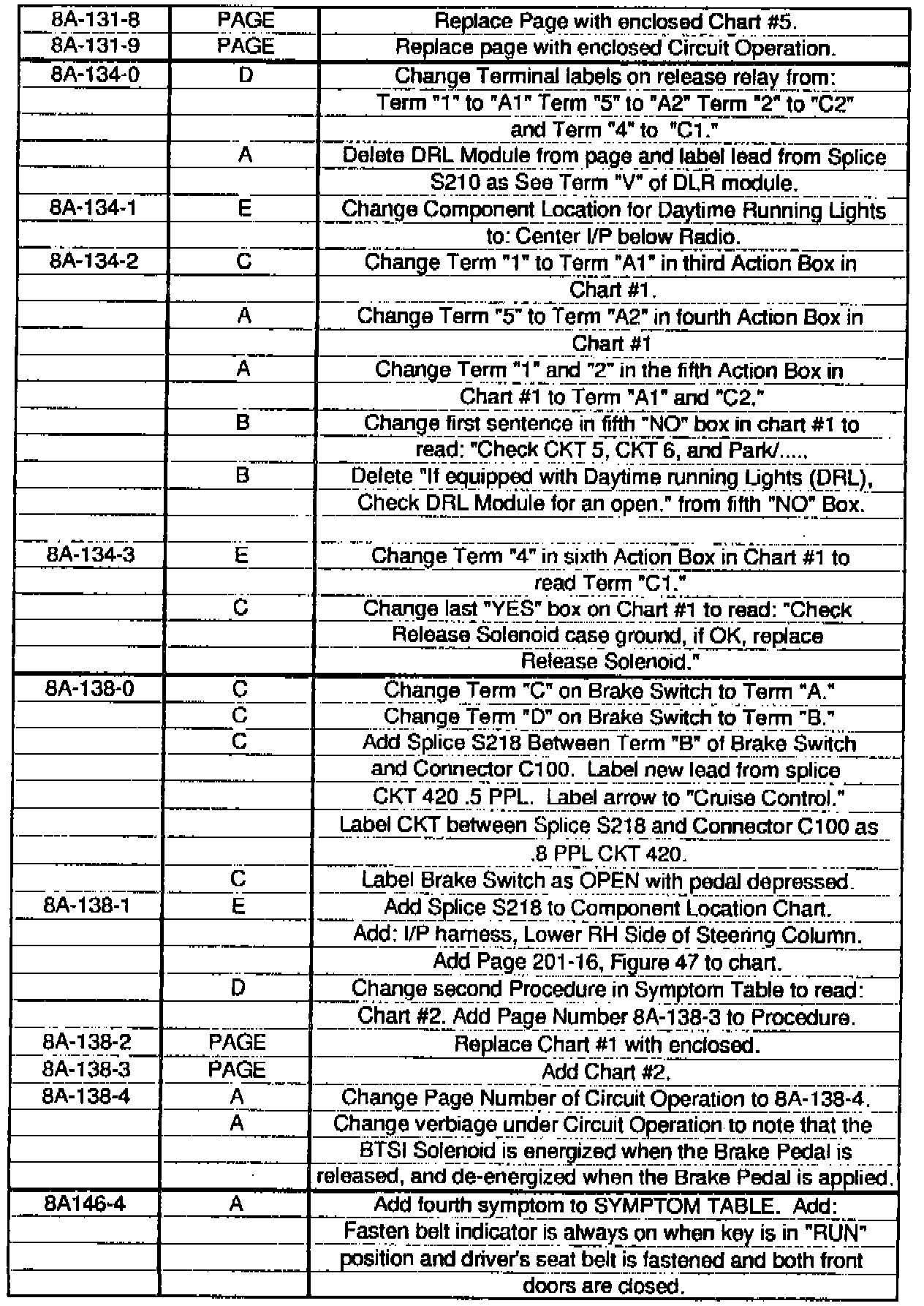

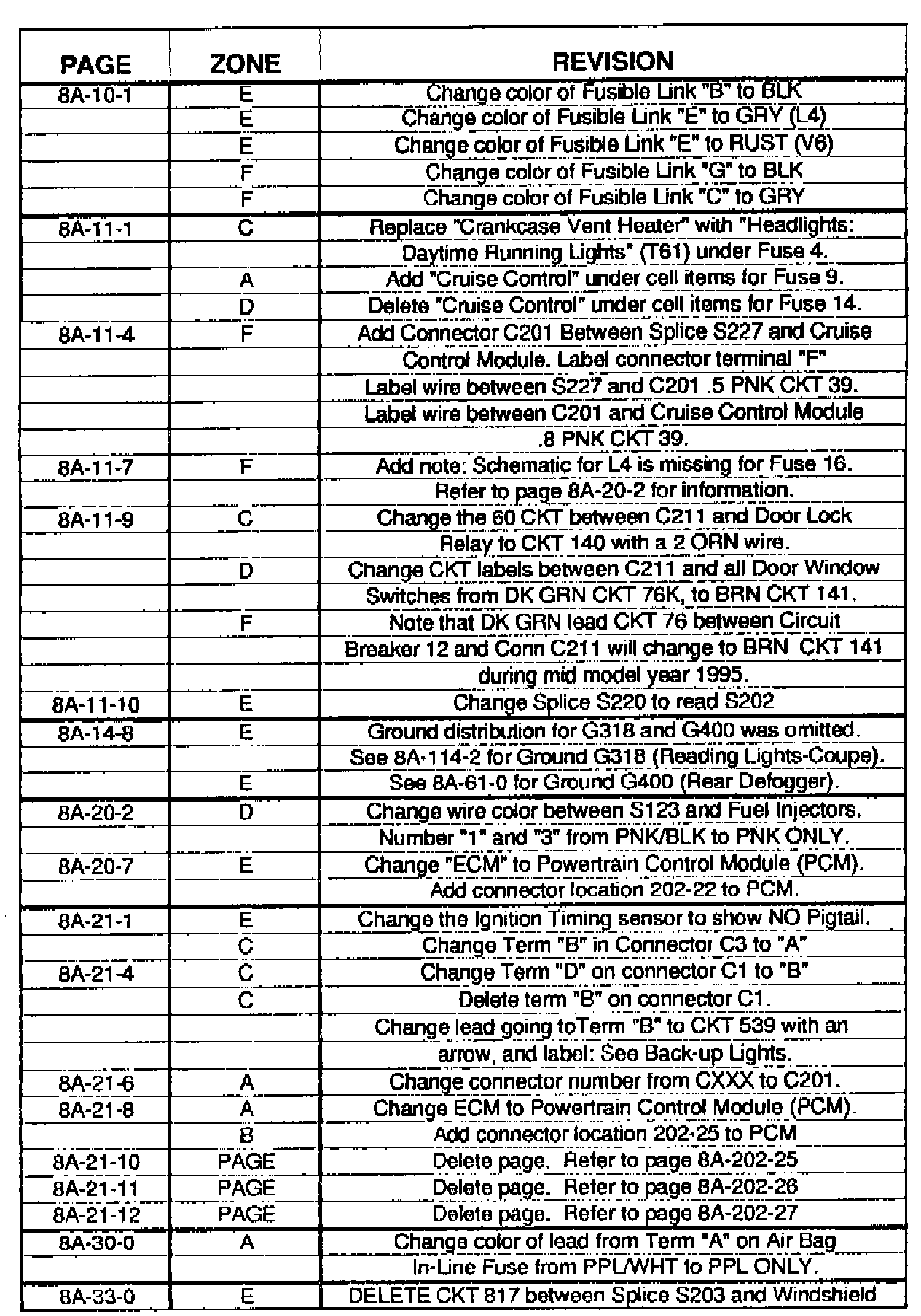

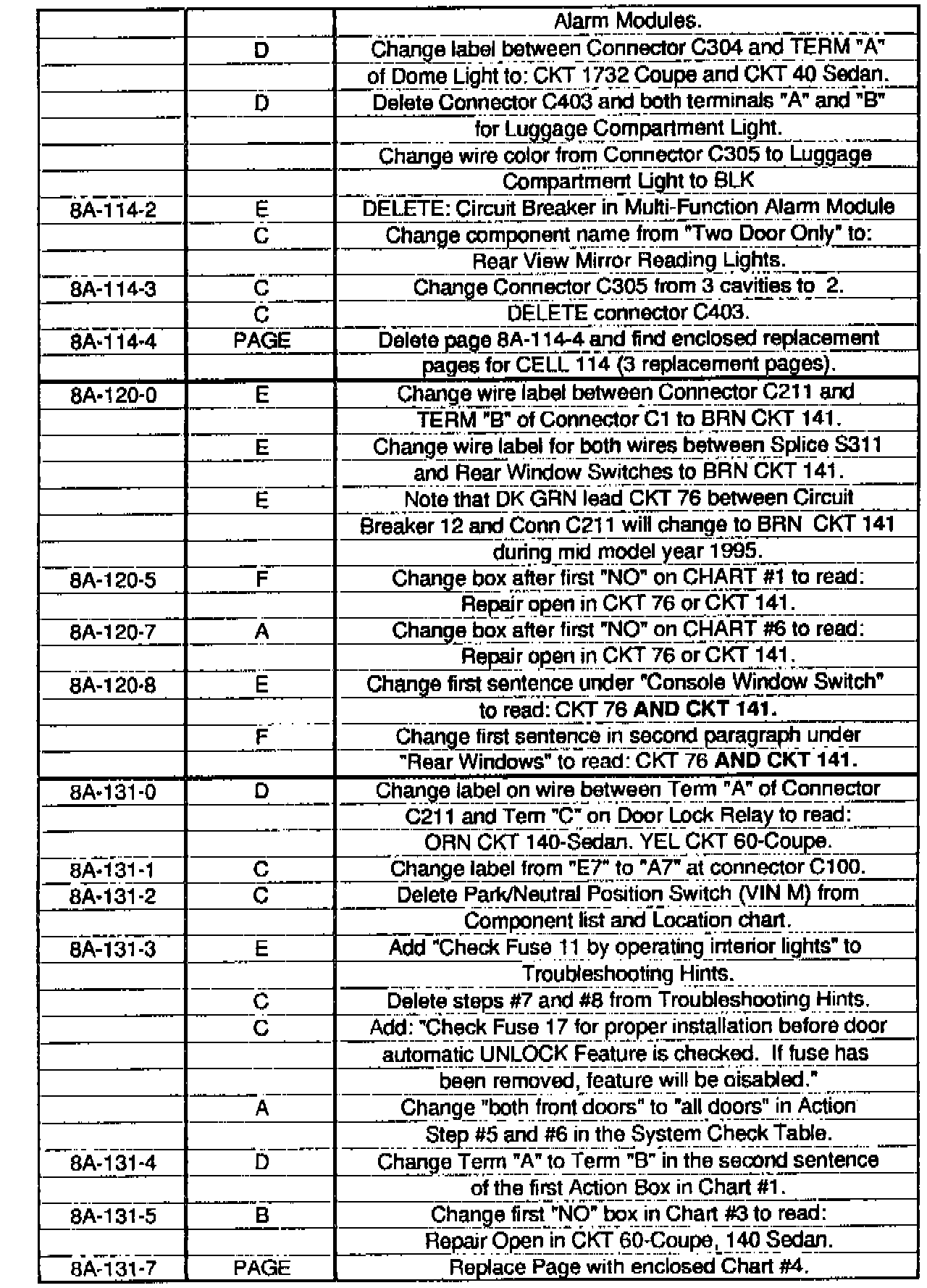

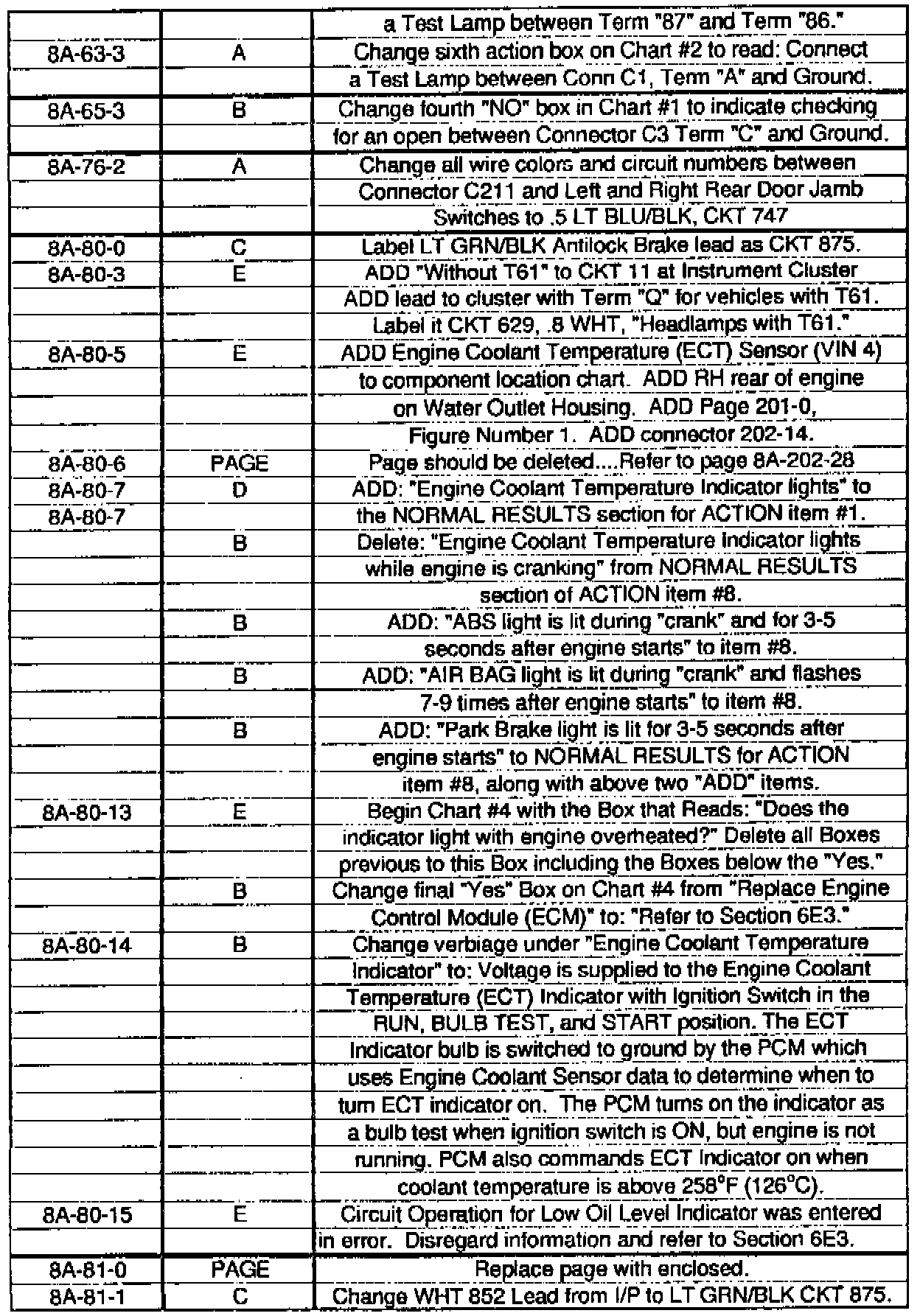

UPDATE CHANGE SUMMARY
The Update Change Summary describes minor revisions to the 1995 Service Manual. Each entry includes the revision page number and a description of the revision. The zone on the page where the revision should be made is also included.

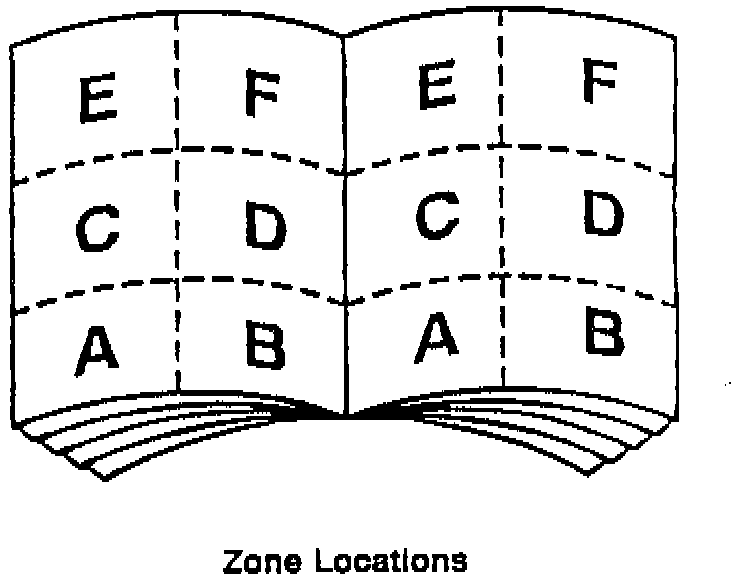

Each page can be divided into six zones to easily and consistently locate information on Section SA schematics and text pages. The figure to the right shows the zone locations.
Note:
It is recommended that you transfer the minor change information in the Update Change Summary to your 1995 Service Manuals.
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
