Camshaft Position Sensor: Service and Repair

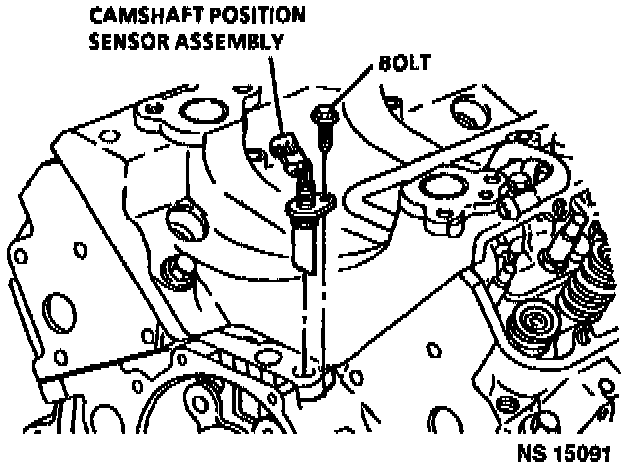

Camshaft Sensor Location:

REMOVE OR DISCONNECT
1. Disconnect negative battery cable.
2. Remove throttle cable shield and bracket from throttle body.
3. Disconnect electrical connector.
4. Remove retaining bolt.
5. Remove sensor.


INSTALL OR CONNECT
1. Install camshaft position sensor.
2. Install retaining bolt.

Tighten
Bolt to 10 Nm (8 lb. ft.)

3. Connect harness connector.
4. Connect throttle cable bracket and shield.
5. Connect negative battery cable.
