Speaker
Speaker
Left And Right Front (Bose):

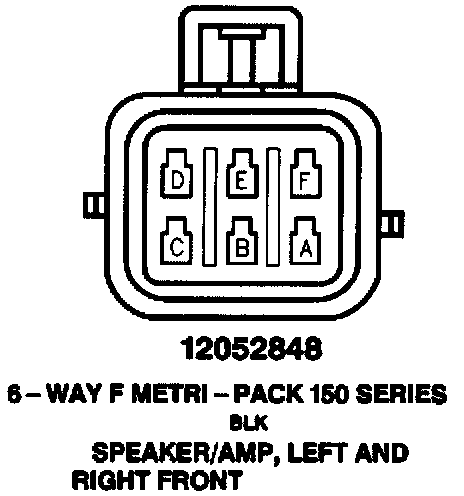

Harness Connector Face: Speaker/AMP, Left And Right Front:

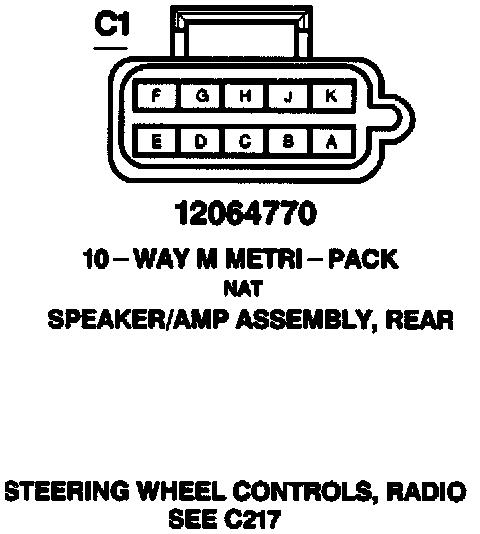

Harness Connector Face: Speaker/AMP Assembly, Rear:
