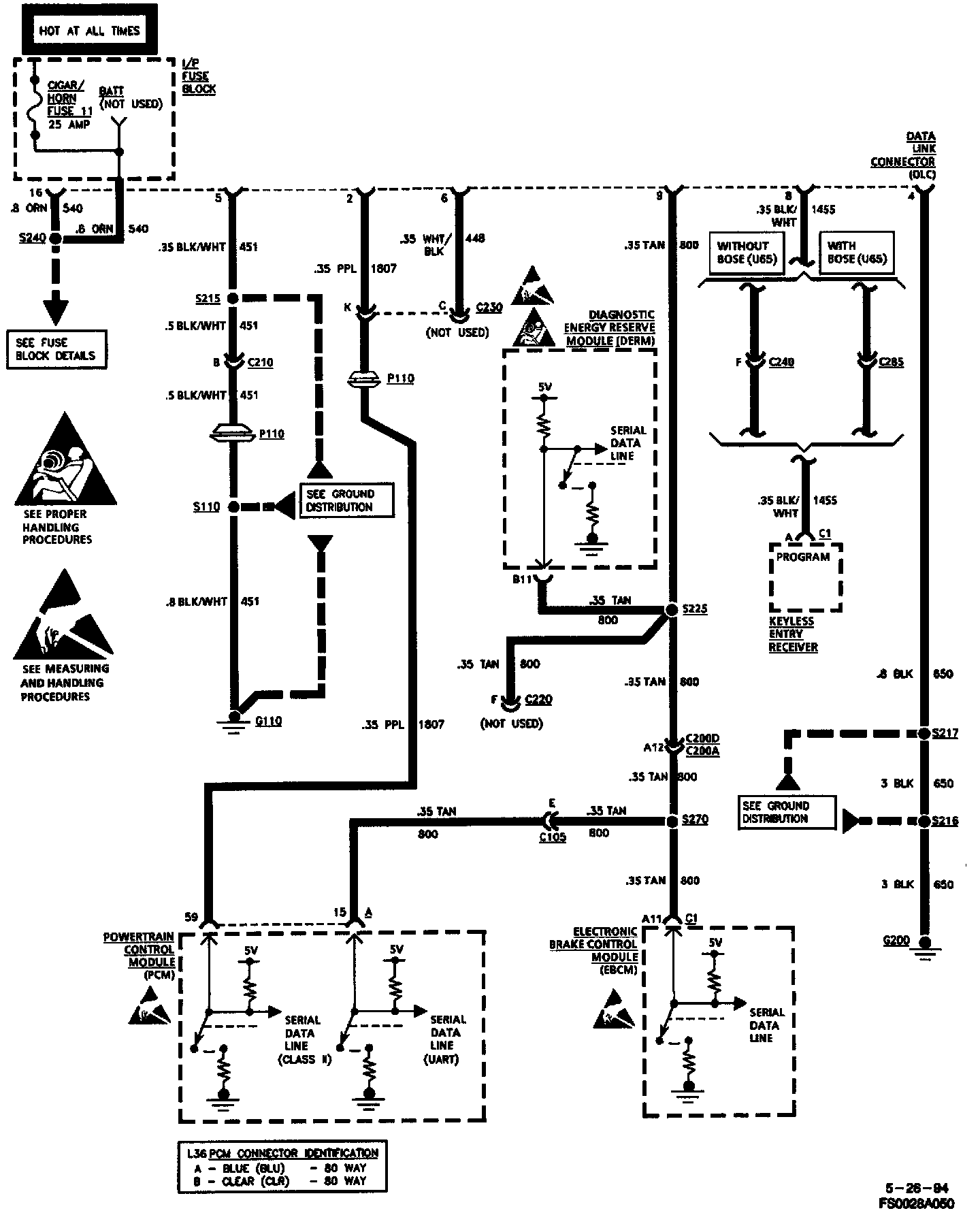

Data Link Connector

On-Board Diagnostic (OBD) System Check:



Data Link Connector (DLC) Pin Assignment:
