Power Window Switch
Power Window Switch

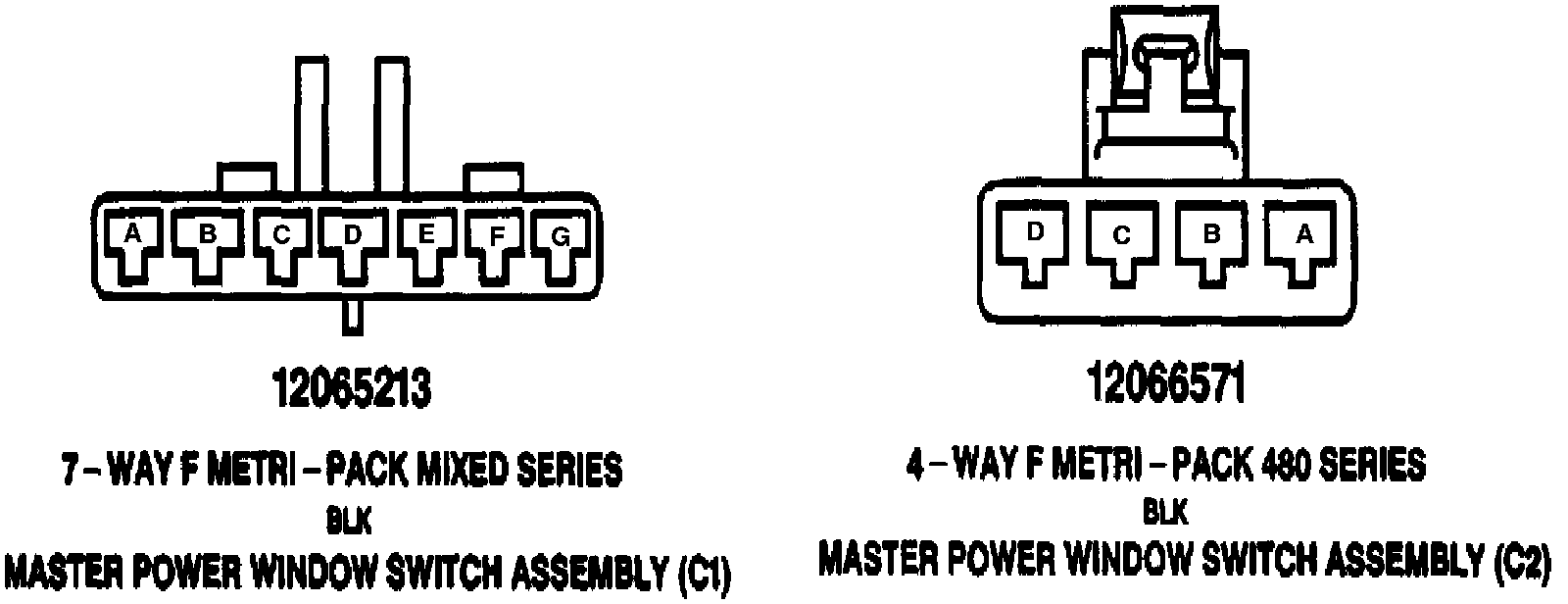

Master Power Window Switch Assembly C1 and C2:

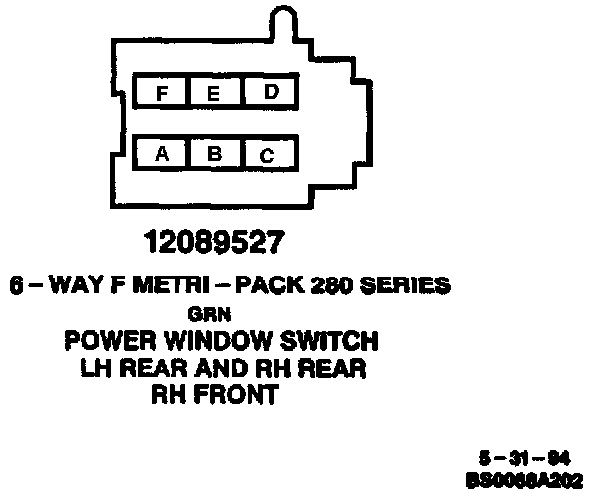

Power Window Switch LH And RH Rear RH Front:
