Home >> Chevrolet >> 1995 >> Corsica L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Motors >> Power Window Motor >> Front

Front

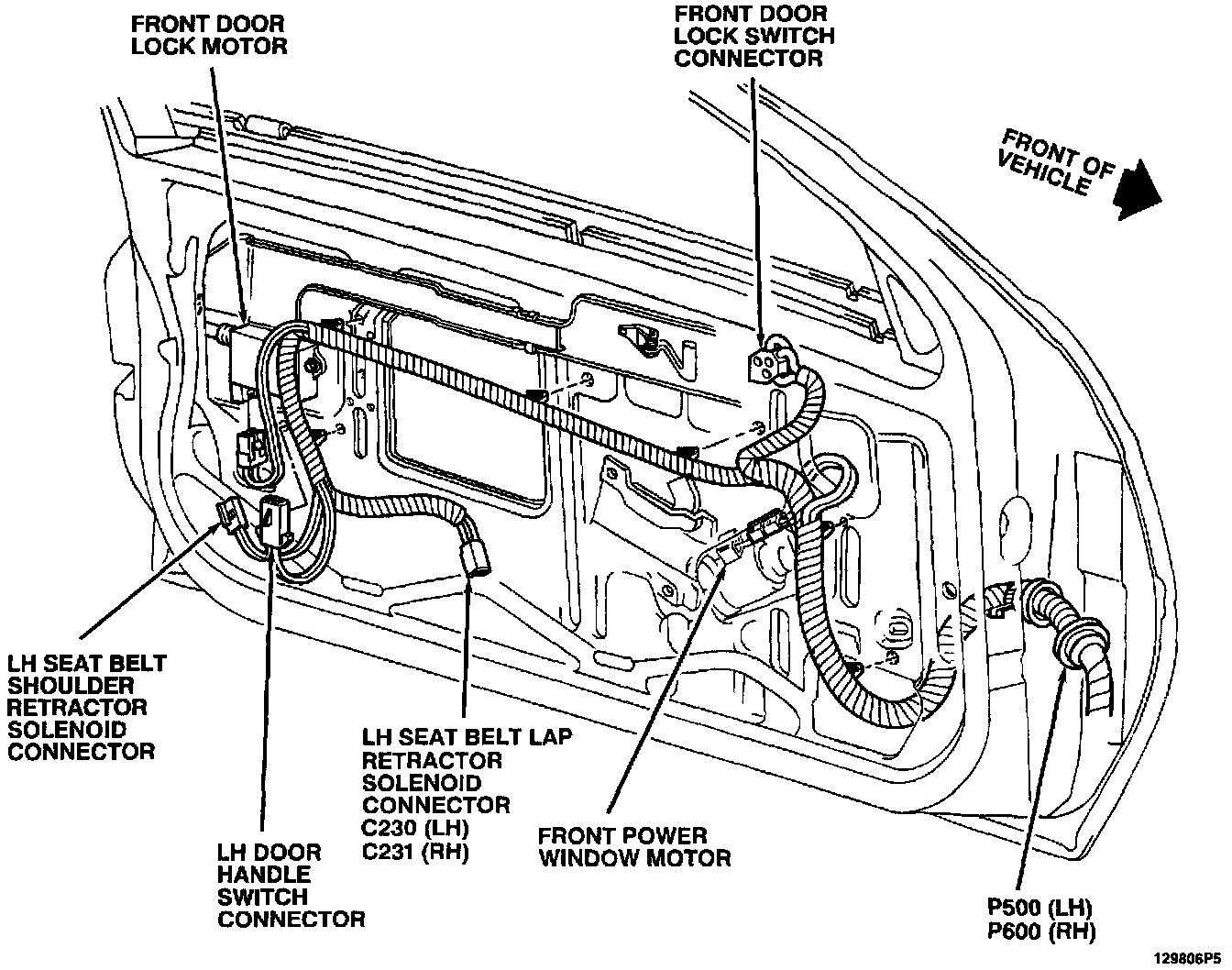

LH Front Door (Beretta Shown, Corsica Similar) ( RH Similar ):
