Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1995
>>
Corvette V8-350 5.7L VIN P MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Traction Control Module
>>
Pinout Description
Pinout Description

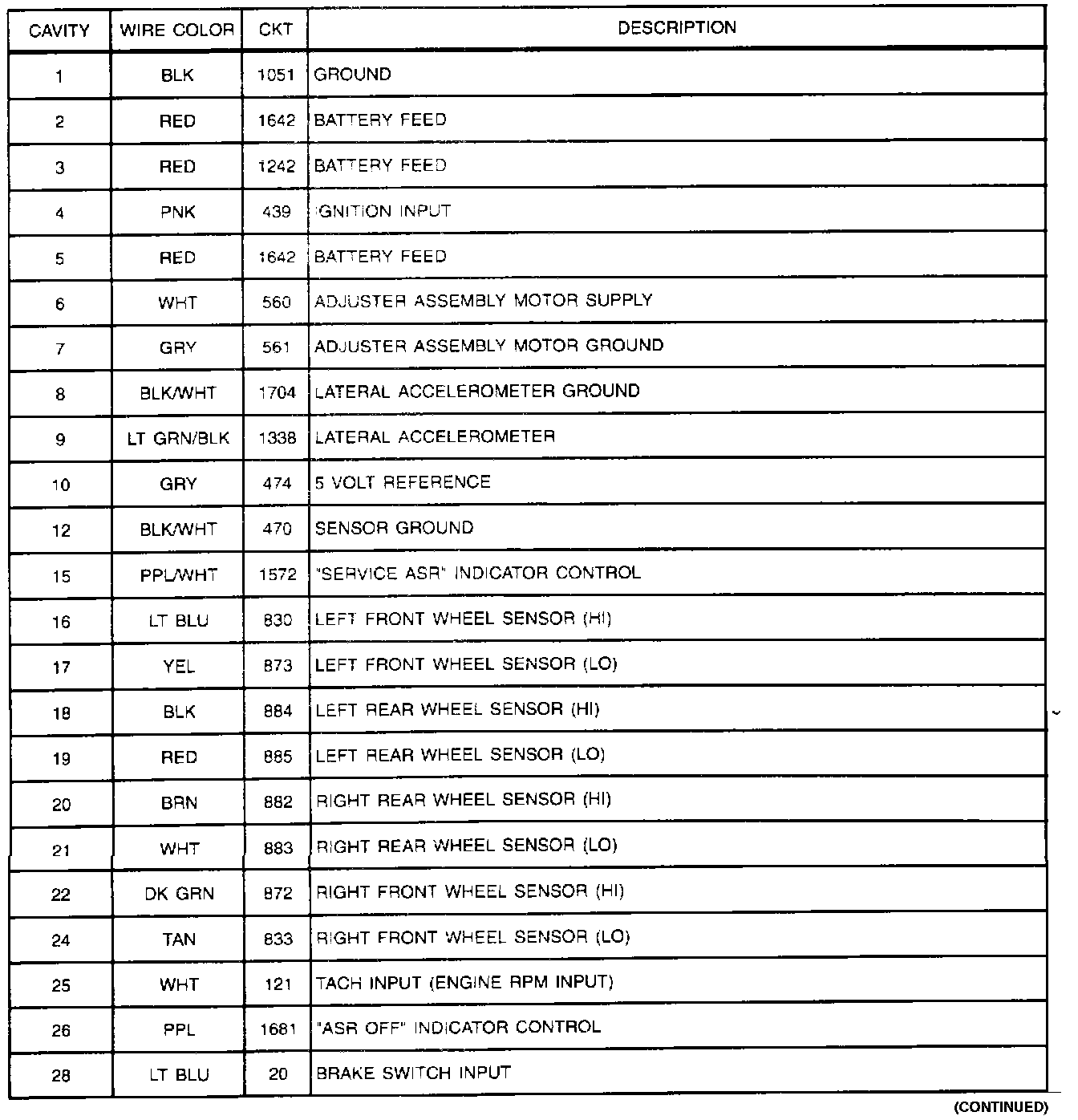

Electronic Brake/Traction Control Module (Part 1 Of 2):

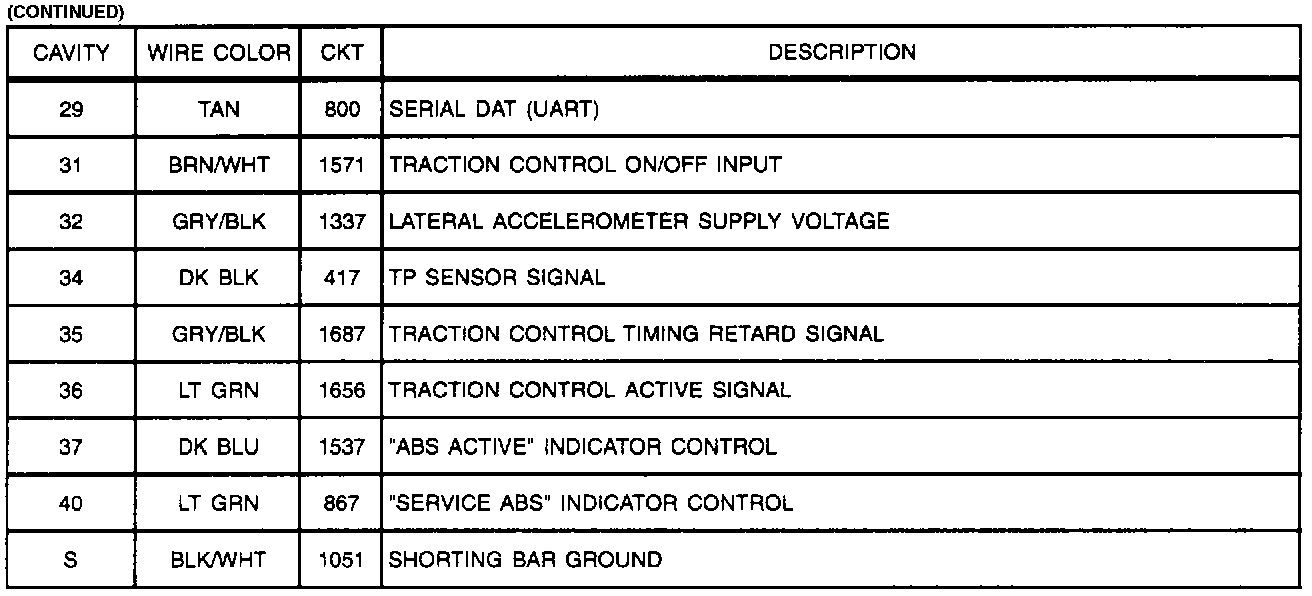

Electronic Brake/Traction Control Module (Part 2 Of 2):
