Home >> Chevrolet >> 1995 >> Corvette V8-350 5.7L VIN P MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> B

B

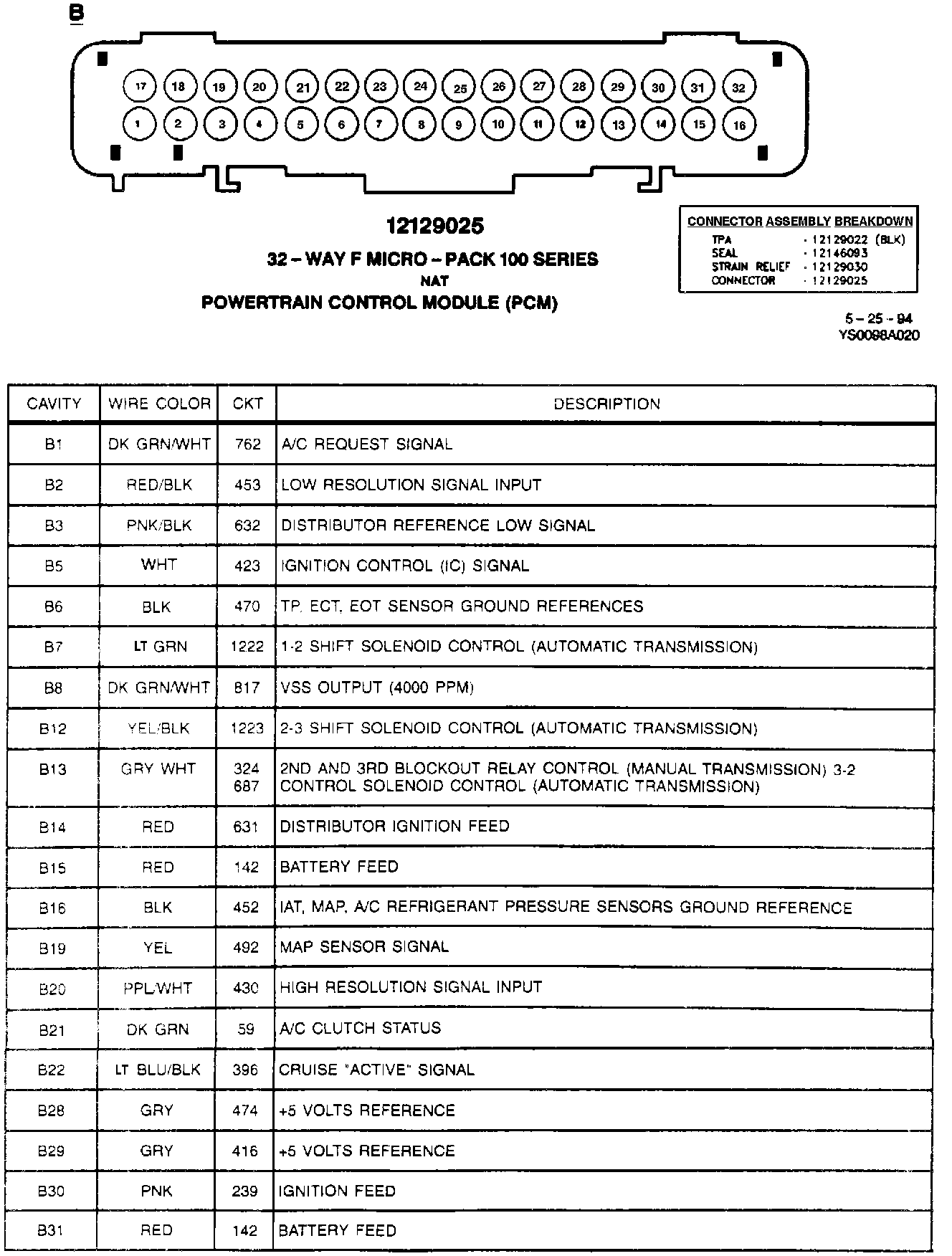

Powertrain Control Module: B:
