Pinout Description

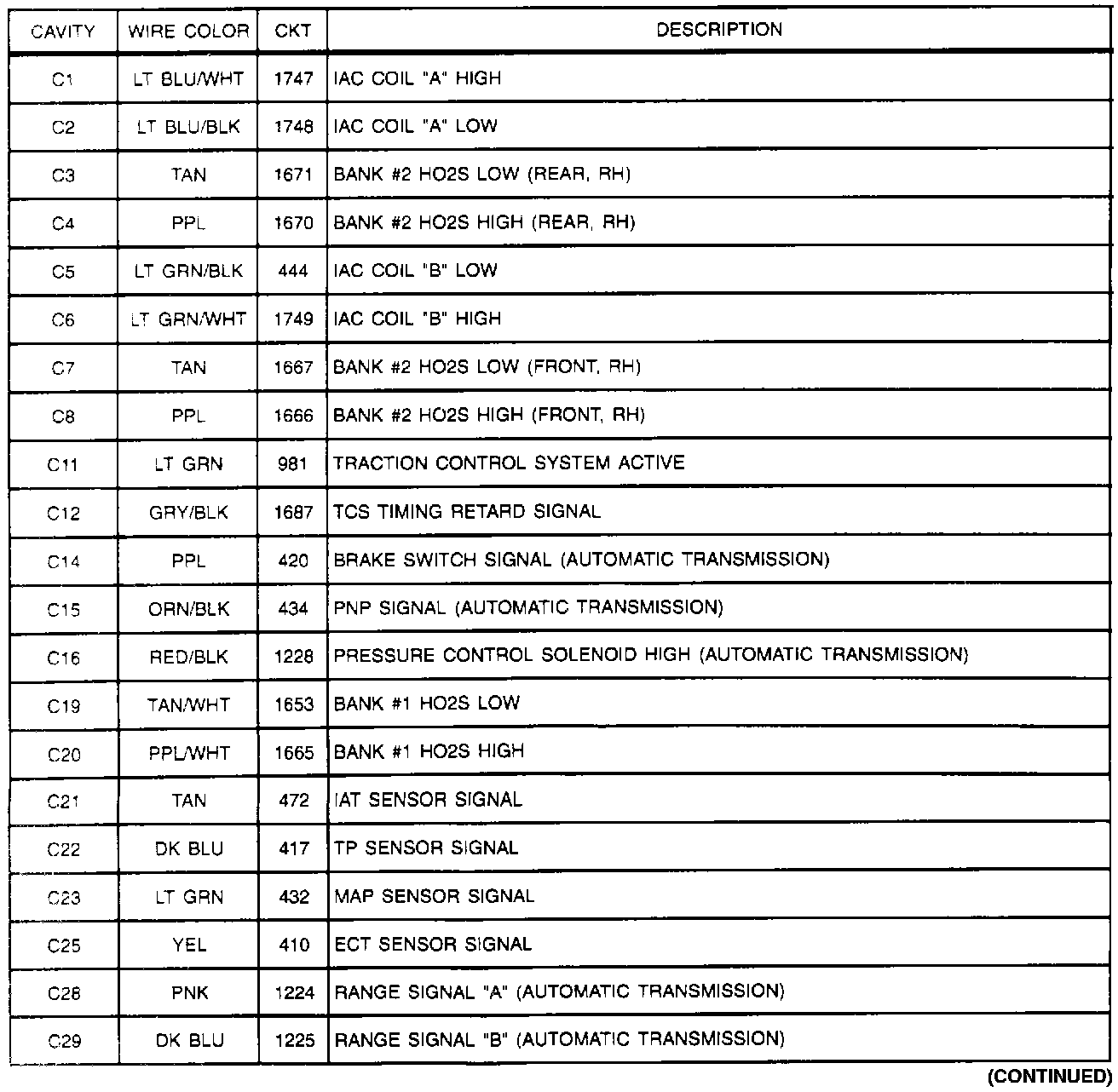

Powertrain Control Module: C (Part 1 Of 2):

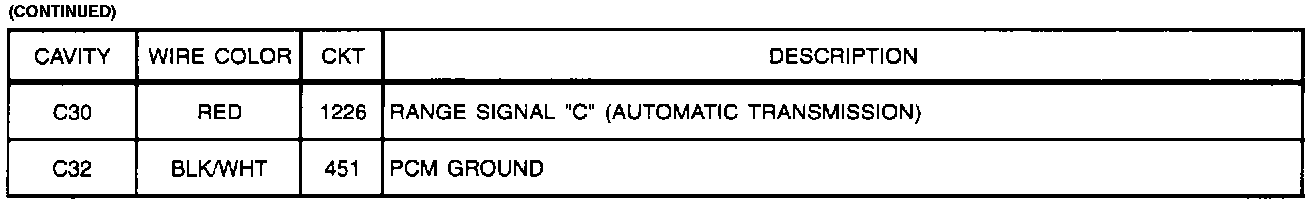

Powertrain Control Module: C (Part 2 Of 2):
