Heater/Vent/Air Conditioning Control Head
>>
Electronic
Electronic

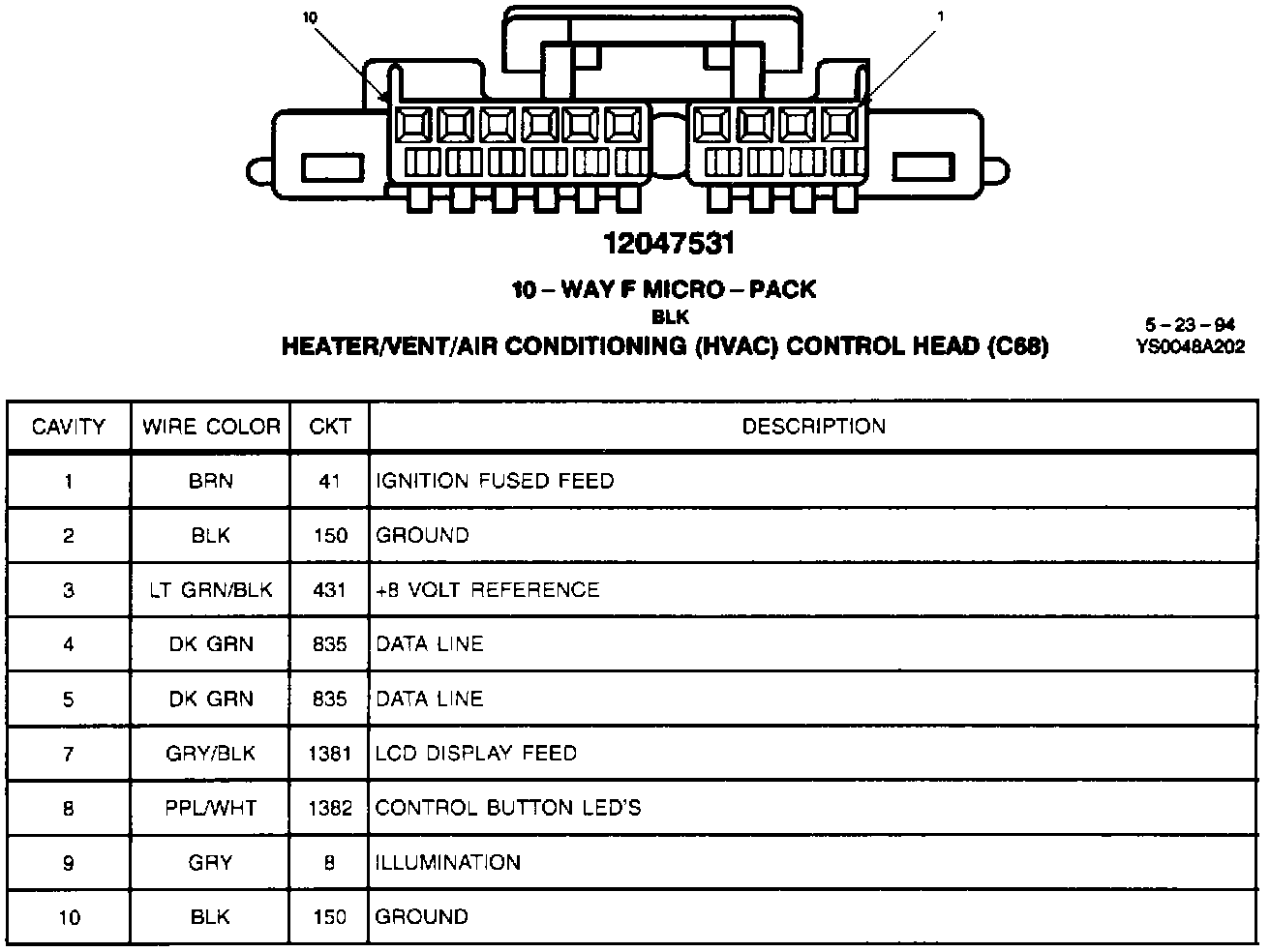

Heater/Vent/Air Conditioning Control Head (C68):
