Oil Pressure Sensor: Service and Repair

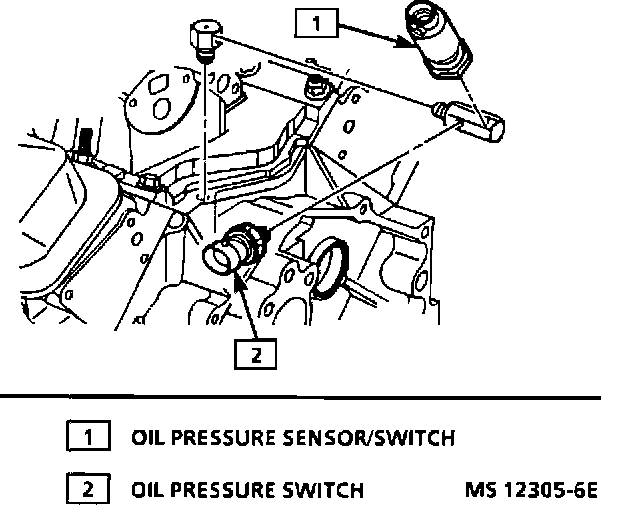

Oil Pressure Sensor Removal:

REMOVE OR DISCONNECT
1. Air hose at check valve and reposition.
2. Electrical connector.
3. Fuel pump switch and oil pressure sensor.


INSTALL OR CONNECT
1. Fuel pump switch and oil pressure sensor.

Tighten
Sensor to 12 Nm (106 lb in.)

2. Electrical connector.
3. Air hose at check valve.
