Home >> Chevrolet >> 1995 >> Corvette V8-350 5.7L VIN P MFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Specifications

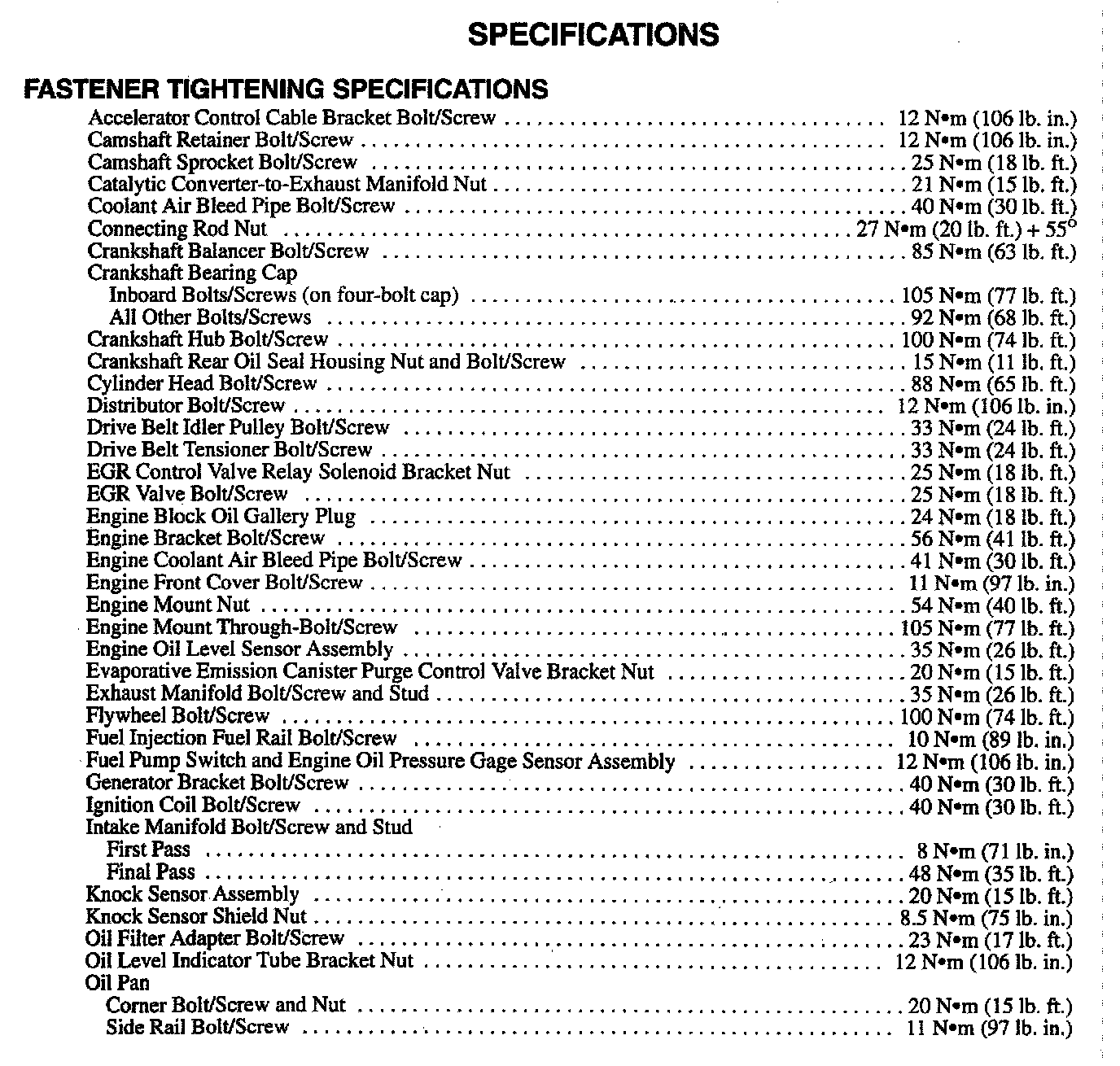

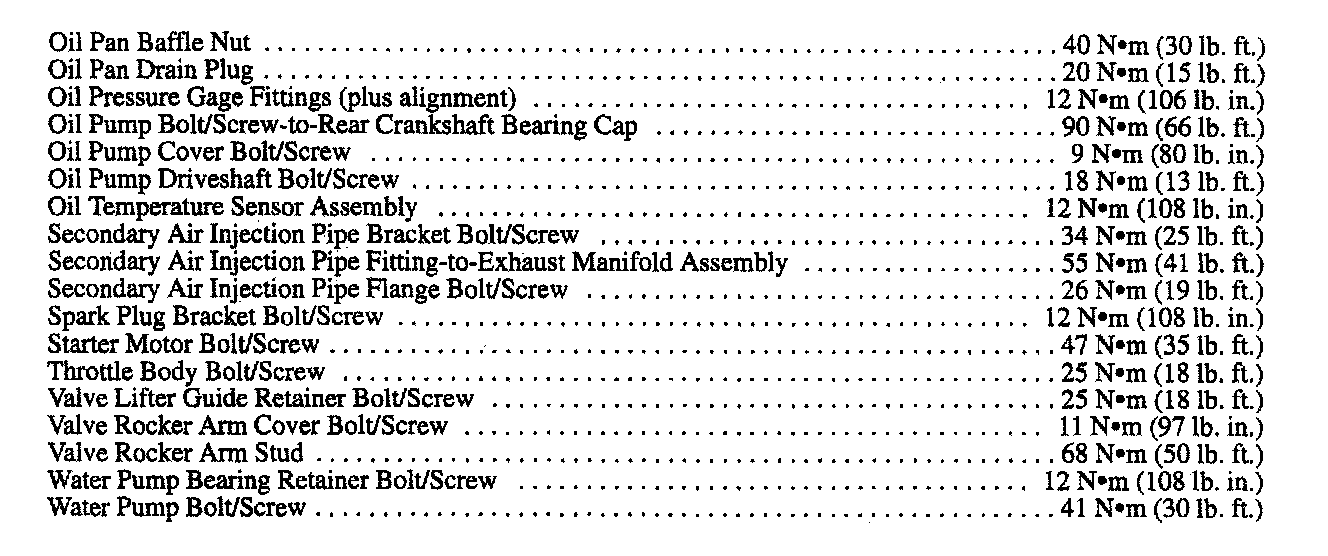

Engine Specifications

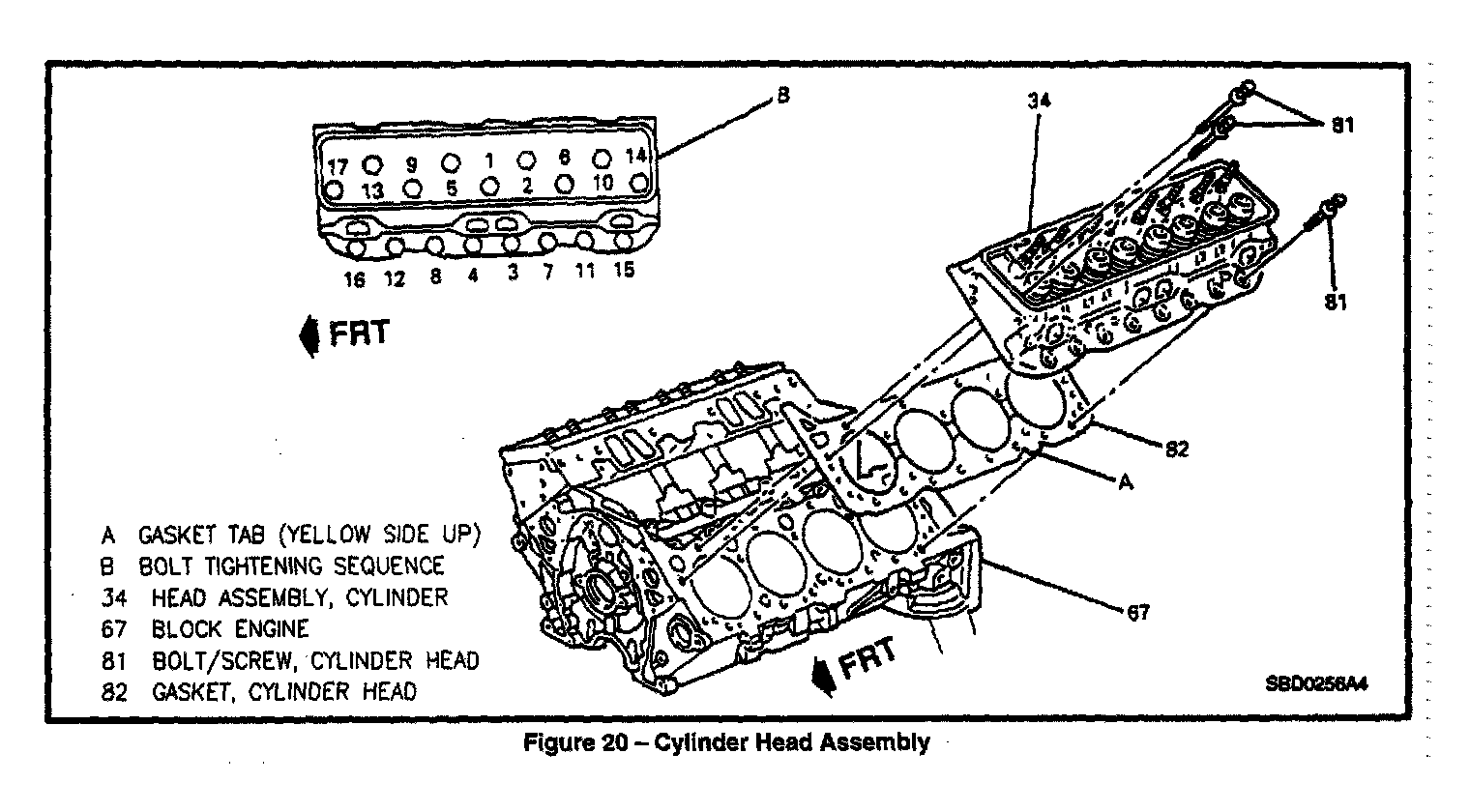

Figure 20 Cylinder Head Tightening Sequence:
