Dimension & Clearance Specifications - Engine

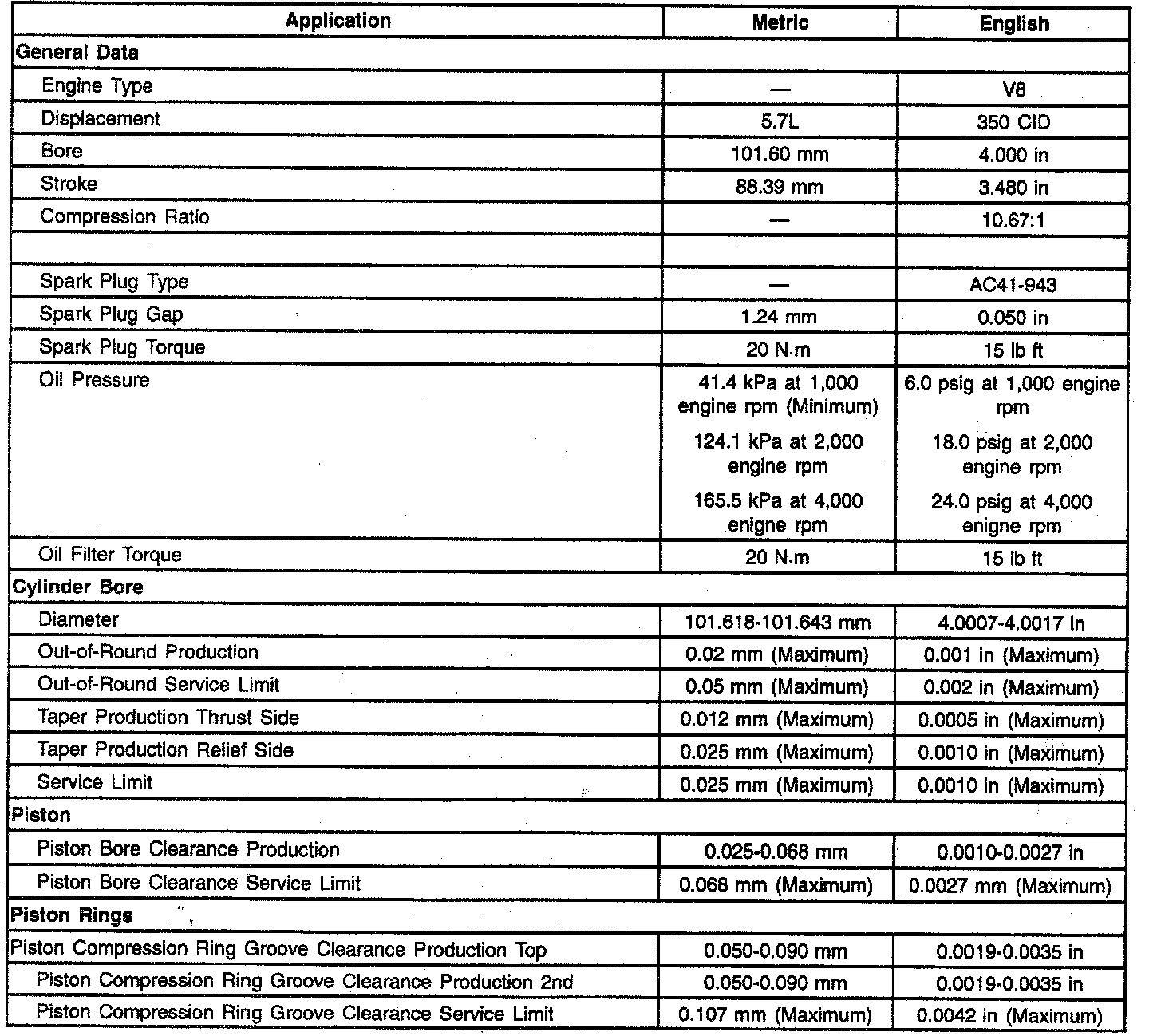

General Data, Cylinder Bore, Piston, Piston Rings:

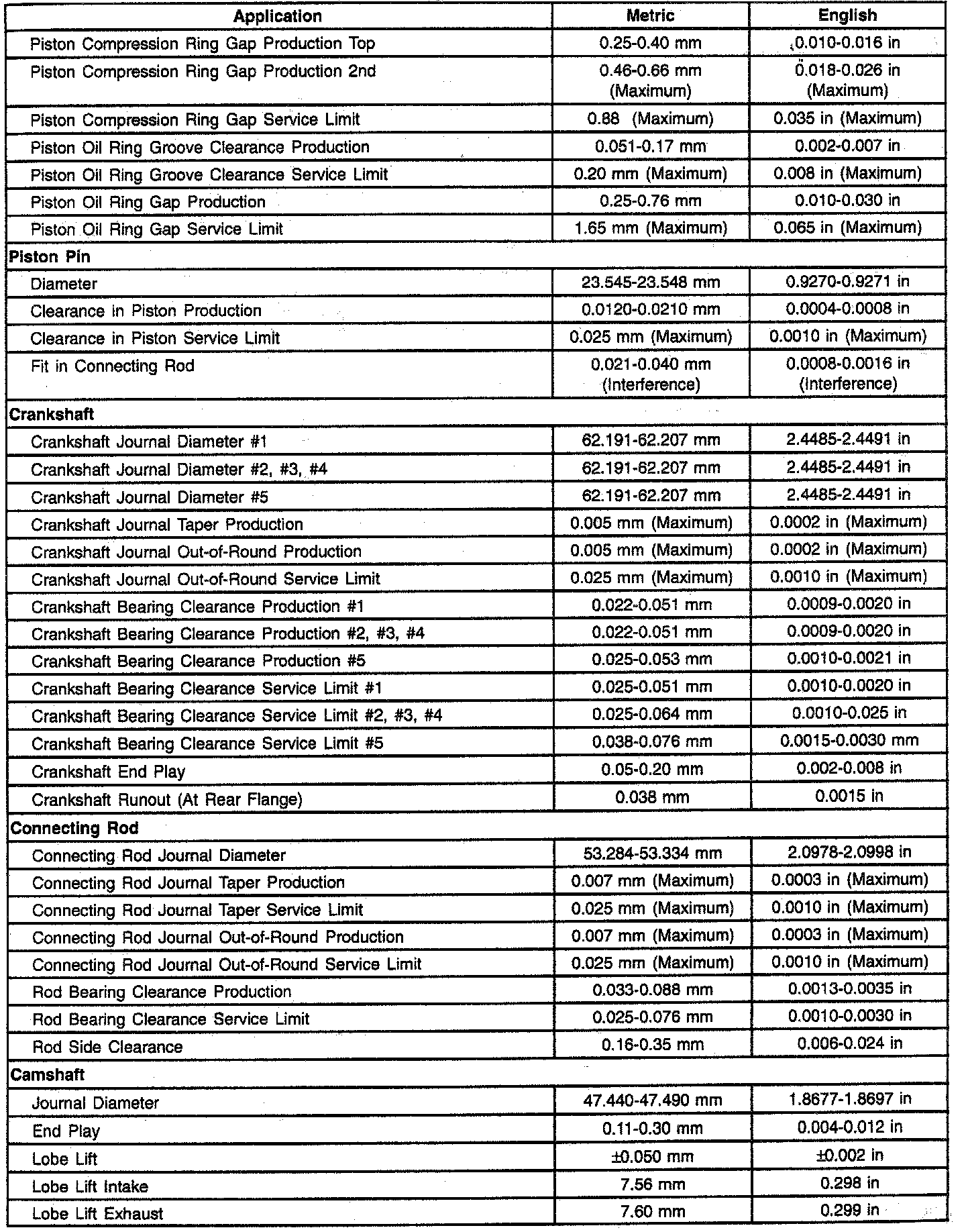

Piston Rings, Piston Pin, Crankshaft, Connecting Rod, Camshaft:

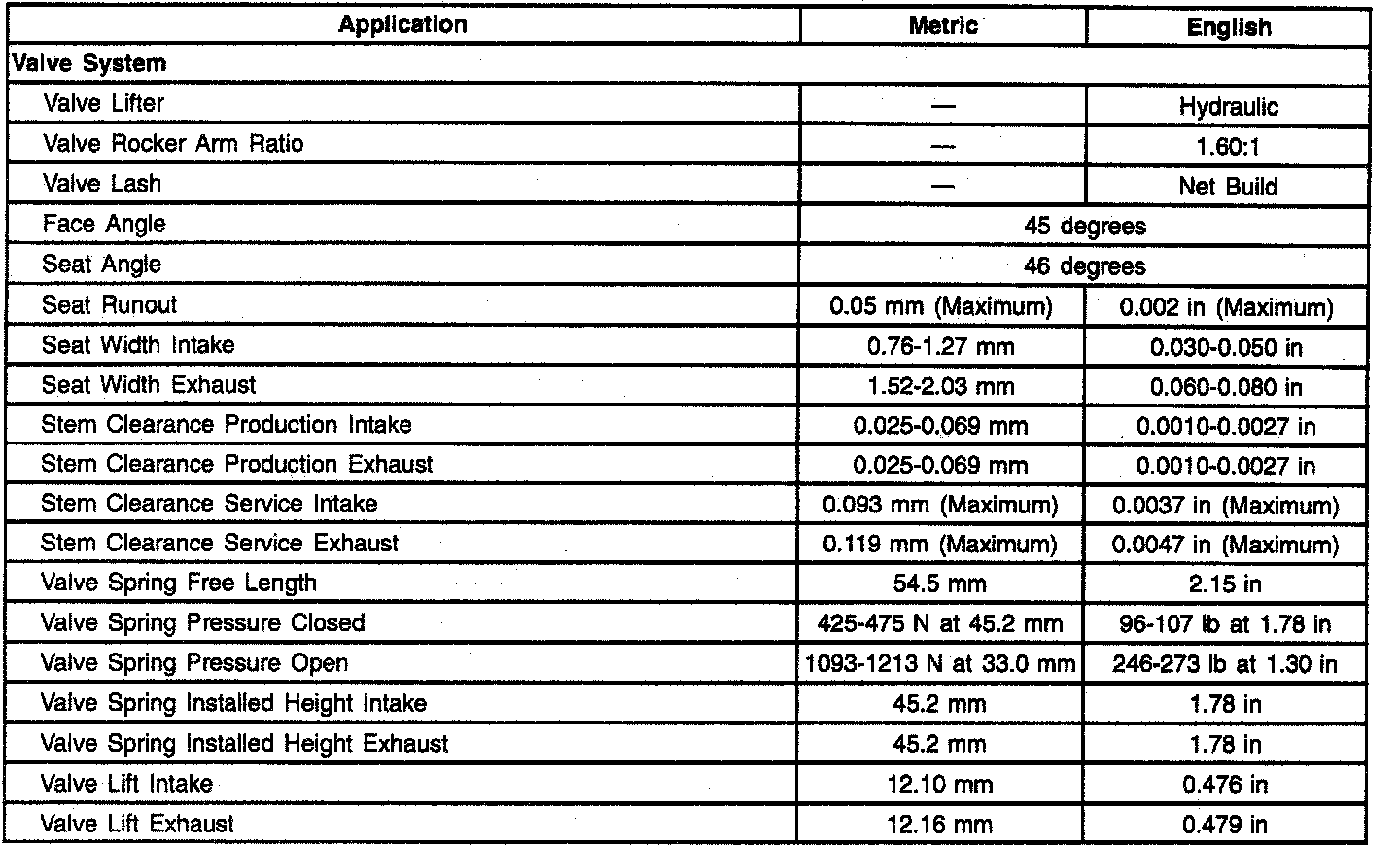

Valve System:
