Corvette V8-350 5.7L VIN P SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Modules
>>
Headlamp Door Module

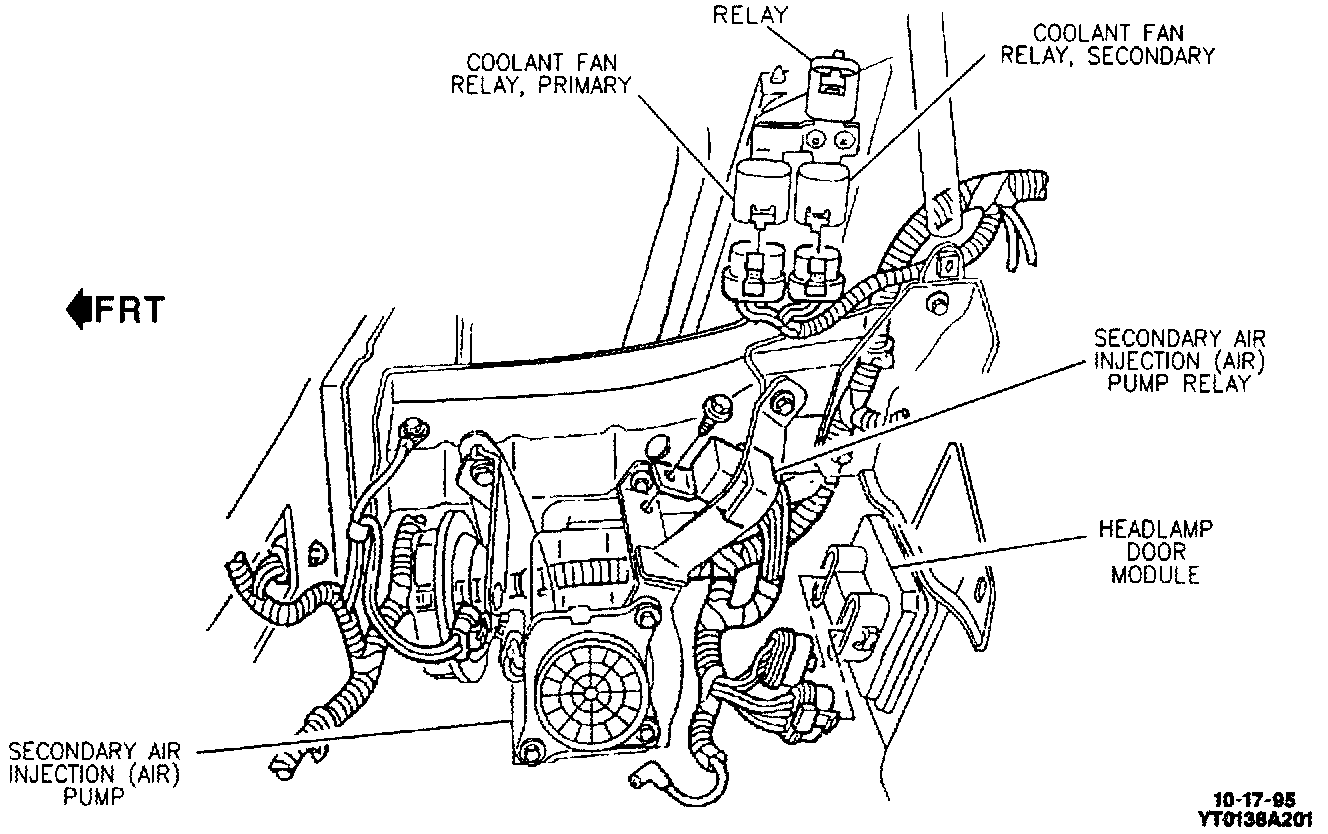

Headlamp Door Module
LH Front Engine Compartment:
