Pinout Description
Pinout Description

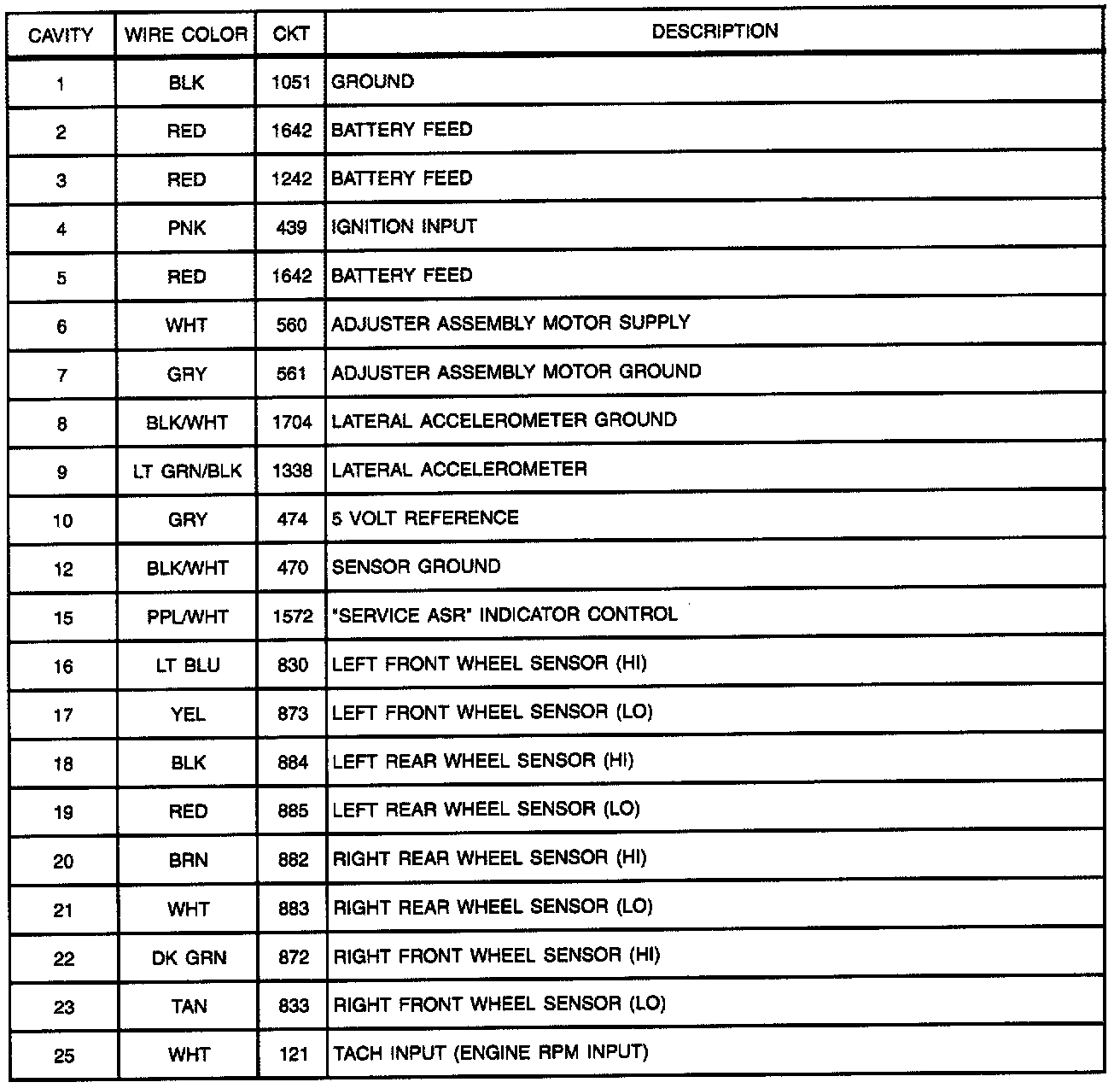

Electronic Brake/Traction Control Module (EBTCM) (Part 1 Of 2):

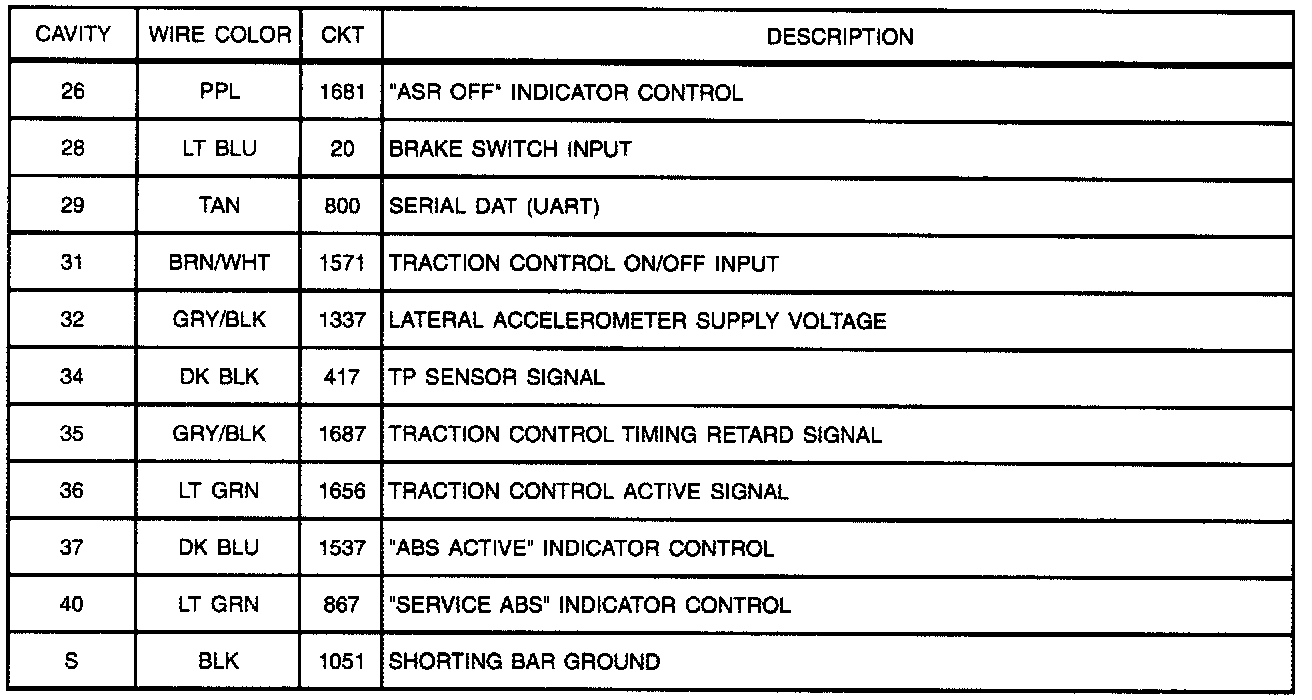

Electronic Brake/Traction Control Module (EBTCM) (Part 2 Of 2):
