Body and Frame
>>
Power Door Lock Control Module
>>

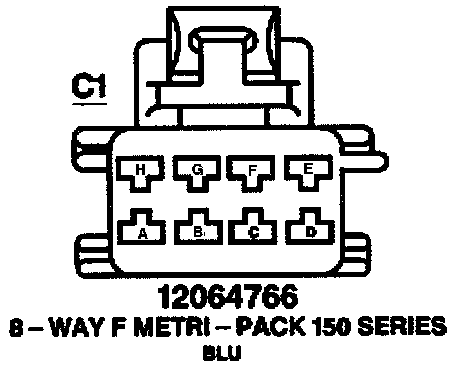

C1
C1

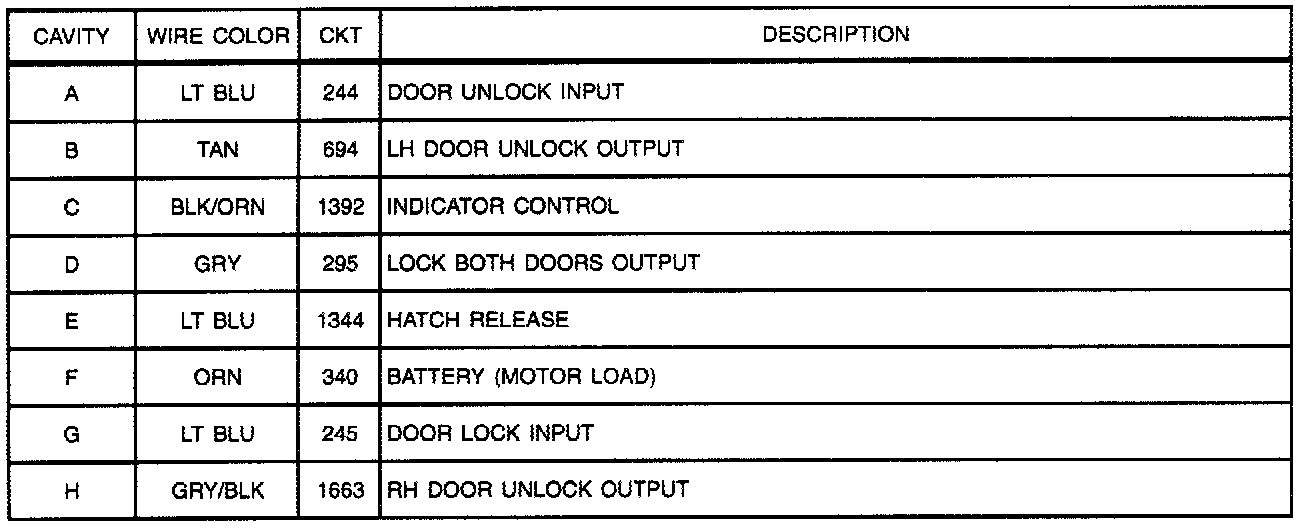

Passive Keyless Entry/Power Door Locks: C1:
Passive Keyless Entry/Power Door Locks: C1:
