Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1996
>>
Corvette V8-350 5.7L VIN P SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body and Frame
>>
Power Door Lock Control Module
>>
C2
C2

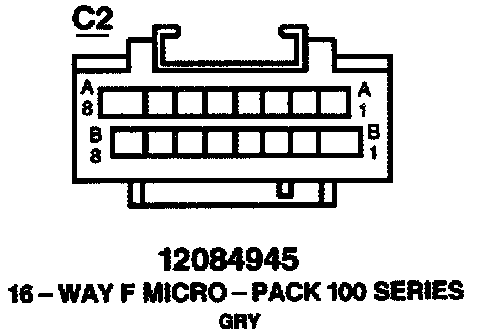

Passive Keyless Entry/Power Door Locks: C2:

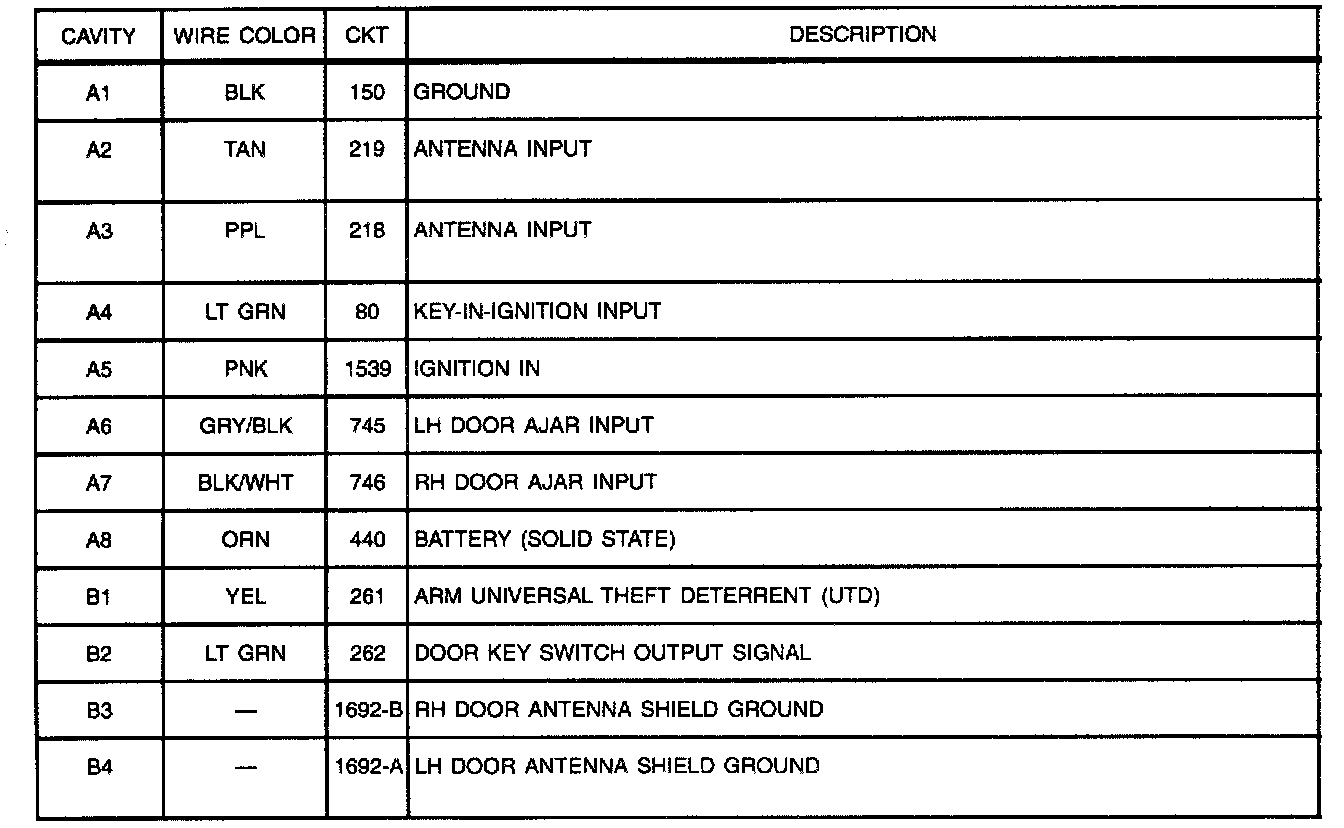

Passive Keyless Entry/Power Door Locks: C2 (Part 1 Of 2):

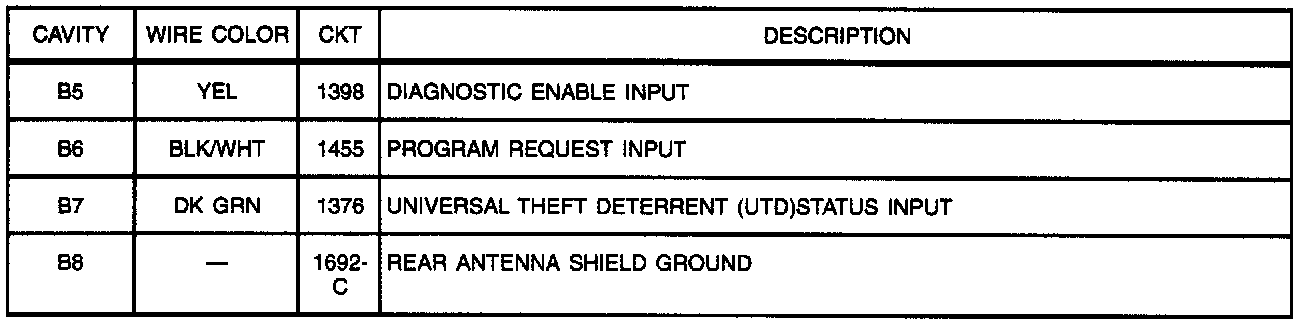

Passive Keyless Entry/Power Door Locks: C2 (Part 2 Of 2):
