Pinout Description

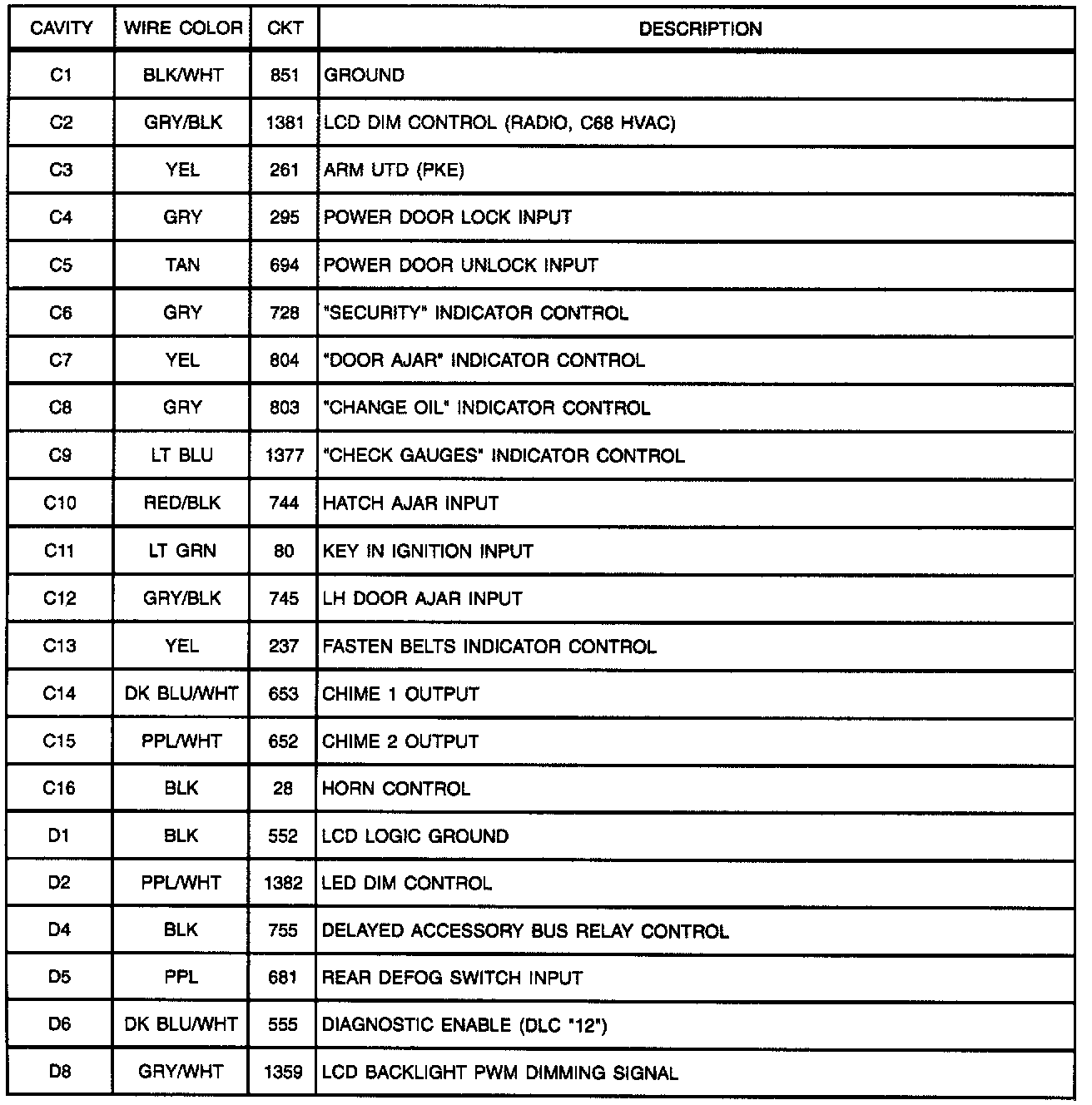

Central Control Module (CCM): C1 (Part 1 Of 2):

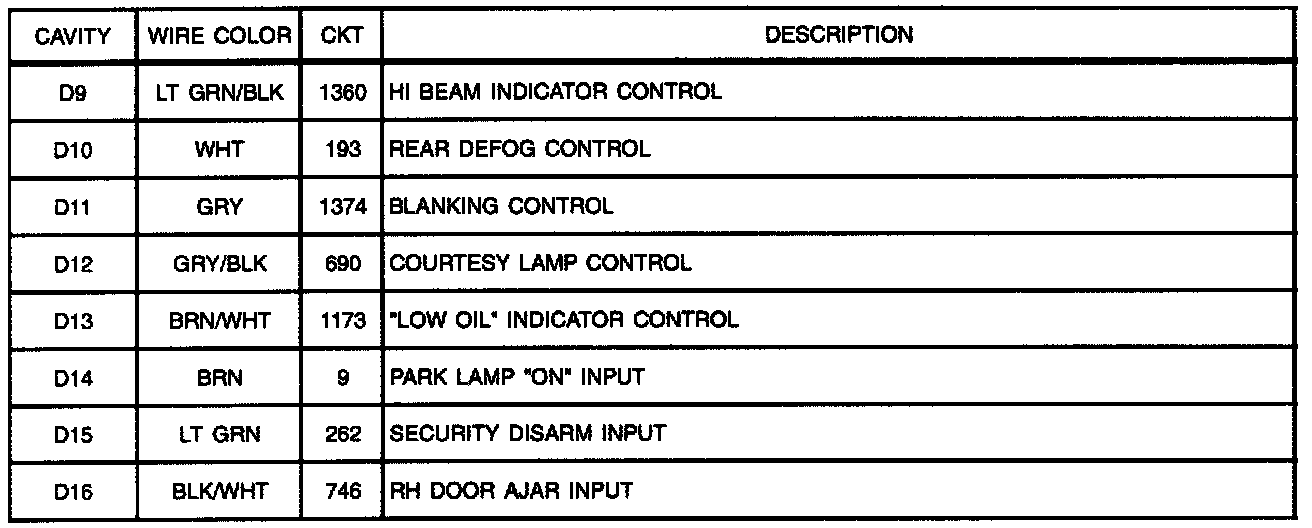

Central Control Module (CCM): C1 (Part 2 Of 2):
