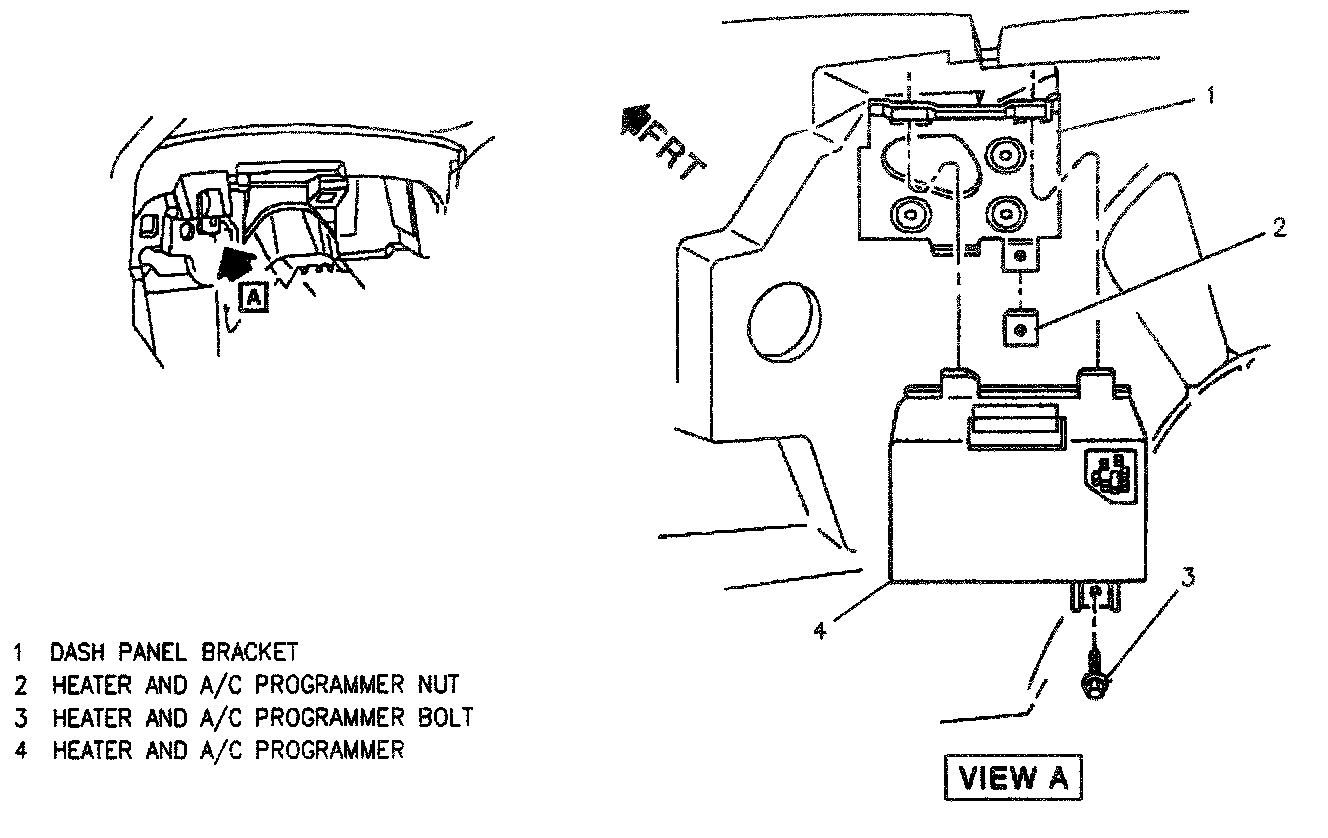

A/C Programmer (C68) or Solenoid Valve Assembly (C60)

A/C PROGRAMMER (RPO C68) OR SOLENOID VALVE ASSEMBLY (RPO C60)






REMOVE OR DISCONNECT
1. Negative battery cable.
2. Instrument Panel (I/P) lower left-hand trim panel.
3. Programmer attaching bolts.
4. Programmer electrical connection.
5. Air door actuator vacuum harness.
6. Programmer.

INSTALL OR CONNECT
1. Programmer electrical connection.
2. Air door actuator vacuum harness.
3. Programmer and attaching bolts.
Tighten A/C Programmer attaching bolt to 6 Nm (53 in. lb.).

4. Instrument Panel (I/P) lower left-hand trim panel.
5. Negative battery cable.
