Dimension & Clearance Specifications - Engine

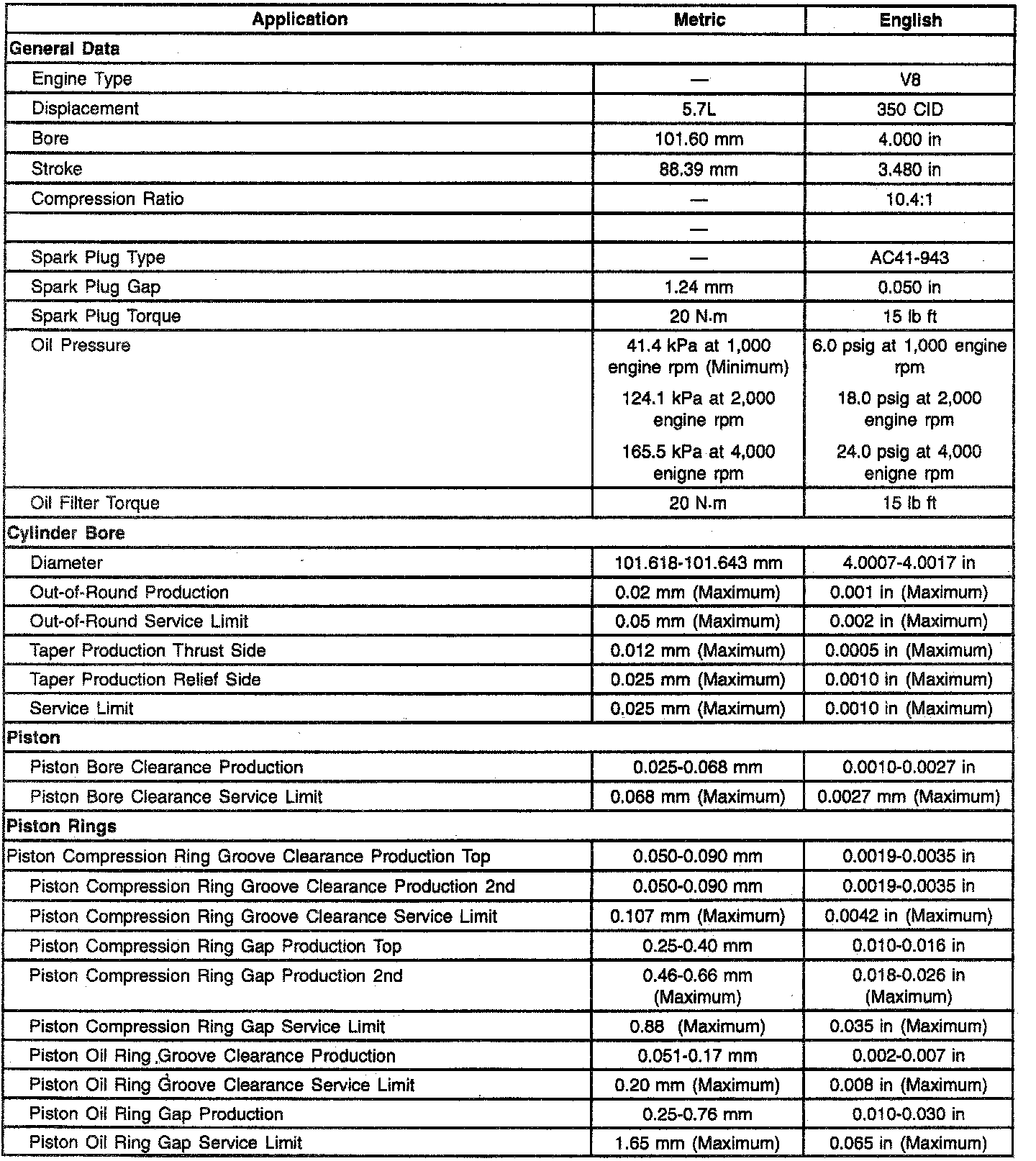

General Data, Cylinder Bore, Piston, Piston Rings:

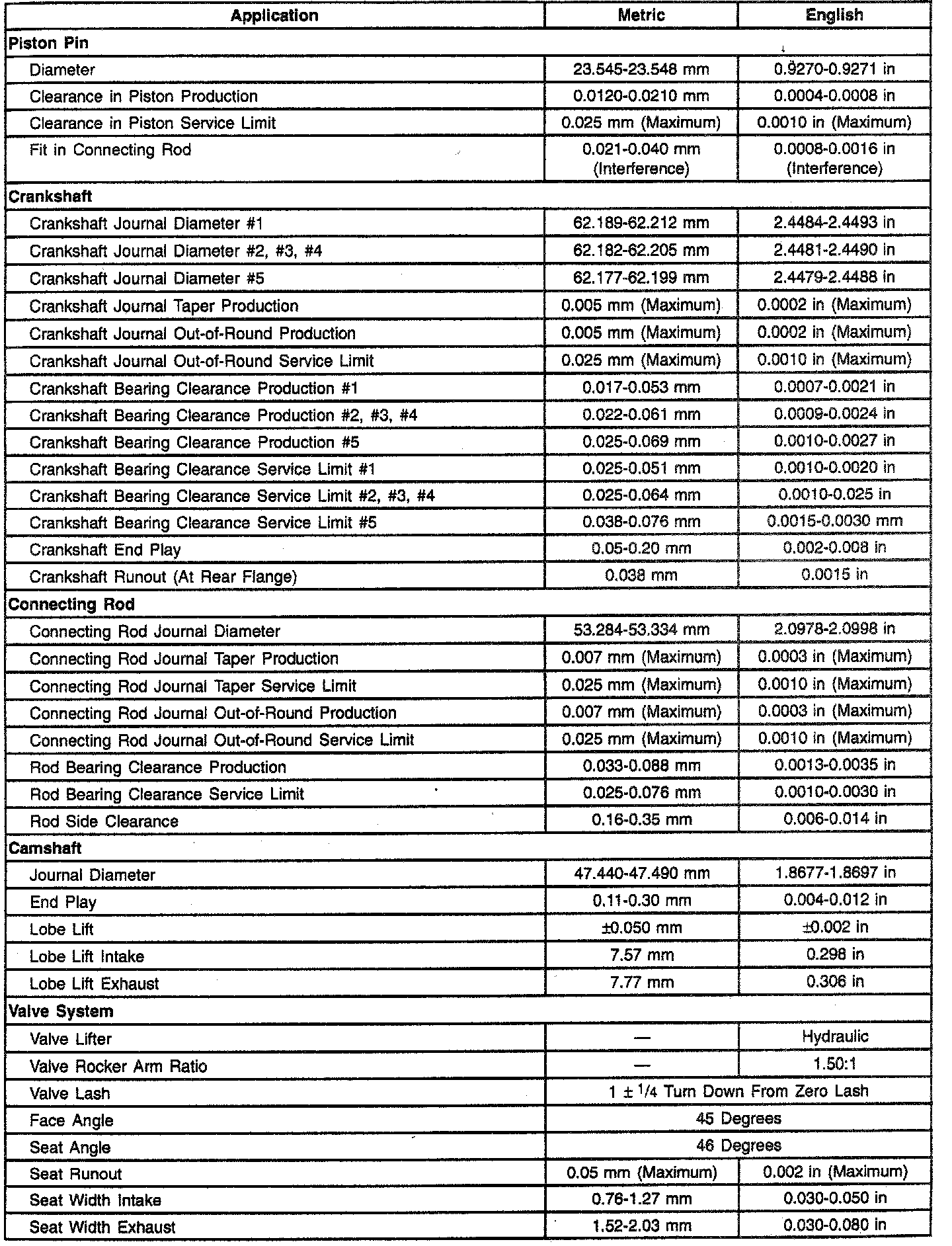

Piston Pin, Crankshaft, Connecting Rod, Camshaft, Valve System:



Valve System:
