Accumulator: Service and Repair

REMOVE OR DISCONNECT
1. Raise and support the vehicle.
2. Oil pan.
3. Oil strainer and O-ring seal.

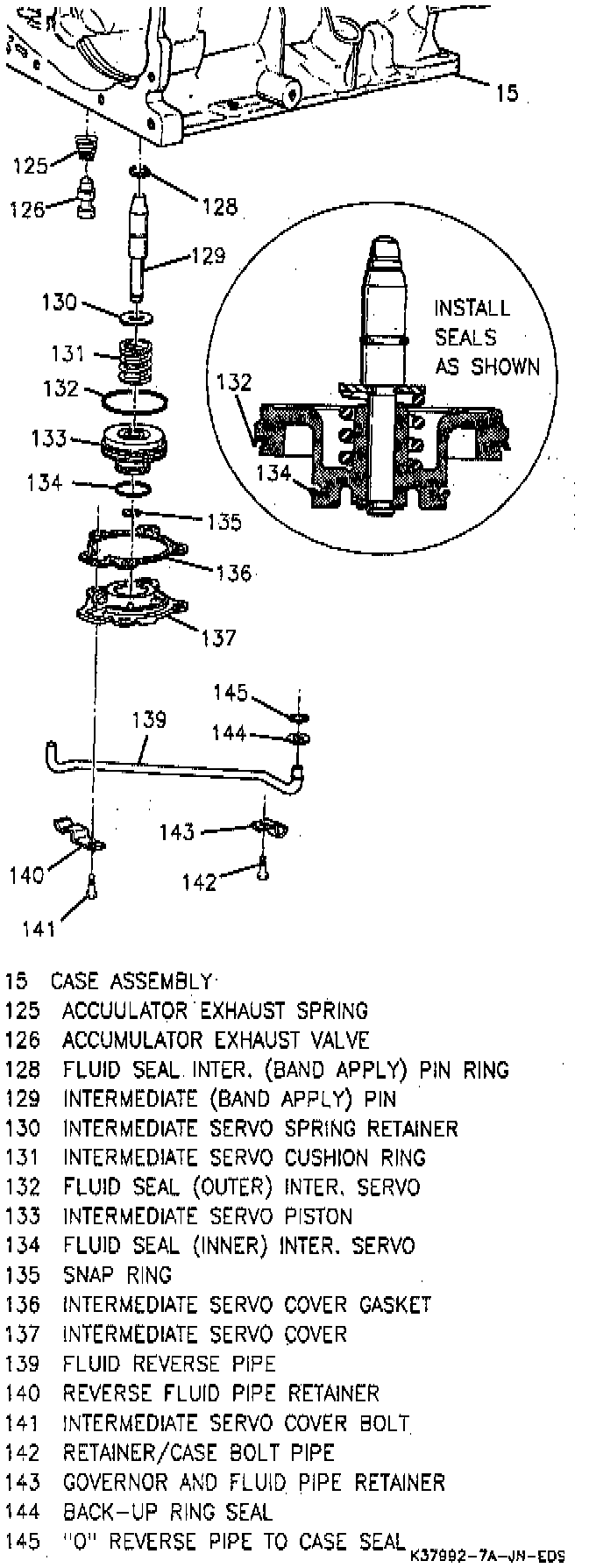

4. Reverse oil pipe brackets.
5. Intermediate servo cover and gasket.
6. Third accumulator valve and spring.
7. Intermediate servo assembly.

INSTALL OR CONNECT
1. Intermediate servo assembly.
2. Third accumulator valve and spring.
3. Servo cover with a new gasket.
4. Reverse oil pipe brackets.
5. Oil strainer with a new seal.
6. Oil pan.
7. Lower vehicle.

Adjust
- Oil level. Refer to "Transaxle Oil Level Checking Procedure."
