Windshield Washer Pump: Service and Repair

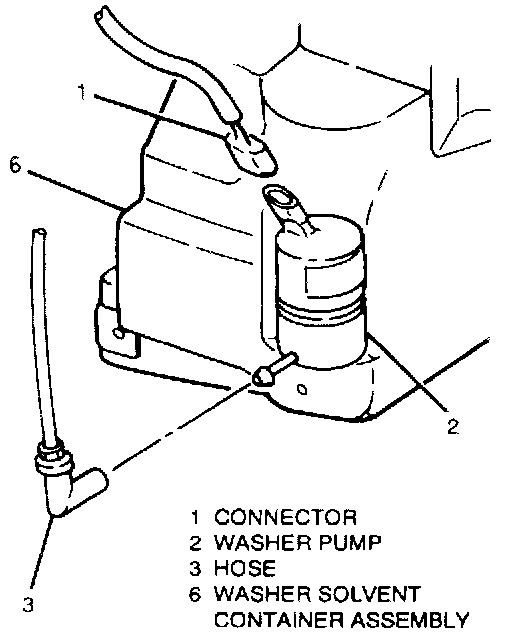

Description:

Remove or Disconnect
1. Negative battery cable from battery
2. Connector (1) from washer pump (2).
3. Hose (3) from washer pump (2).
4. Washer pump (2) from washer solvent container assembly (6).
A. Pull top of washer pump (2) out from side of washer solvent container assembly (6).
B. Pull washer pump (2) up out of washer solvent container assembly (6).

Install or Connect
1. Washer pump (2) in washer solvent container assembly (6).
A. Push washer pump (2) down into washer container assembly (6) completely.
B. Push top of washer pump (2) into side of washer solvent container assembly (6).
2. Hose (3) to washer pump (2).
3. Connector (1) to washer pump (2).
4. Negative battery cable to battery.
