Power Seat Switch
Power Seat Switch

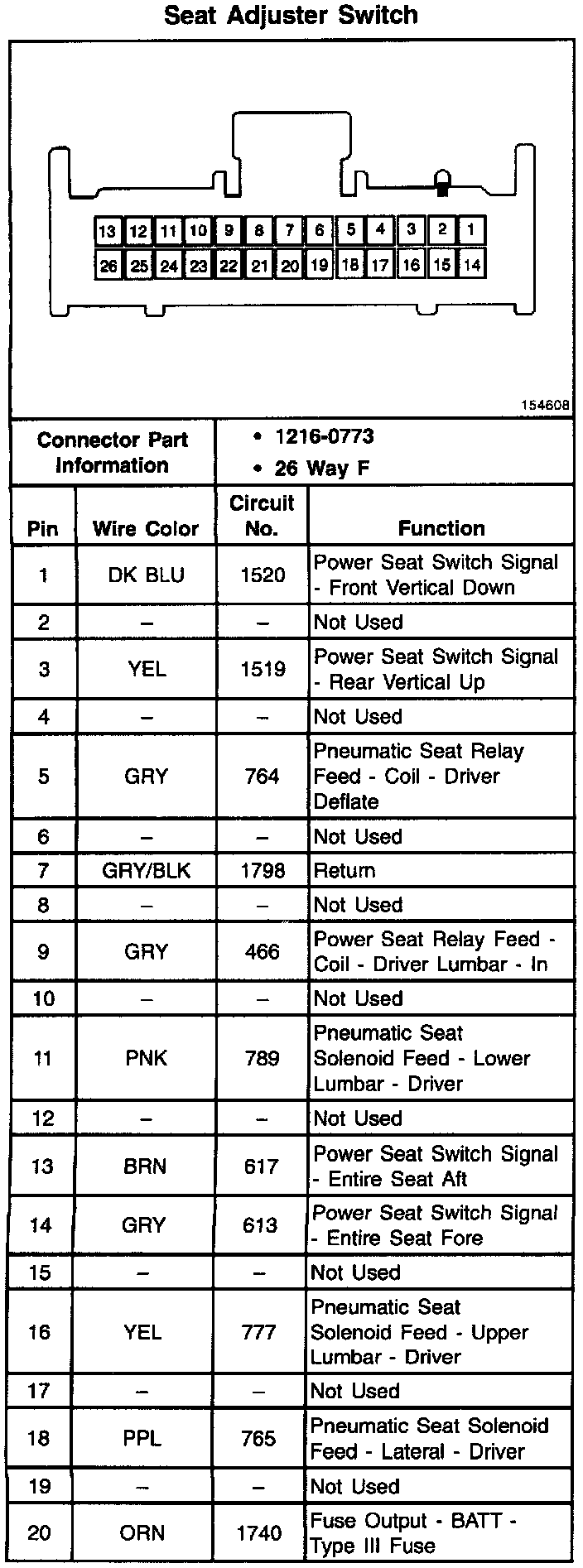

Seat Adjuster Switch (Part 1 Of 2):

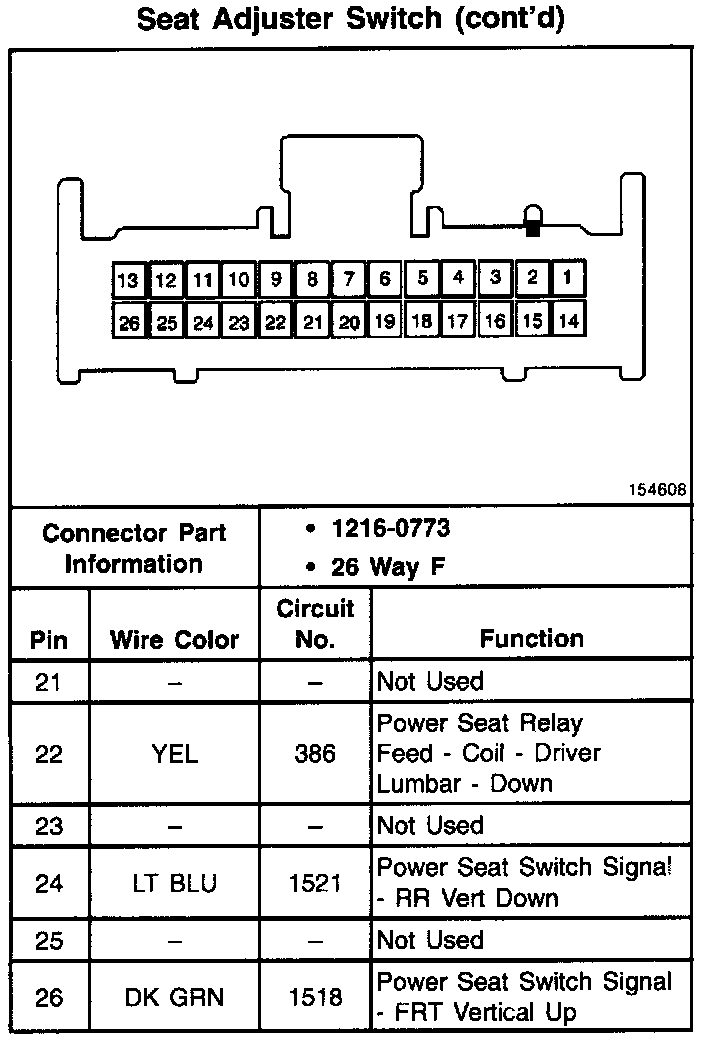

Seat Adjuster Switch (Part 2 Of 2):
