Radio/Stereo
Radio/Stereo

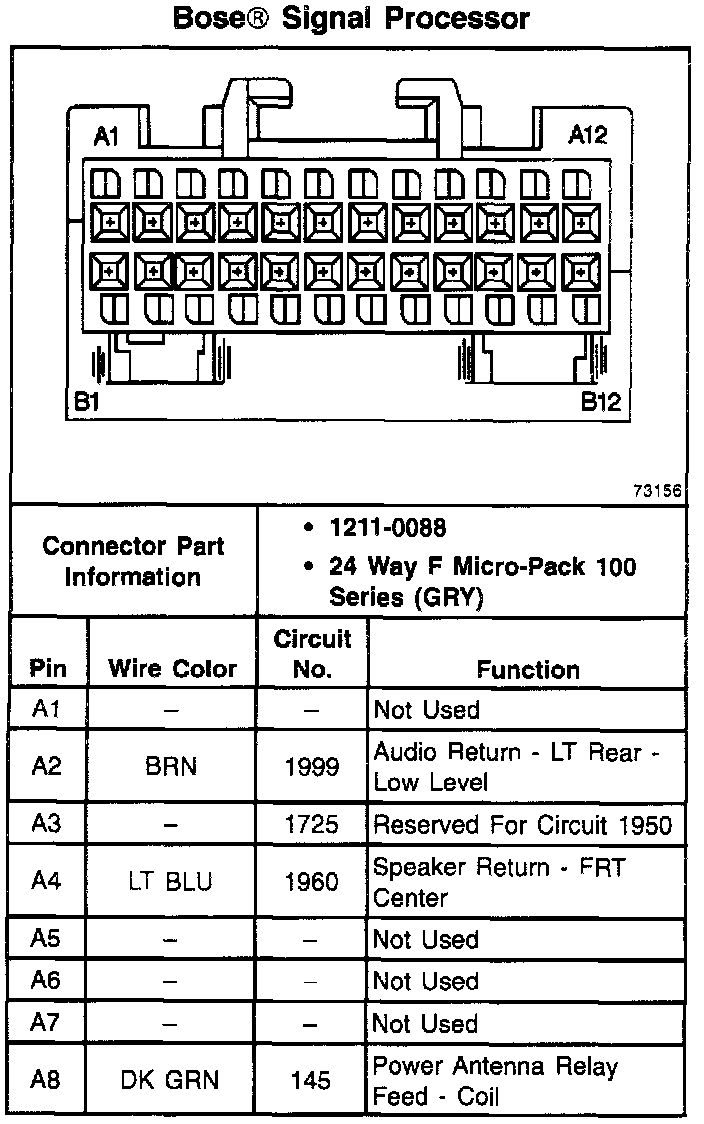

Bose (R) Signal Processor (Part 1 Of 2):

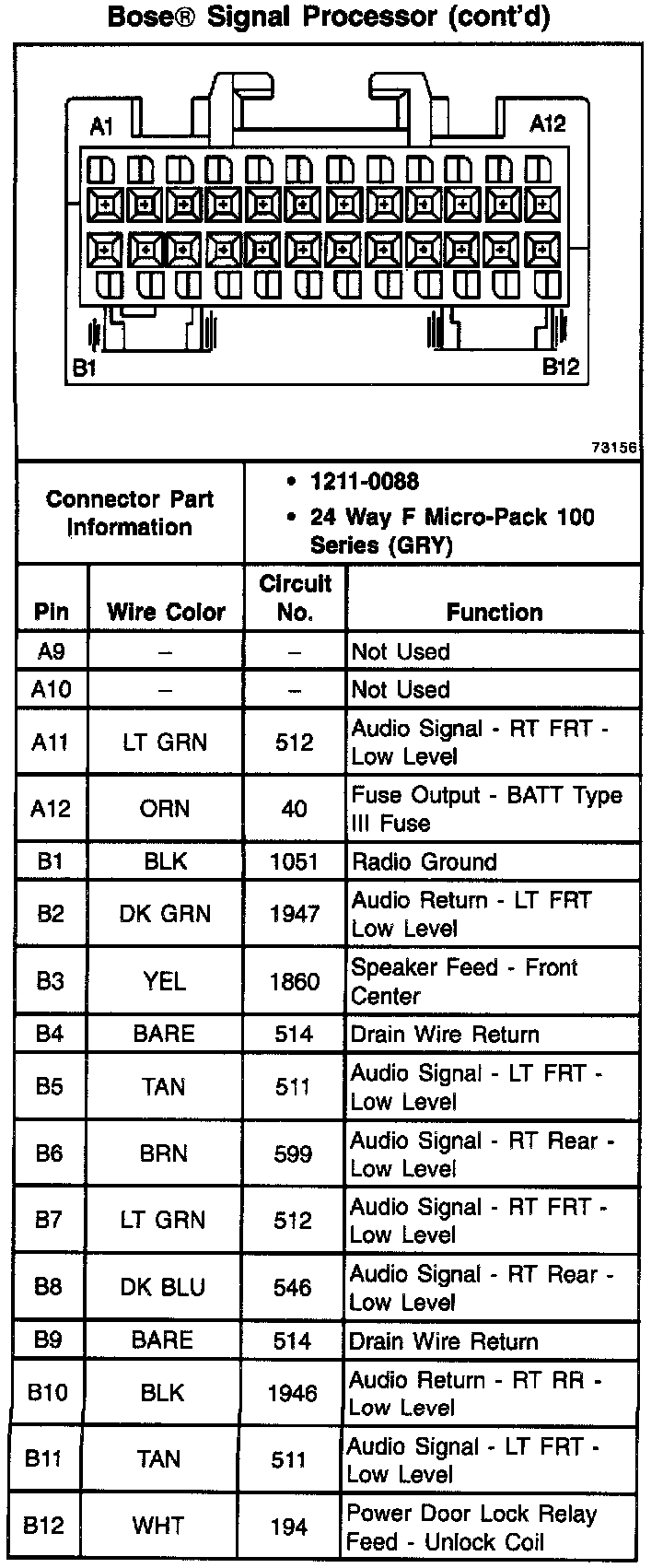

Bose (R) Signal Processor (Part 2 Of 2):

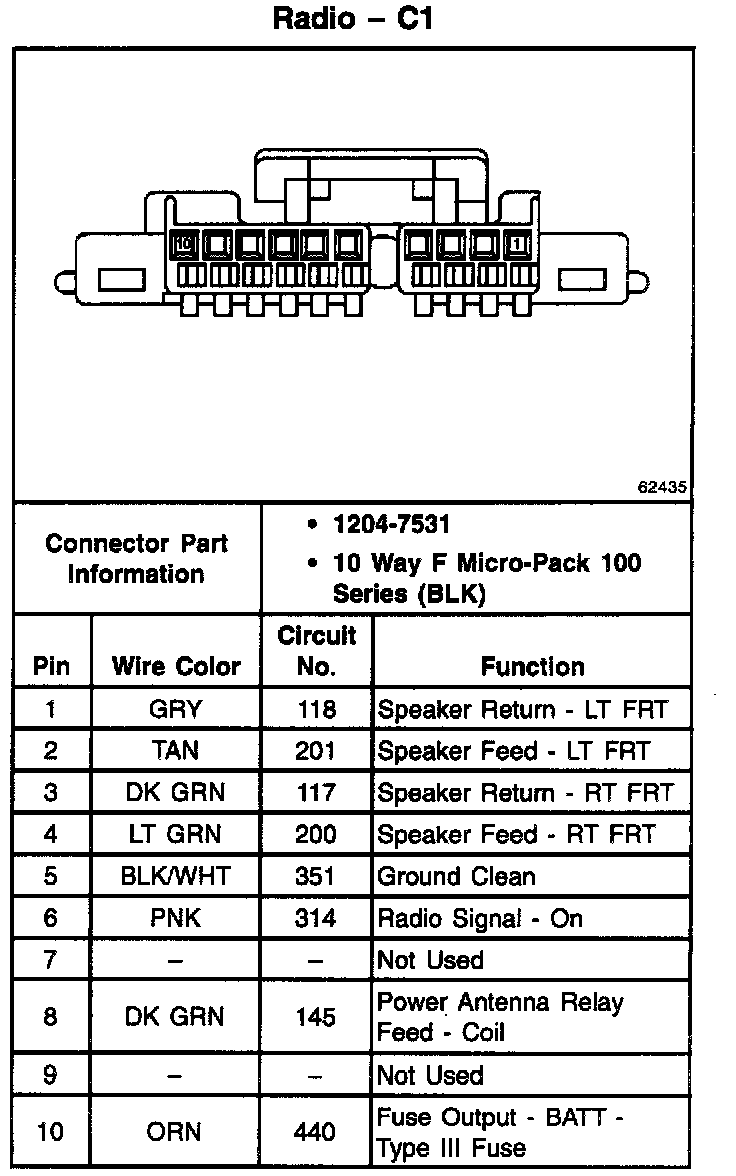

Radio - C1:

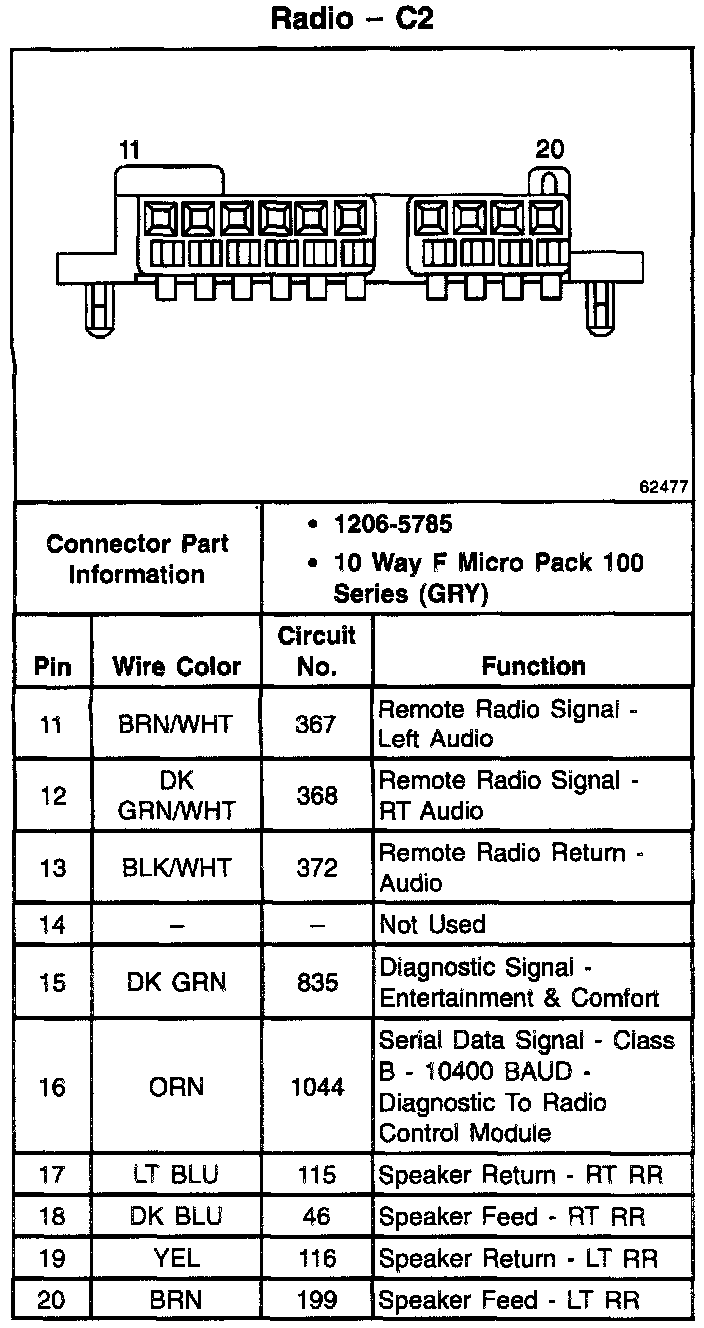

Radio - C2:

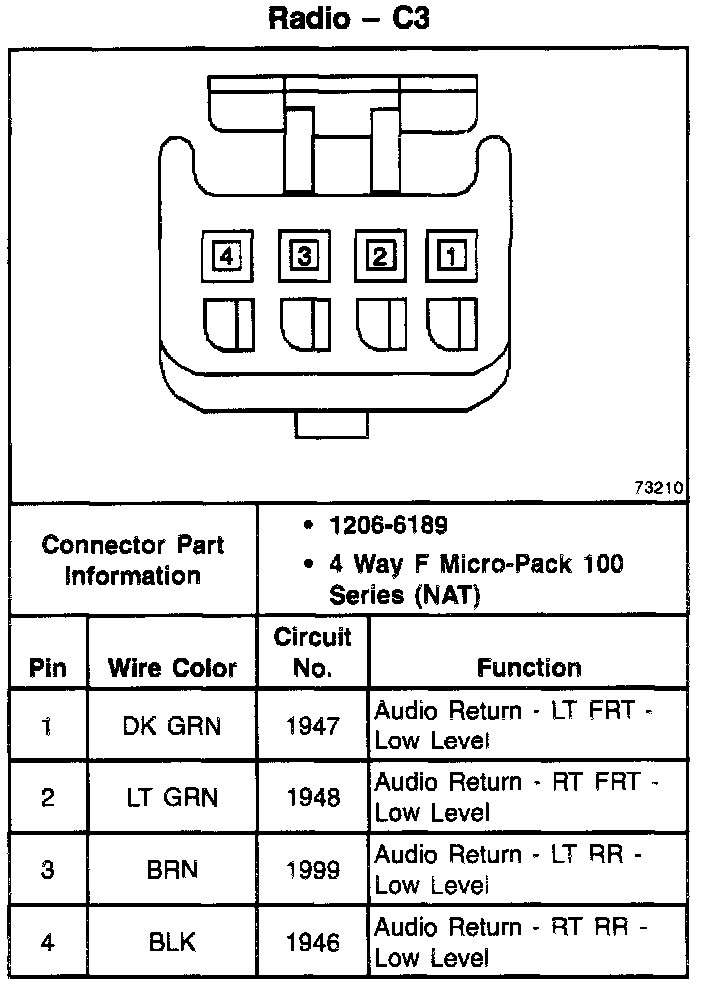

Radio - C3:

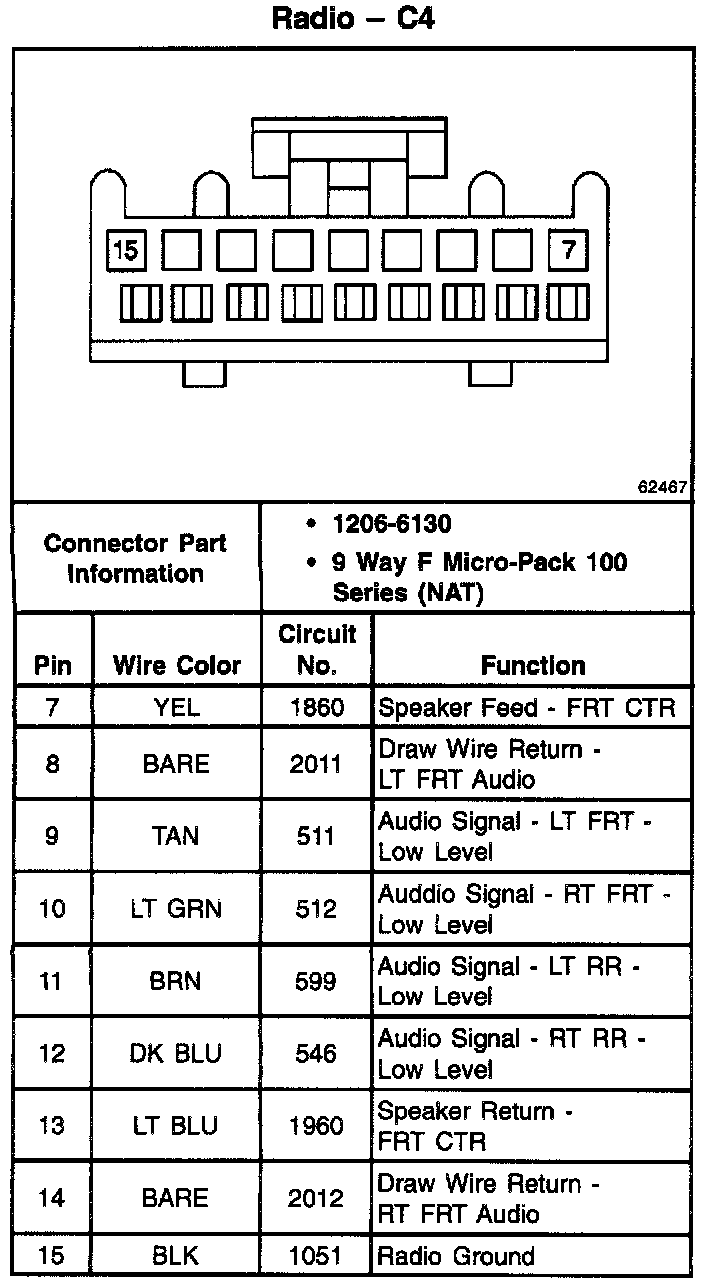

Radio - C4:
