Fuel Door, Hatch and Rear Fog Lamp Control
Fuel Door, Hatch and Rear Fog Lamp Control

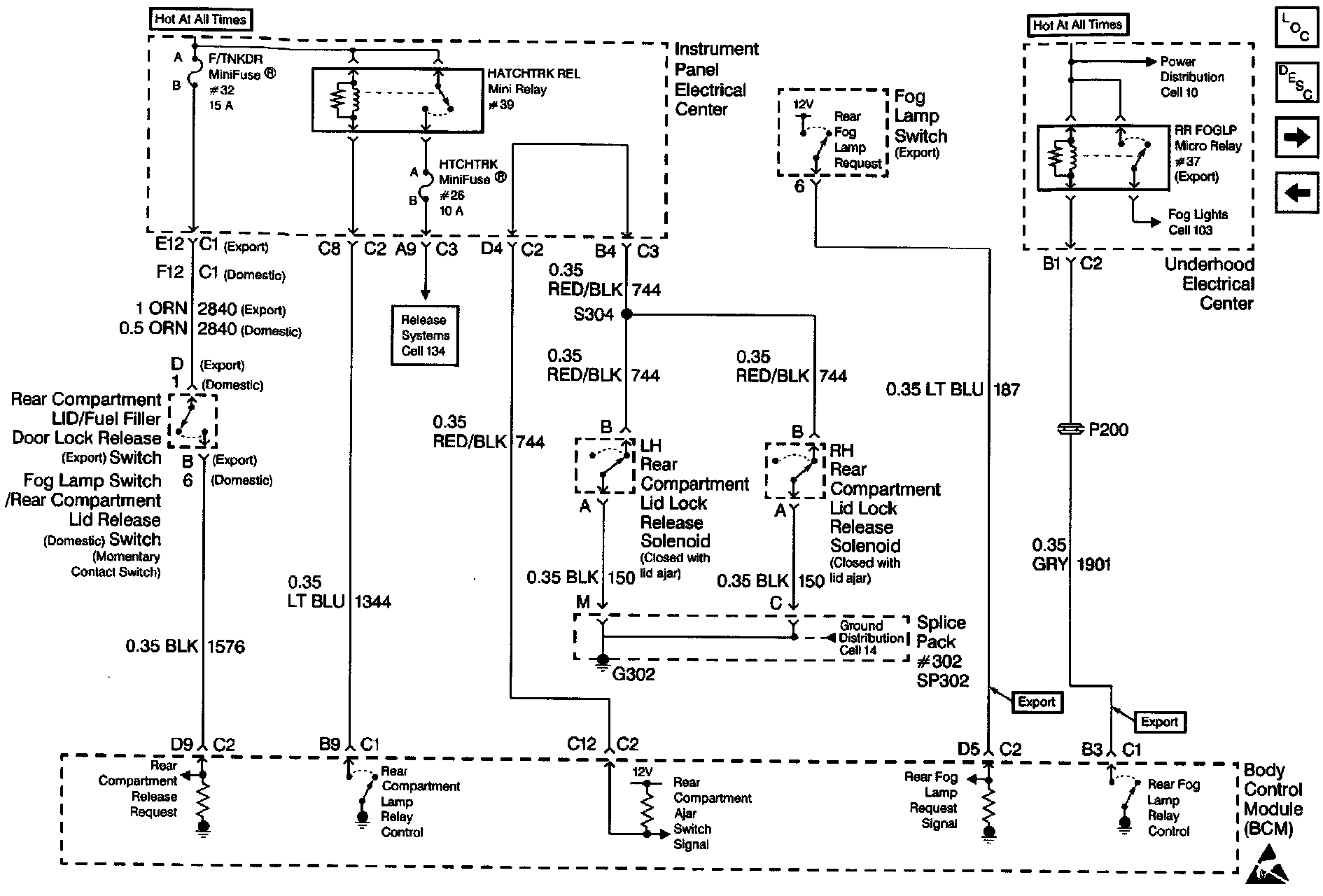

Body Control Module Schematics (Fuel Door, Hatch And Rear Fog Lamp Control):
