Frontal SIR System Remove or Disconnect

REMOVAL PROCEDURE

1. Disable the SIR system. Refer to Air Bag(s) Arming and Disarming.
2. Remove the accessory trim plate.
3. Remove the heater and A/C control head.

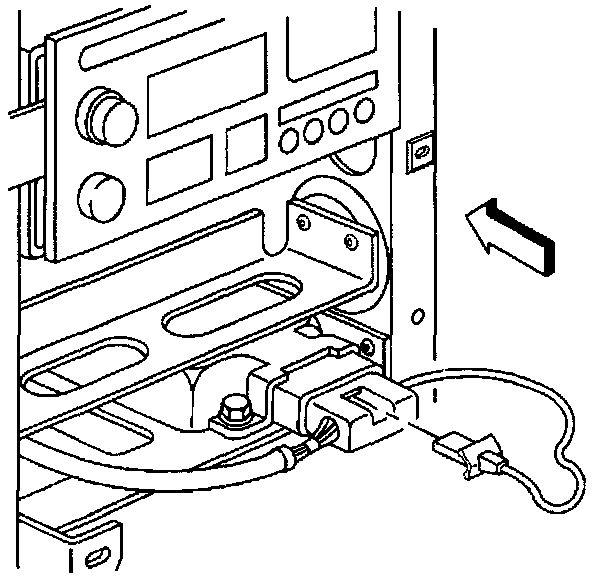

4. Remove the Connector Position Assurance (CPA) from the inflatable restraint Sensing and Diagnostic Module (SDM) harness connector.





5. Disconnect the SDM harness connector from the SDM.

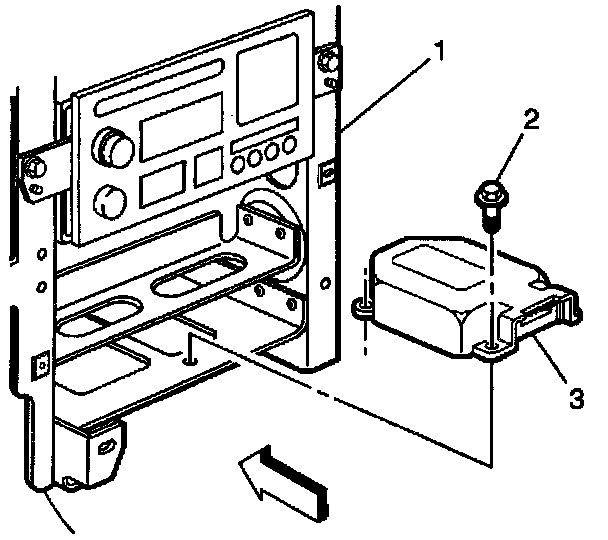

6. Remove the SDM (3) mounting fasteners (2).
7. Remove the SDM from the I/P center support system (1).
