Battery Tray Replacement

Battery Tray: Removal Procedure:

REMOVAL PROCEDURE
1. Remove the Battery.
2. Remove the bolts attaching the tray.
3. Remove the tray.

Battery Tray: Installation Procedure:

INSTALLATION PROCEDURE

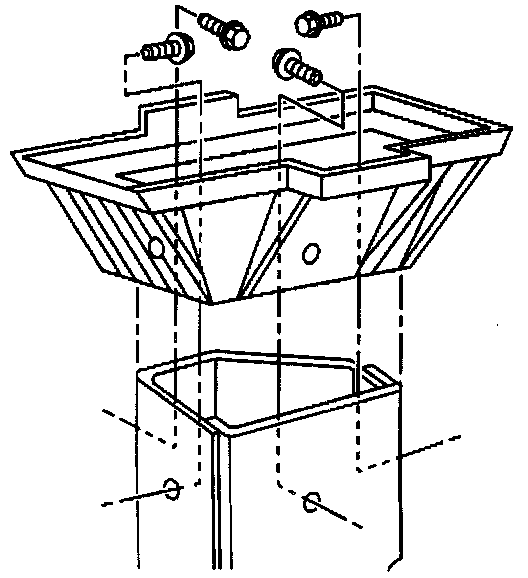

1. Position the battery tray to the battery support.
2. Install the bolts attaching the tray.

Tighten
Tighten the battery tray bolts to 31 N.m (23 lb ft).

NOTE: Refer to Fastener Notice in General Information.

3. Install the battery.
