Air Injection Pump Relay: Service and Repair

REMOVAL

1. Turn OFF the ignition.

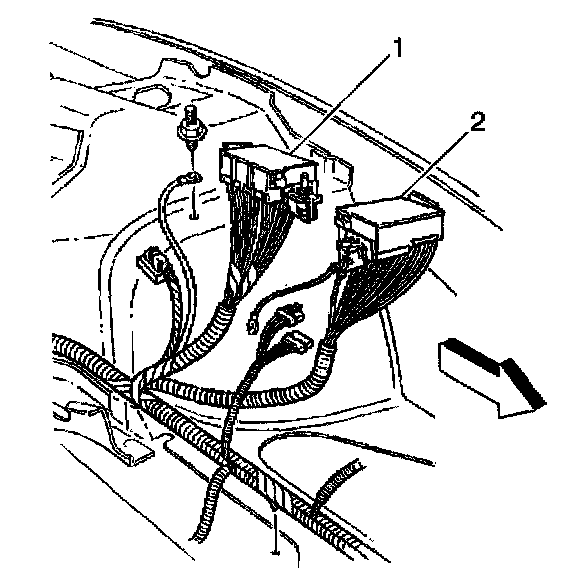

2. Remove the cover to the Underhood Electrical Center #2 (2).
3. Remove the AIR pump relay.

INSTALLATION

1. Turn OFF the ignition.
2. Install the AIR pump relay.
3. Install the cover to the Underhood Electrical Center #2 (2).
