Negative Battery Cable Replacement

REMOVAL PROCEDURE




1. Remove the battery.
2. Remove the battery negative cable nut.

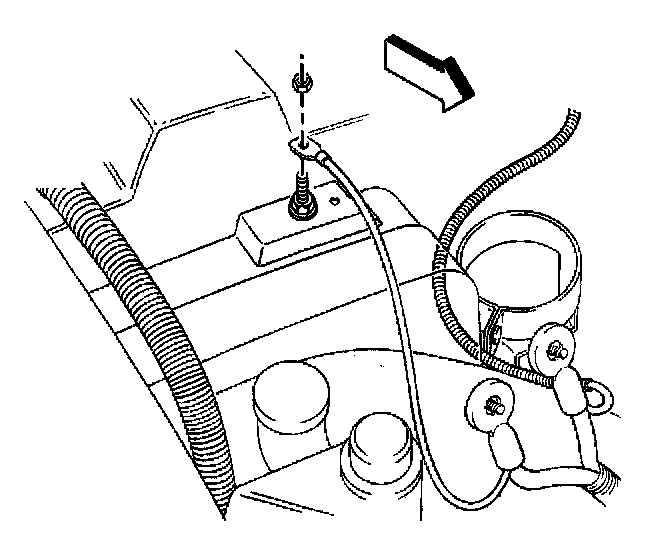

3. Remove the ground lead from the wheelhouse stud.

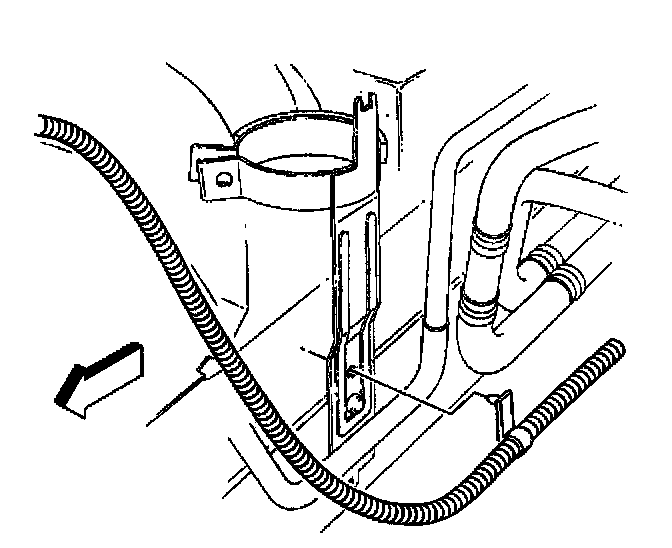

4. Remove the battery cable from the rosebud clip at the accumulator bracket.




5. Remove the negative cable to engine block bolt (1).
6. Remove the ground lead from the block.
7. Remove the negative battery cable from the conduit.

INSTALLATION PROCEDURE




1. Install the negative cable to the conduit.
2. Install the ground lead and negative cable to the engine block bolt (1).

Tighten
Tighten the negative cable to engine block bolt (1) to 32 N.m (24 lb ft).




3. Install the battery cable to the rosebud clip at the accumulator bracket.




4. Install the ground lead to the wheelhouse stud.
5. Install the negative cable nut.

Tighten
Tighten the negative cable nut to 6 N.m (53 lb in).

6. Install the battery.
