Modulator Gear Cover Replacement

REMOVAL PROCEDURE

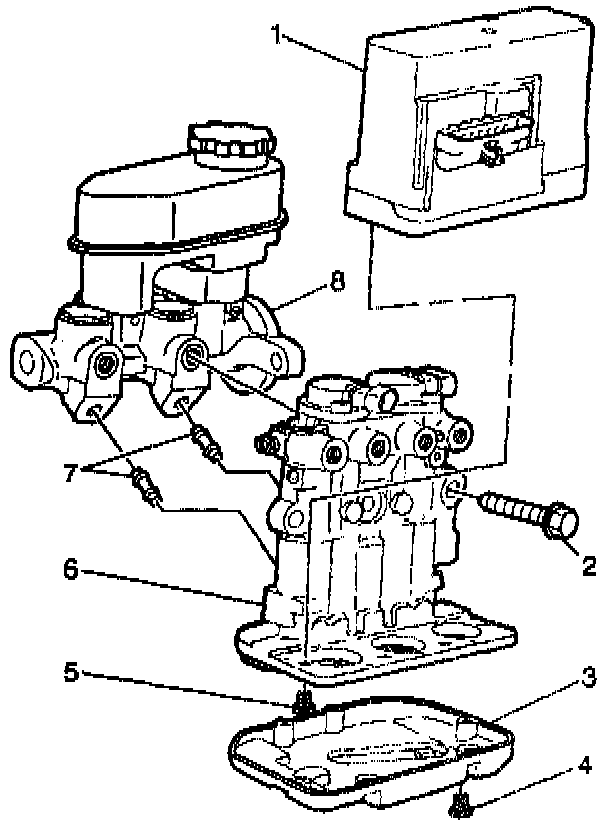

1. Remove the Torx head screws (4) that attach the gear cover (3).
2. Remove the gear cover (3).





INSTALLATION PROCEDURE
1. Install the gear cover (3) onto the modulator/master cylinder assembly.
2. Install the Torx head screws (4).
^ Tighten the Torx screws to 4 Nm (36 inch lbs.).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.
