Connector Views
>>
Courtesy Lamp
>>
Interior Light Switch
>>
Courtesy/Reading Lamp
Courtesy/Reading Lamp

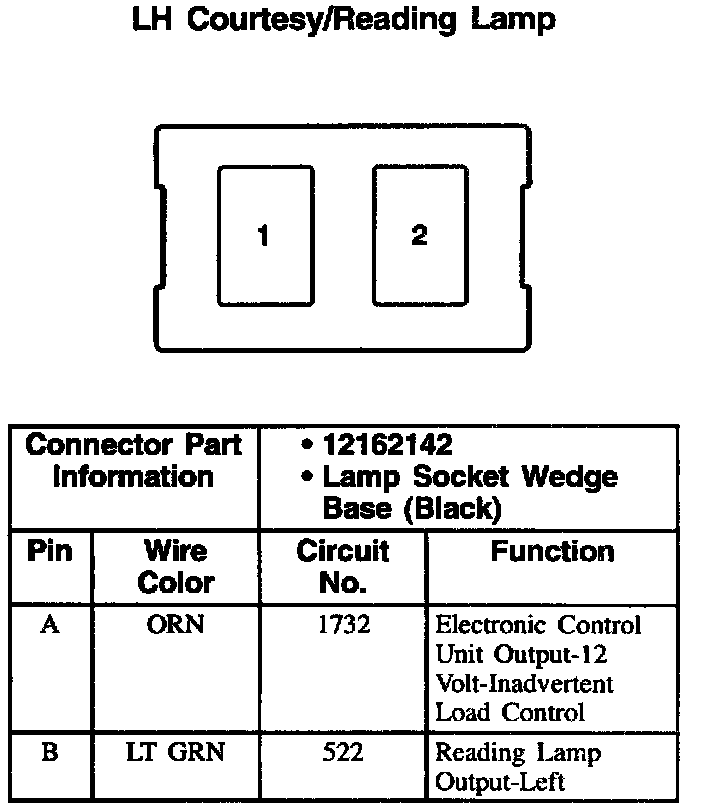

LH Courtesy/Reading Lamp:

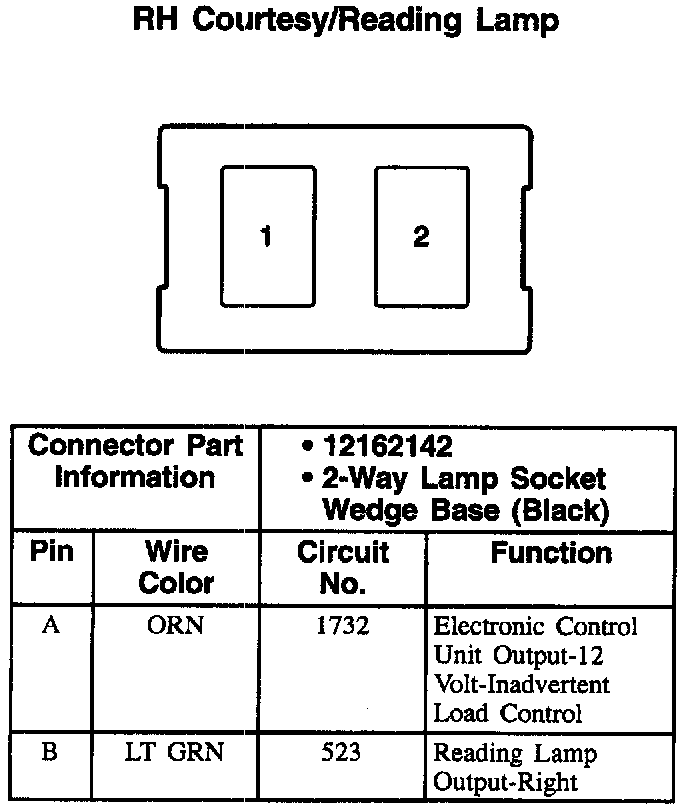

RH Courtesy/Reading Lamp:
