Camshaft Removal

CAMSHAFT REMOVAL

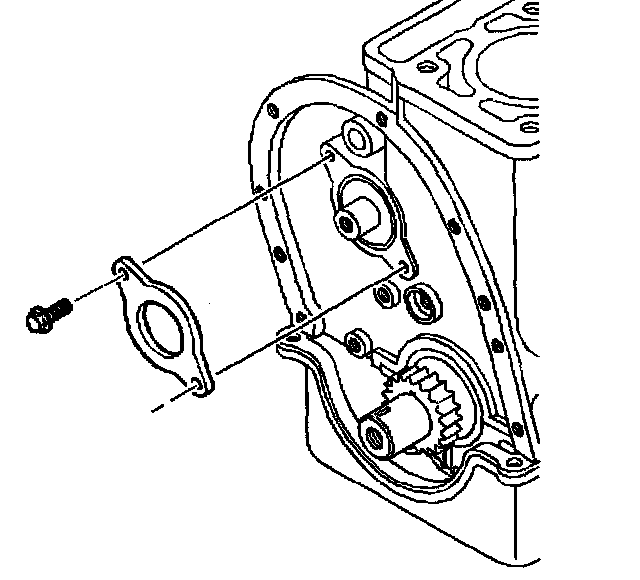

1. Remove the camshaft thrust plate bolts.

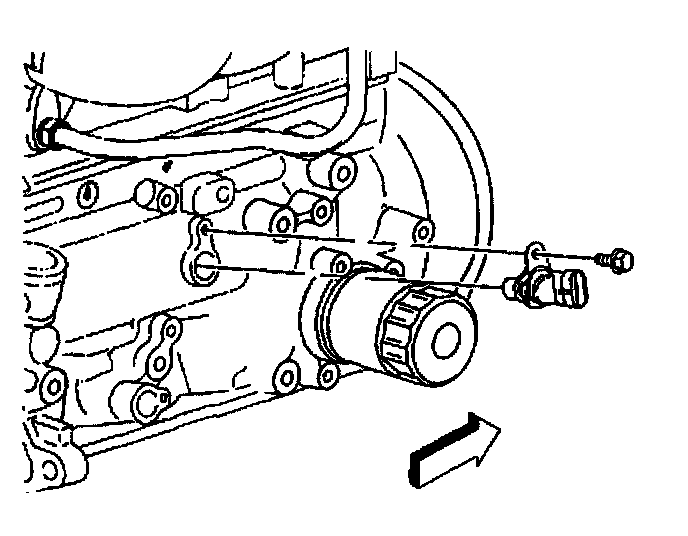

2. Remove the camshaft position sensor.

IMPORTANT: Do not damage the camshaft bearings while removing the camshaft.

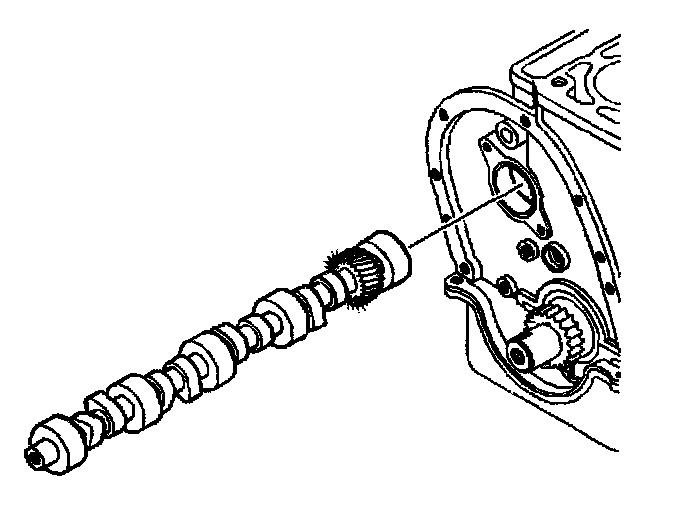

3. Remove the camshaft.
