Torque Converter: Service and Repair

REMOVAL PROCEDURE





1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Remove the transmission assembly from the vehicle. Refer to Transmission Replacement.

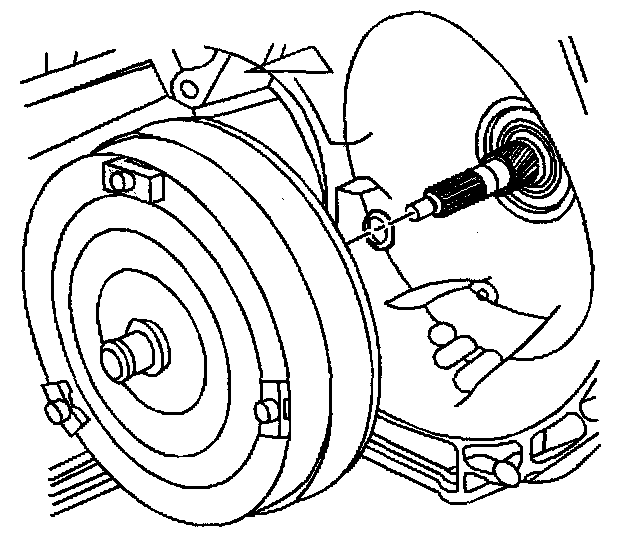

3. Remove the torque convertor assembly from the transmission.

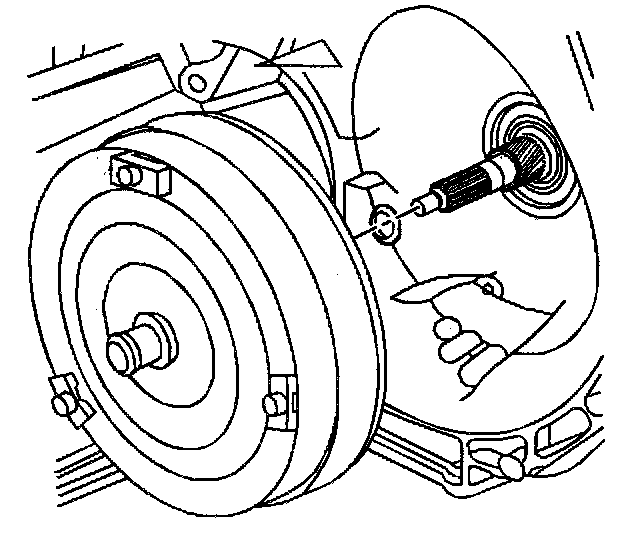

4. Remove the torque convertor O-ring seal from the end of the turbine shaft. Use a screwdriver.

INSTALLATION PROCEDURE

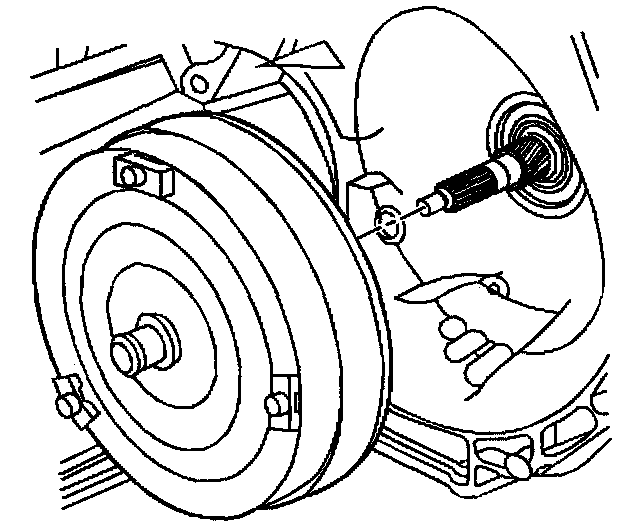

1. Install a new torque convertor 0-ring seal on the end of the turbine shaft.

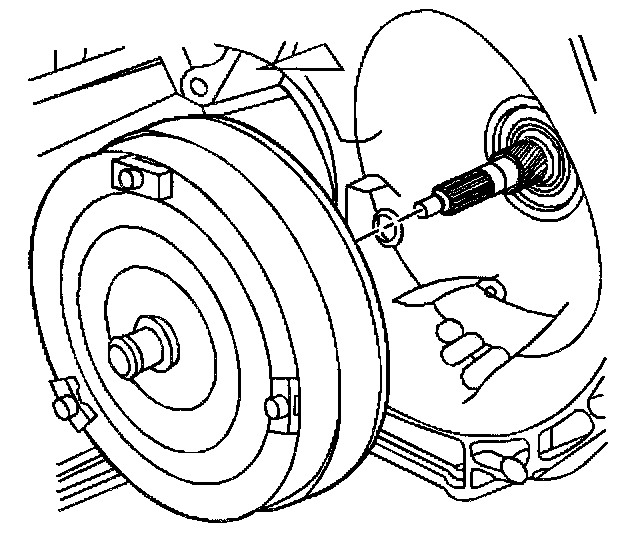

2. Install the torque convertor onto the transmission.
3. Install the transmission into the vehicle. Refer to Transmission Replacement.
4. Connect the negative battery cable.
5. Adjust the oil level.
