Brake Fluid Level Sensor/Switch: Service and Repair

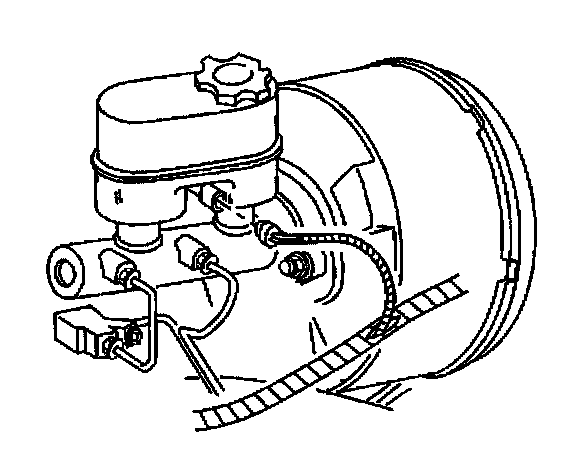

REMOVAL PROCEDURE





1. Disconnect the electrical connector from the brake fluid level switch.
2. Depress the retaining tabs to remove the fluid level switch from the master cylinder.

INSTALLATION PROCEDURE





1. Install the brake fluid level switch to the master cylinder.
2. Connect the electrical connector to the brake fluid level switch.
