Door Switch
Door Switch
Door Ajar Indicator Switch:

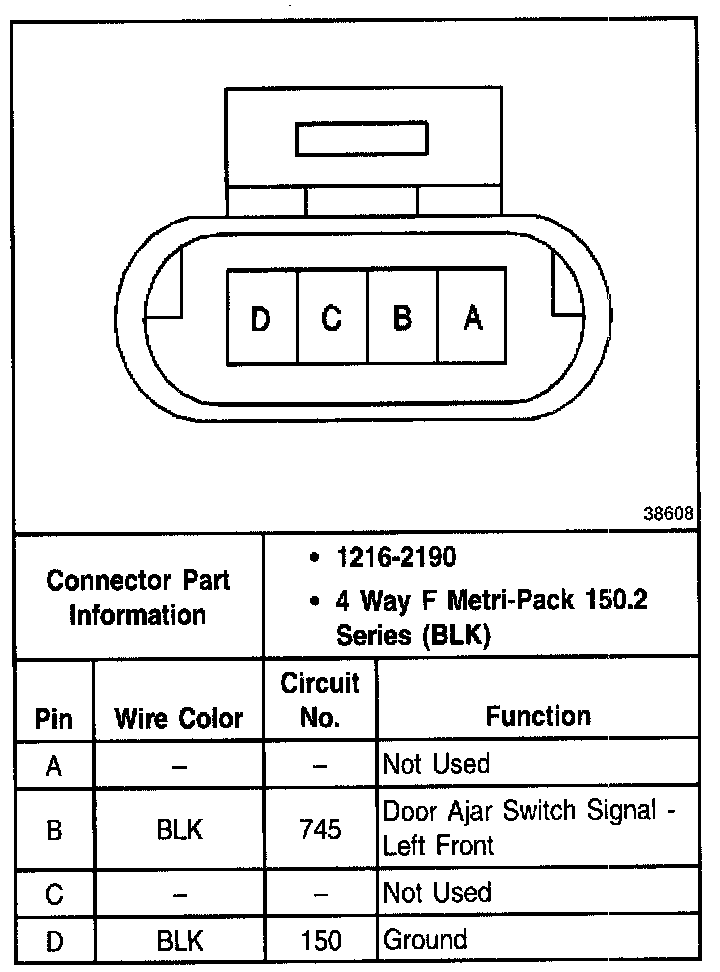

LH Door Ajar Indicator Switch:

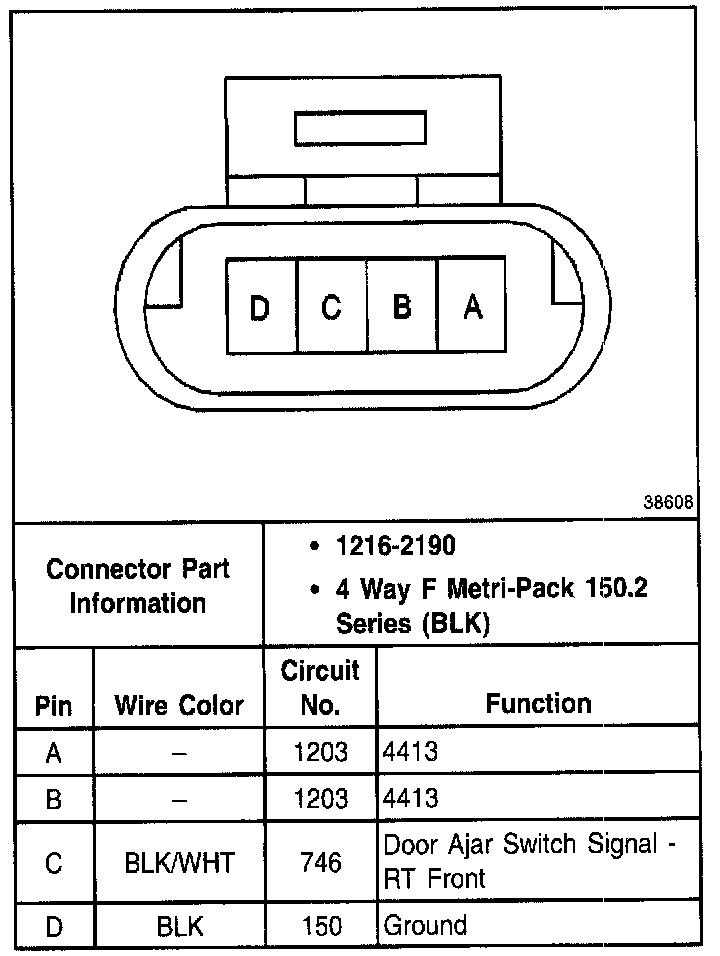

RH Door Ajar Indicator Switch:
